Carrier 42QHC012D8S Series - Dimensions

11
4. Dimensions

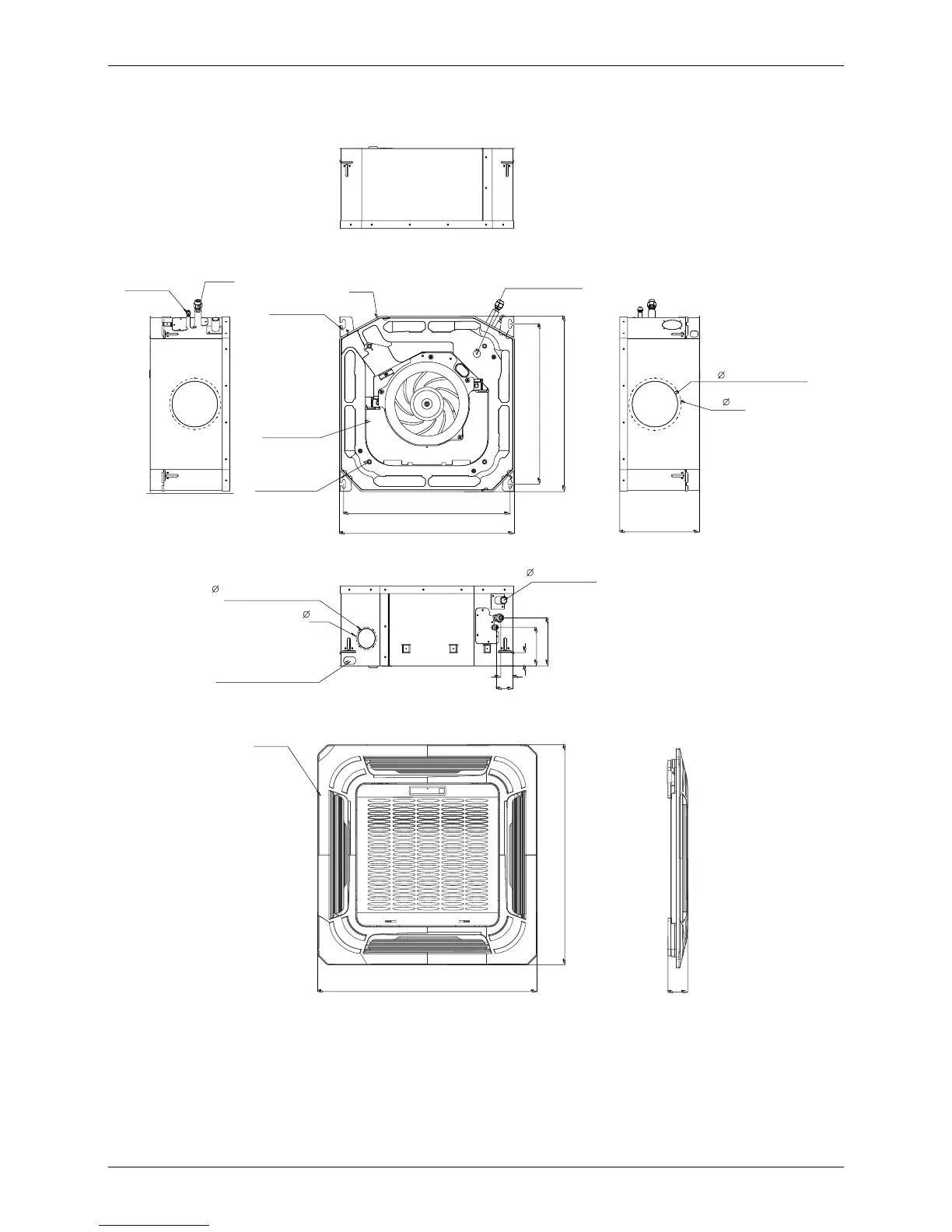

3.1 Four-way cassette type (compact):
Panel
E-parts box
Gas side
Liquid side
4-install hanger
Body
Wiring connection port
Drain pipe
32
Fresh air intake
65
570
545
570 523
260
647
647
50
150
Distribution duct
170
2-
2-
4-Screw hole
(for install panel)
Drain hole
( for Service )
75
156
125
68
40
44
