15

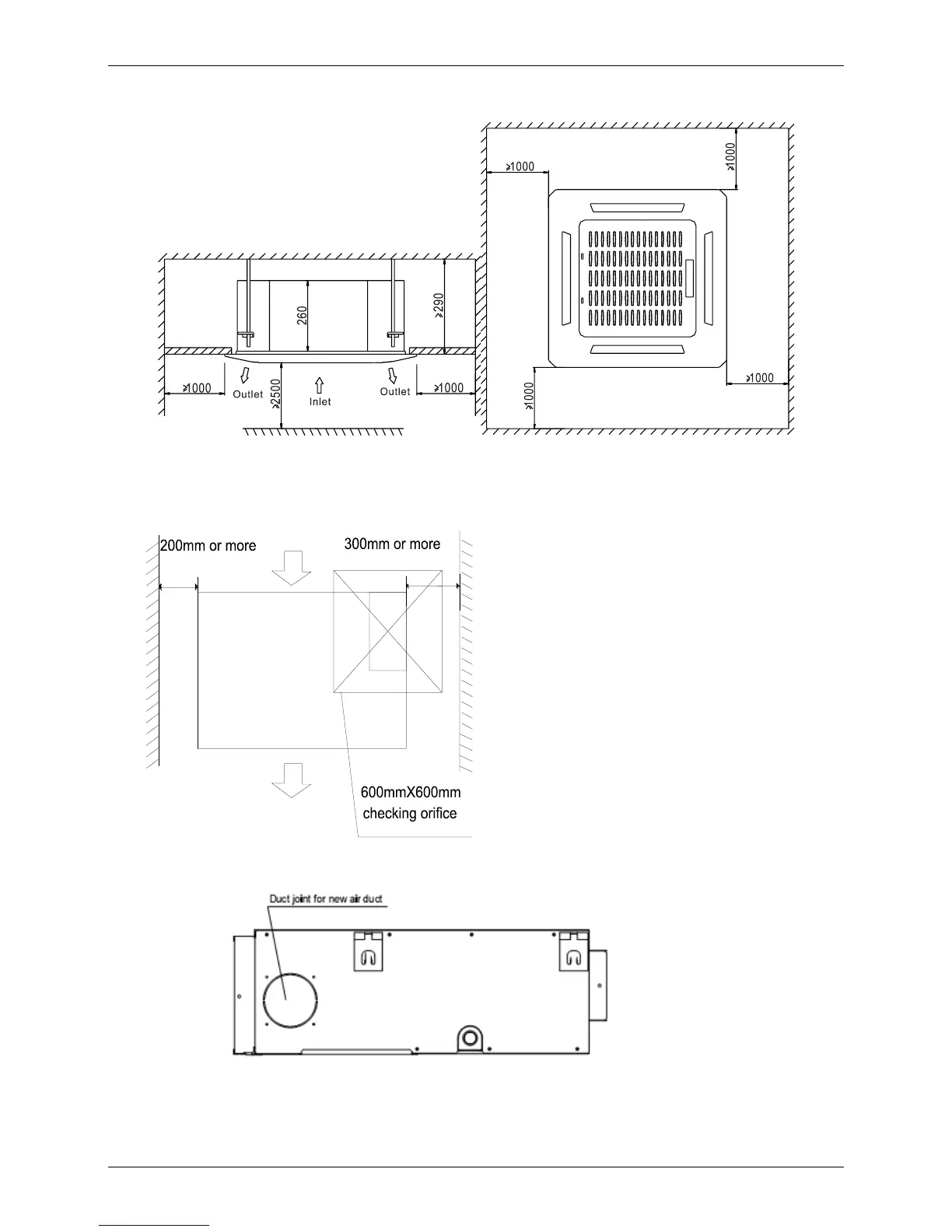

5. Service Space (unit: mm)
4.1 Four-way cassette (compact)
4.2 Ducted
Ensure enough space required for installation and maintenance.
All the indoor units reserve the hole to joint the fresh air pipe. The hole size as following:
