1" MIN.
2" MIN.
A88130
♦ These embossments are located on Large Cabinet Units (048-060 size only.)

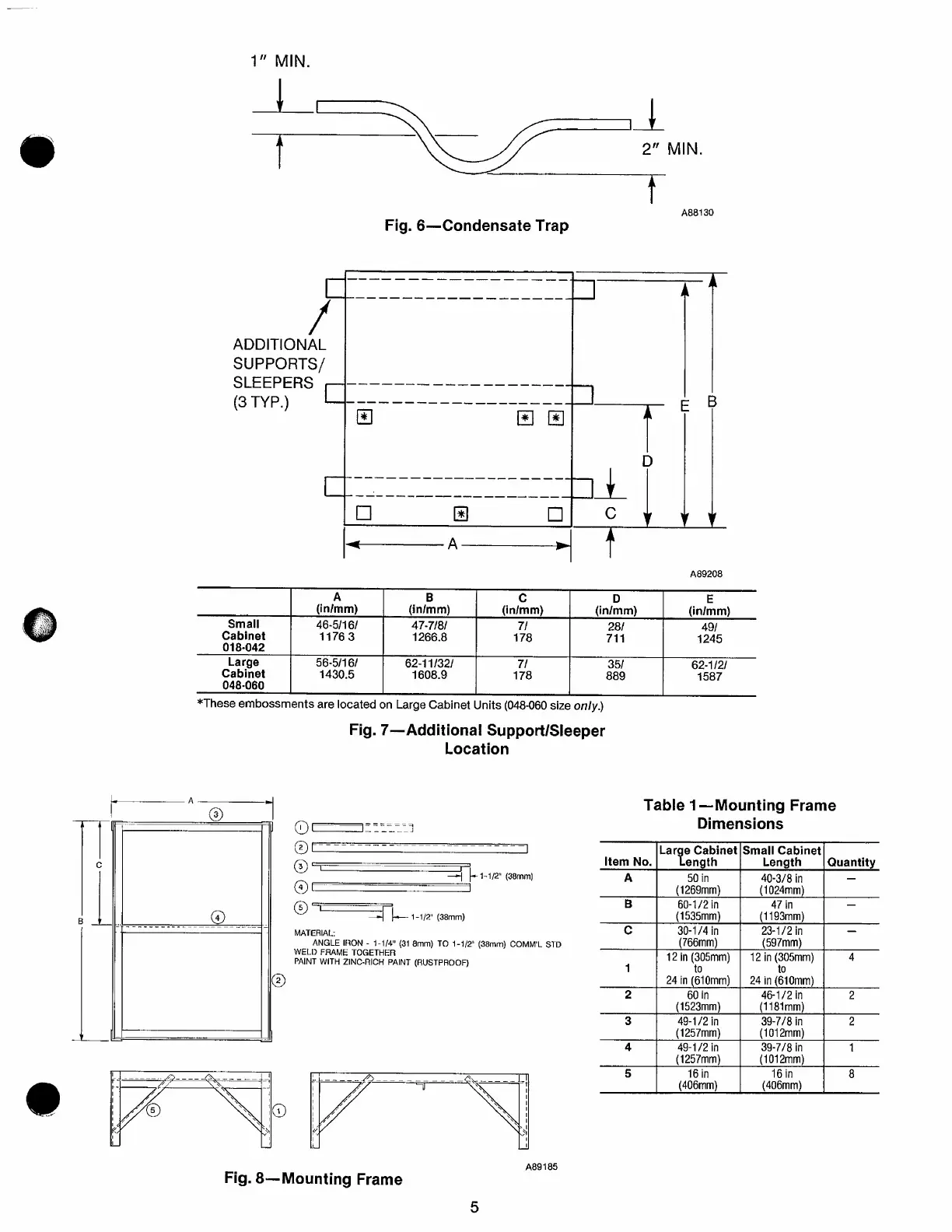

Fig. 7—Additional Support/Sleeper
Location
©E
©E
©^
® E
© ■ n
-=nk
1-1/2" (38mm)
1-1-
1/2" (38mm)
MATERIAL:
ANGLE IRON - 1-1/4" (31 8mm) TO 1-1/2" (38mm) COMM'L STD
WELD FRAME TOGETHER
PAINT WITH ZINC-RICH PAINT (RUSTPROOF)
Table 1—Mounting Frame
Dimensions
Item No.
Large Cabinet
Length
Small Cabinet
Length
Quantity
A
50 in
(1269mm)
40-3/8 in
(1024mm)
—
B
60-1/2 in
(1535mm)
47 in
(1193mm)
__
C
30-1/4 in
(766mm)
23-1/2 in
(597mm)
—
1
12 in (305mm)
to
24 in (610mm)
12 in (305mm)
to
24 in (610mm)
4
2
60 in
(1523mm)
46-1/2 in
(1181mm)
2
3
49-1/2 in
(1257mm)
39-7/8 in
(1012mm)
2
4
49-1/2 in
(1257mm)
39-7/8 in
(1012mm)
1
5 16 in
(406mm)
16 in
(406mm)
8
Fig. 8—Mounting Frame
5
