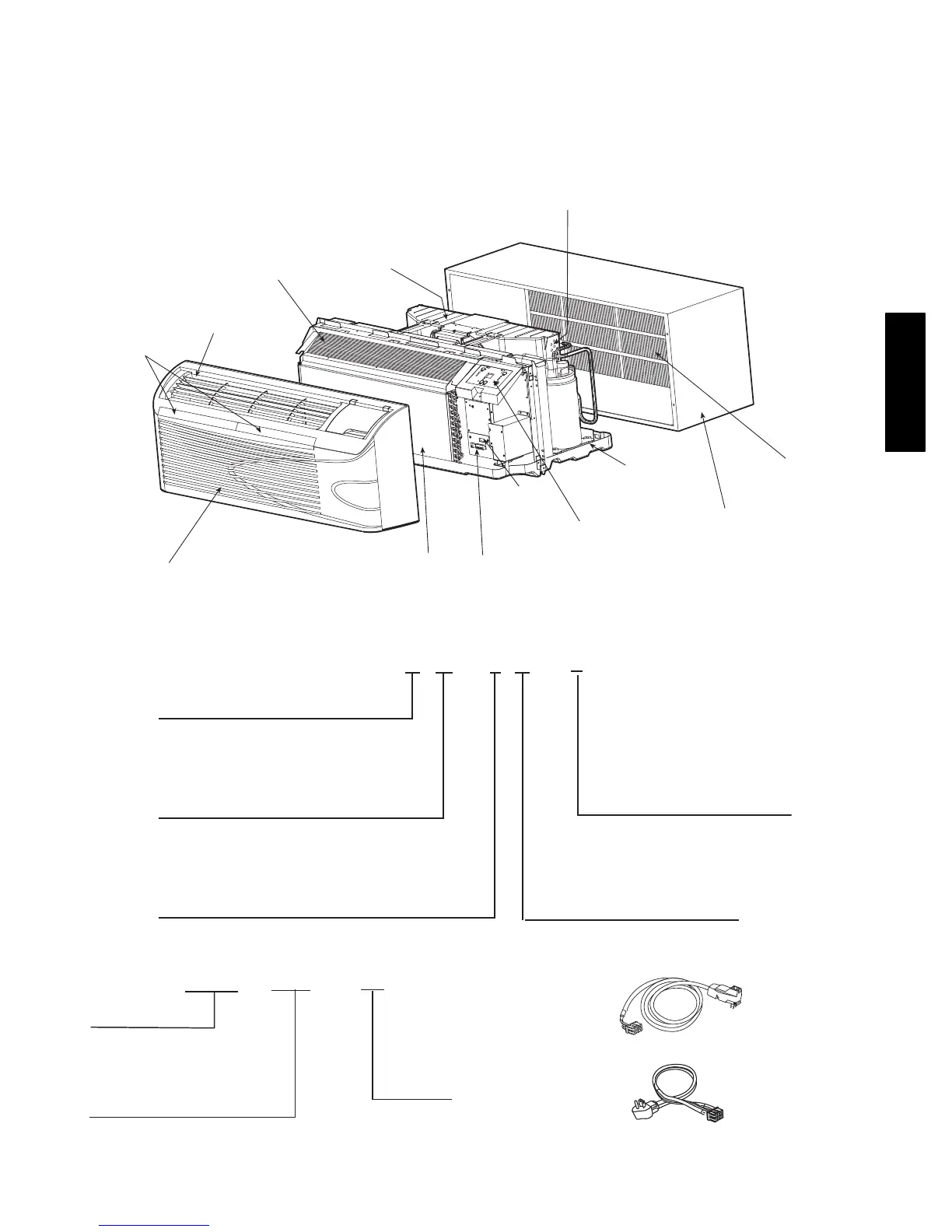

ORDERING DATA
For immediate assistance, call 1-- 800 -- 827 --7435 or contact your local Carrier dealer.
Standard Unit
S Chassis with front panel
S Electronic controls with touchpad and digital display
Lead--time: Many models are in stock for immediate delivery; call for lead-- times.
FRONT
PANEL
INDOOR
COIL
BASEPAN
DISCHARGE
GRILLE
WIRE SCREEN
BI-MOLDED
CONDENSER
SHROUD
COIL TUBE
SHEETS
INDOOR-AIR
FILTERS
ACCESSORY
WALL
SLEEVE
ACCESSORY
OUTDOOR
GRILLE
DIGITAL CONTROL PAD
W/ELECTRONIC DISPLAY
WALL THERMOSTAT
AND ENERGY MANAGEMENT
INTERFACE
CONFIGURATION
DIP SWITCHES
A06752
PRODUCT CATALOG NUMBER
Electrical Data
3 – 230/208-v, 60 Hz
4 – 265-v, 60 Hz
Cooling Capacity (nominal)
07 – 7,000 Btuh
09 – 9,000 Btuh
12 – 12,000 Btuh
15 – 15,000 Btuh
52 ME – U 12 – – – 3
Series Designation
PTAC (Packaged Terminal Air Conditioner)
Electric Heater Size
U – Universal (defined by power cord)
Performance Series
ME – Cooling with Electric Heat
MQ – Heat Pump
ACCESSORY POWER CORD (REQUIRED) CATALOG NUMBER
A07636
Amperage
15A = 15 Amps
20A = 20 Amps
30A = 30 Amps
PWRCORD –
230v
Kit Description
PWRCORD = Power Cord
Voltage
– 20A
230v = 230/208-v, 60 Hz
265v = 265-v, 60 Hz
A07637
*Power Cord
for 230v*
*Power Cord
for 265v
