Carrier 52M Performance Series Product Data

24

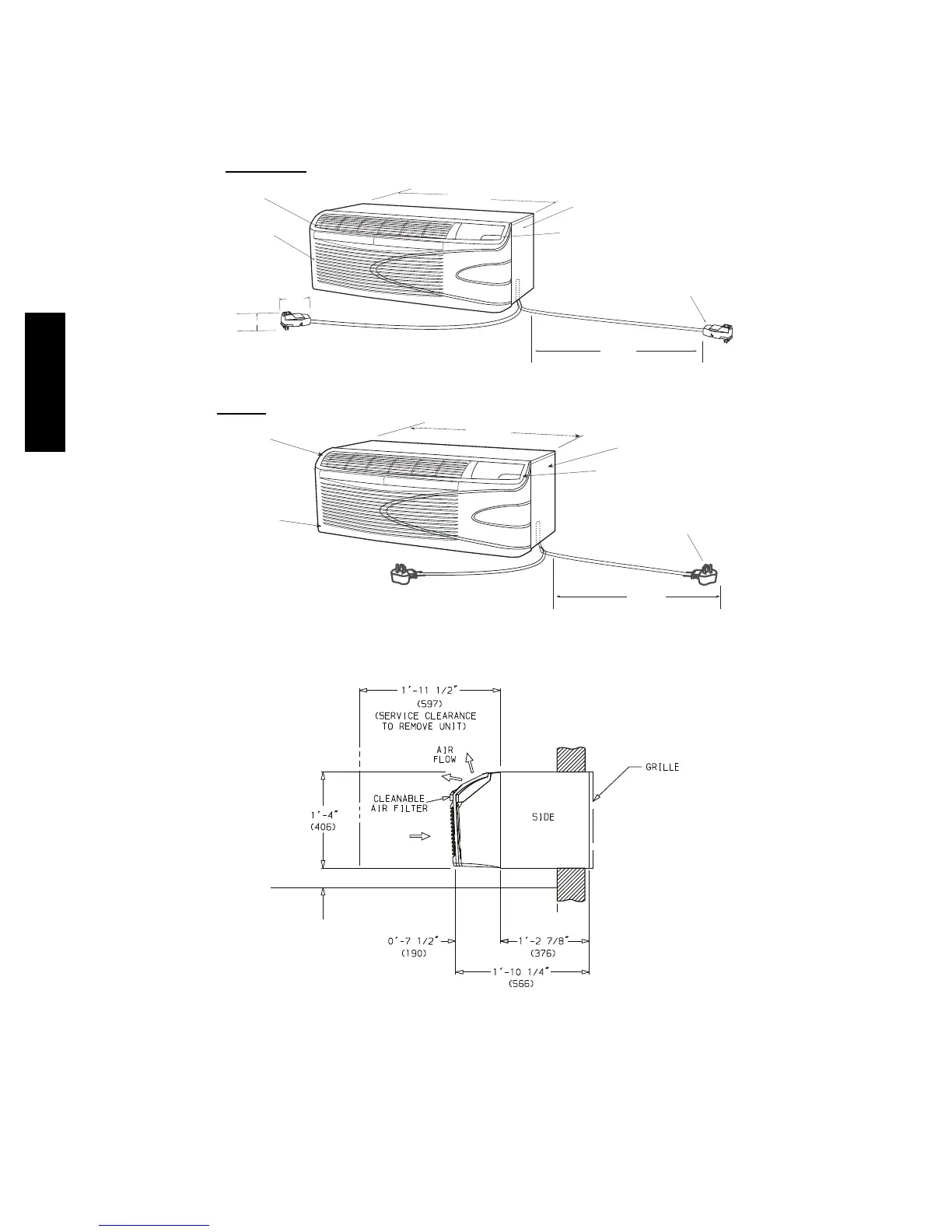

DIMENSIONAL DRAWINGS AND INSTALLATION DATA -- NEW
CONSTRUCTION
Proper building practices must be used when
constructing a wall opening to support a PTAC wall
sleeve and chassis.
If practices are unknown, consult your local architect
or building contractor. Installed wall sleeve must be
level from side to side and front to back.
208/230--v
42"
(1067)
`
ACCESSORY
WALL SLEEVE
HINGED CONTROL
ACCESS DOOR
DISCHARGE
GRILLE
REMOVABLE
FRONT PANEL
2.03"
(51.6)
3.94"
(100)
58"
(1473.2)
208/230V
Accessory Service Cord
A07377
265-- v
REMOVABLE
FRONT PANEL
42"
(1067)
HINGED CONTROL
ACCESS DOOR
ACCESSORY
WALL SLEEVE
DISCHARGE
GRILLE
`
15"
(381)
265V
ACCESSORY SERVICE CORD
(SEE NOTE #9)
A07378
A07379
52M Dimensional Drawing
52M
