Carrier 52M Performance Series Product Data

25
DIMENSIONAL DRAWINGS AND INSTALLATION DATA --
NEW CONSTRUCTION (CONT.)

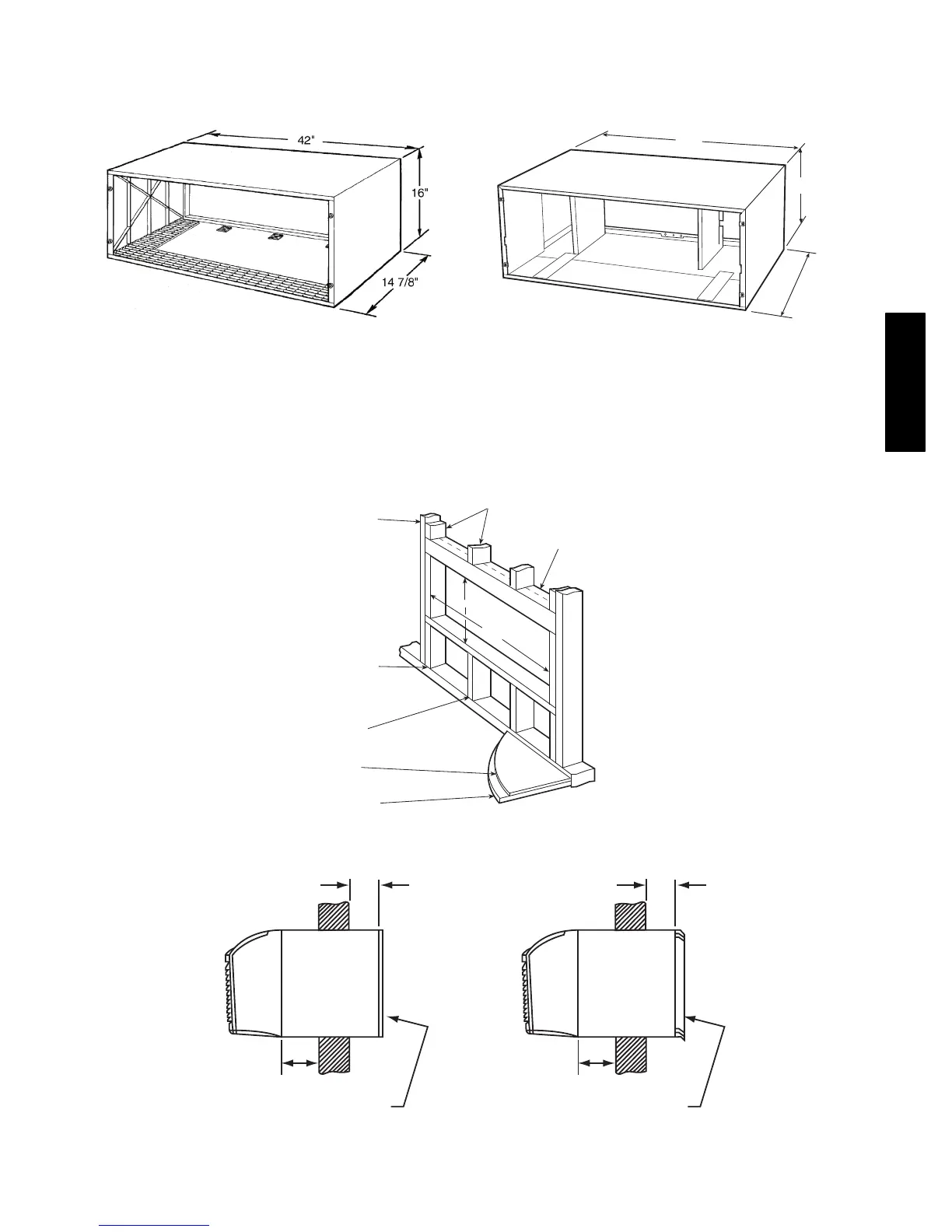

WALL SLEEVE M OUNTING DIMENS IONS FOR STANDARD AND ACCE SS ORY GRILLES
A07633
Standard Polymer Non-- Insulated Wall Sleeve
Standard Polymer Insulated Wall Sleeve
42 in.
16 in.
Available in:
14-3/4 in.,
18 in.,
24 in.,
26 in.,
28 in.
A07381
Standard and E xtended Metal Insulated Wall
Sl eev e
NOTES (Al l Sl eeves ):
1. Never install fasteners through bottom of sleeve.
2. Never use rails to level sleeve.
MAIN STUD
JACK STUD
CRIPPLE
FLOOR
SUB-FLOOR
42 1/8”
16 1/4”
JACK STUDS
HEADER- 4’ x 4’ OR
(2) 2’ x 4’ ON EDGE
A07382
Framing and Minimum Wall Sleeve Opening
SIDE
5/8" MIN.
(16)
1/2" MINIMUM
STANDARD OUTDOOR GRILLE
SIDE
5/8" MIN.
(16)
1/2" MINIMUM
ARCHITECTURAL GRILLE
STANDARD MOUNT
ALUMINUM OR PLASTIC
A07383
Wall Sleeve Mounting (All Models)
52M
