n TO REMOVE THE AIR DISCHARGE GRILLE
1. Remove the 2 screws on each end of the air discharge
grille as shown in Figure 14.
2. Lift and rotate back the bottom edge of the discharge
grille and remove it.
n TO REMOVE THE ALUMINUM TOP PANEL
— Remove one screw from each end of the aluminum
top panel (located on the underside of the panel) as shown
in Figure 15. On the left side of the unit, remove the
screw closest to the side of the unit.
n TO REMOVE THE TOP COVER — Remove the screw
located in the middle of the top cover and remove the
cover. See Figure 16.

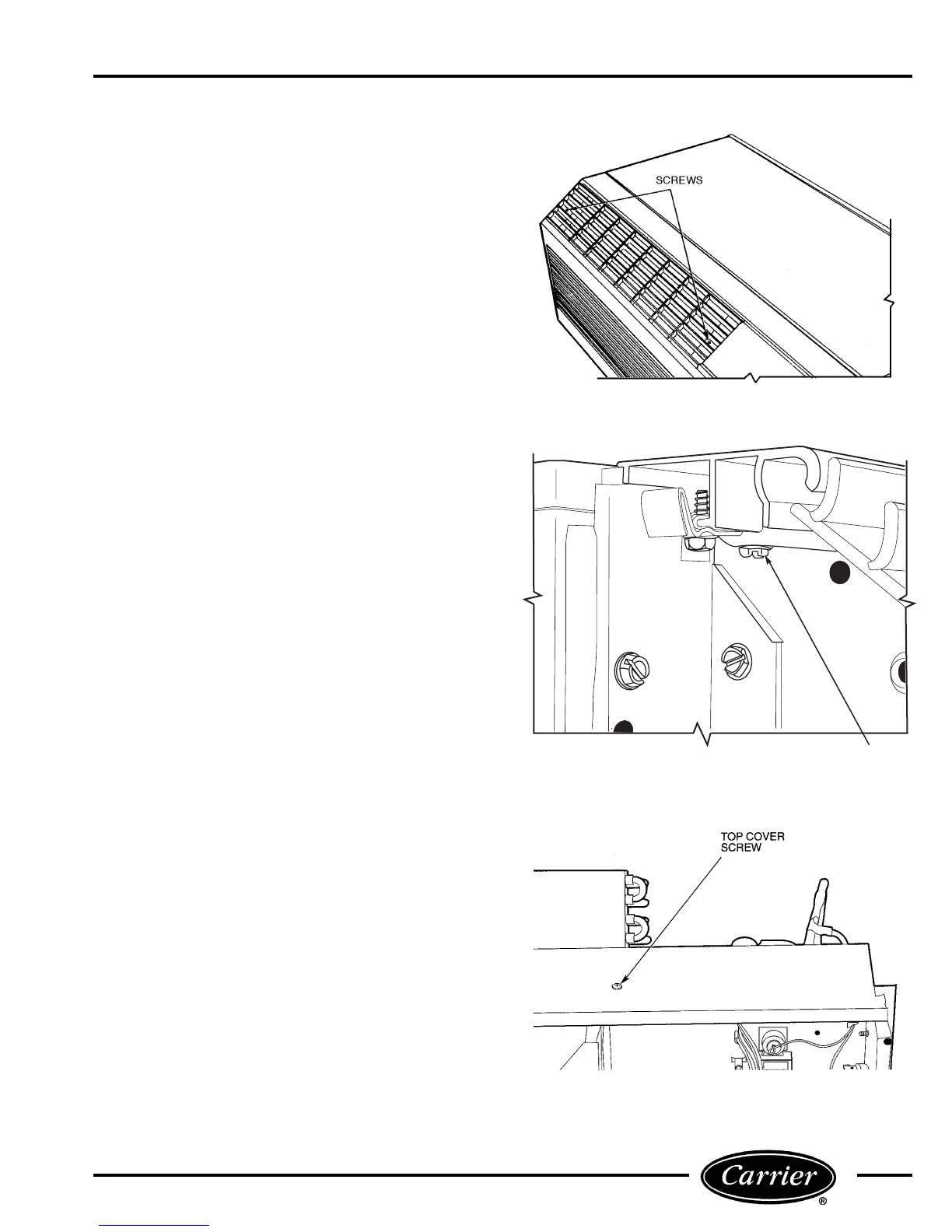

FIGURE 14 — REMOVING AIR DISCHARGE GRILLE
TOP PANE
SCREW
FIGURE 15 — ALUMINUM TOP PANEL
FIGURE 16 — TOP COVER SCREW
