Carrier 58MVP080 - Page 32

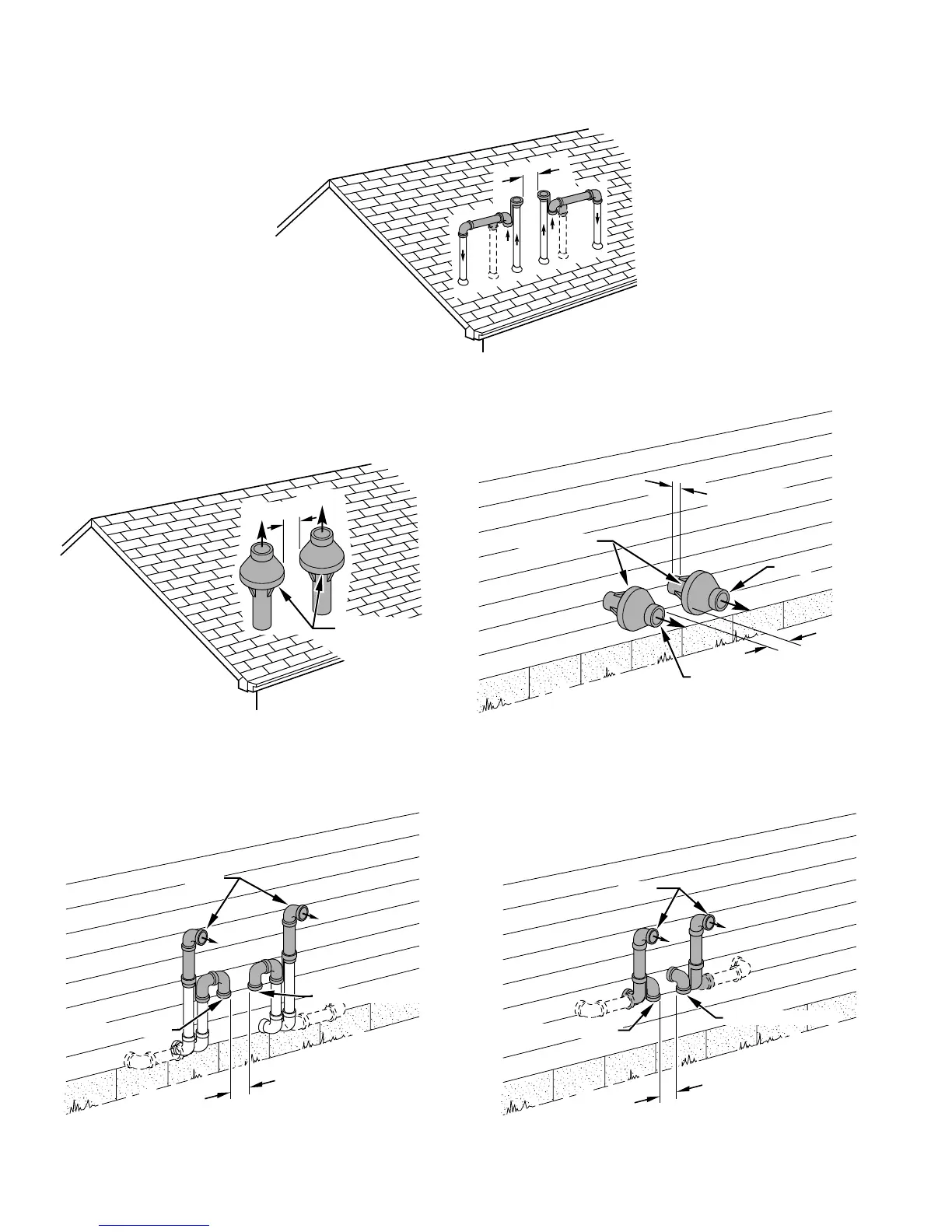

Fig. 41—Sidewall Termination of 12 in. or Less
(Dimension "A" is Touching or 2-In.
Maximum Separation)
A96129
A
COMBUSTION AIR
COMBUSTION AIR
VENT
Fig. 39—Concentric Vent and Combustion-Air Roof
Termination (Dimension "A" is Touching or
2-In. Maximum Separation)
A93056
COMBUSTION
AIR
VENT
VENT
A
Fig. 42—Sidewall Termination of More Than 12 in.
(Dimension "A" is Touching or 2-In.
Maximum Separation)
A96130
VENT
A
COMBUSTION AIR
COMBUSTION AIR
Fig. 40—Concentric Vent and Combustion-Air Side
Termination (Dimension "A" is Touching or
2-In. Maximum Separation)
A93057
COMBUSTION AIR
VENT
A
VENT
1″ MAXIMUM
(TYP)
Fig. 38—Rooftop Termination (Dimension "A" is Touching or 2-In. Maximum Separation)
A96128
A
32
