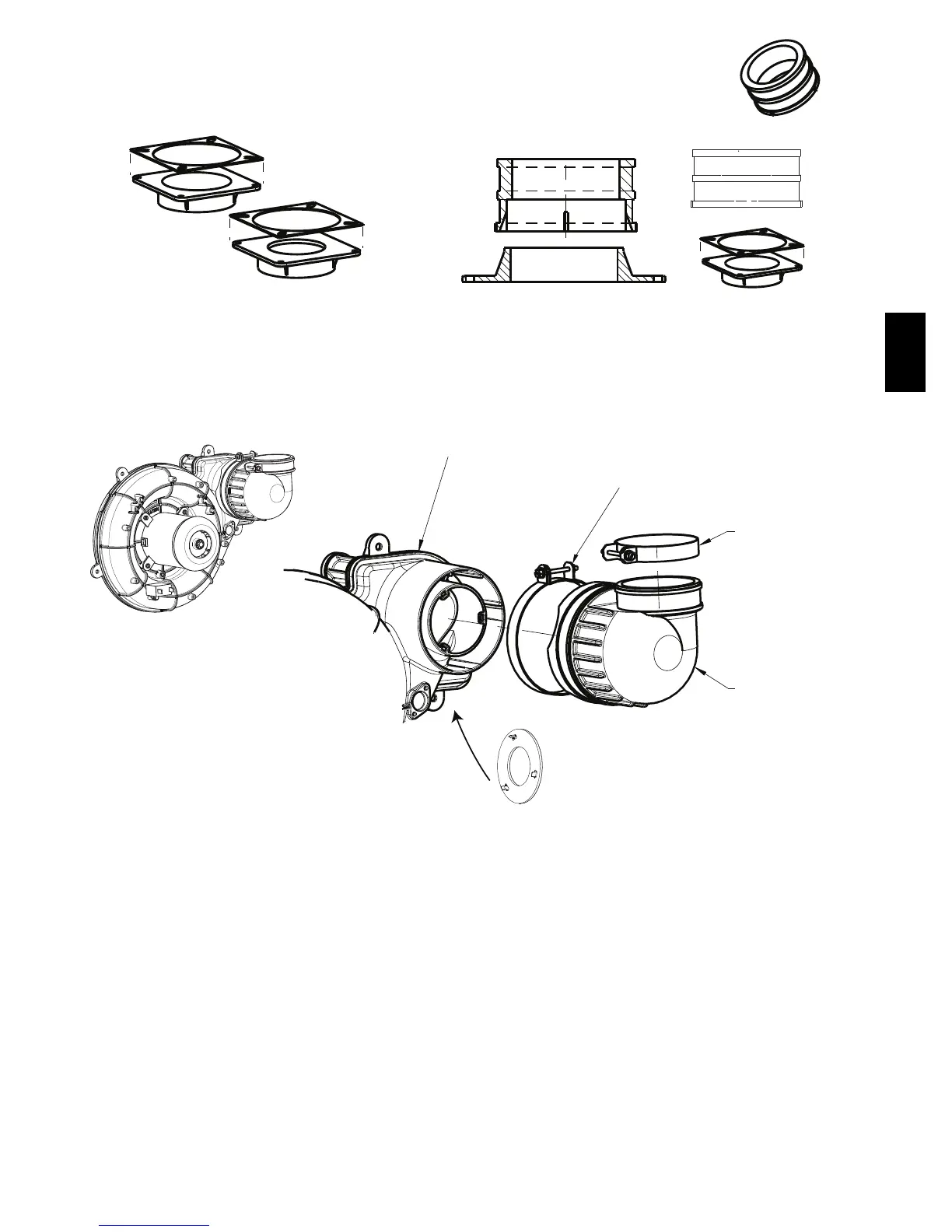

Attach gaskets to vent pipe and
combustion air adapters.
Vent Coupling and Adapter
A11314
Fig. 37 -- Vent Coupling and Adapter with Gaskets
PSC INDUCER ASSEMBLY
INDUCER OUTLET
VENT ELBOW CLAMP
TORQUE 15 LB-IN.
VENT PIPE CLAMP
TORQUE 15 LB-IN.
VENT ELBOW
INDUCER OUTLET CHOKE
40,000 BTUH MODELS ONLY
A11285
Fig. 38 -- Inducer Vent Elbow
