APPENDIX A — PIC 6 SCREEN AND TABLE STRUCTURE

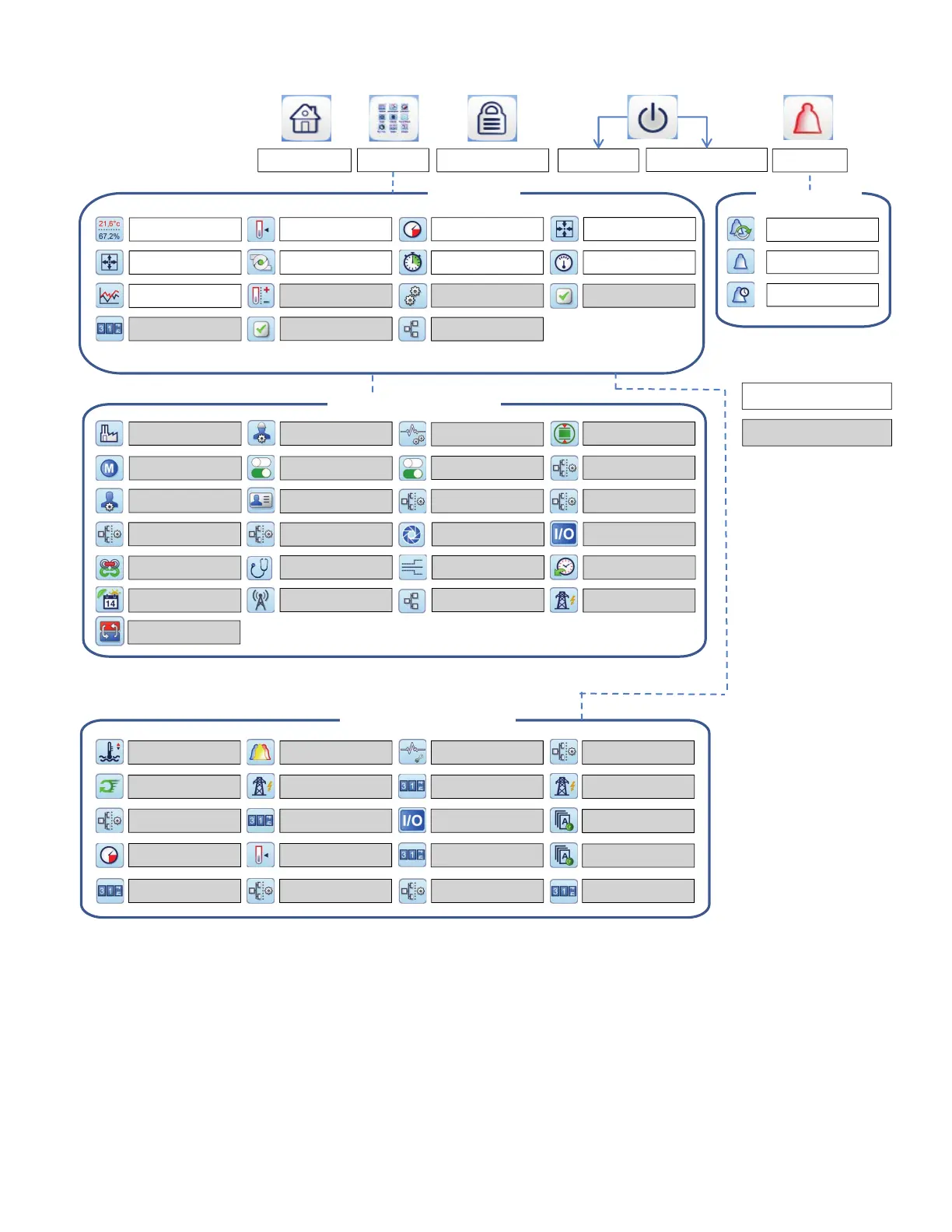

Fig. A — Screen Structure
19XR Menu — Note that the available menu
options shown in Menu are dependent upon
unit selections.
Main Menu
Alarm Menu
Home Synoptic Main Menu Login / Logout Screen
Confirm Stop
Choose operating mode
Alarm Menu
General Parameters
Pressures
Temperatures
Inputs Status
Outputs Status
Run Times
Trending
Modes
Configuration Menu
Maintenance Menu
Quick Test
Reset Alarms
Current Alarms
History Alarms
Configuration Menu
General
Temperature Reset Schedule Menu
Capacity Control
Maintenance VFD Config
Power Line Parameters
ISM Status
Holiday Menu
Override Control
Swift Restart
System Information
Maintenance Others
Pressure Sensor Calib
Hydraulic Status
Setpoint
VFD Status
Broadcast Menu
Surge Correction
ISM or VFD History
Maintenance IOB
Temp Sensor Calib
System Status
Control Identification
Factory Parameters
Service Parameters
Master Slave
Surge Correction
Protective Limit
Option
IOB
Lab Test Forced
VFD Parameters
Quick Calibration
ISM
Maintenance Menu
Legend
Menu accessible without password
Menu accessible with password
Board Software PN
Power Load Parameters
System Configuration
Option 2
General
General VFD
Modbus Master
SRD
Prognostics
BMS Protocol
VFD Line Param Calib
Low Load
Maintenance ISM Config
ISM Calibration
Danfoss VFD Alarm
