Carrier Atmosphera 42EM series - Dimensional Drawings

10

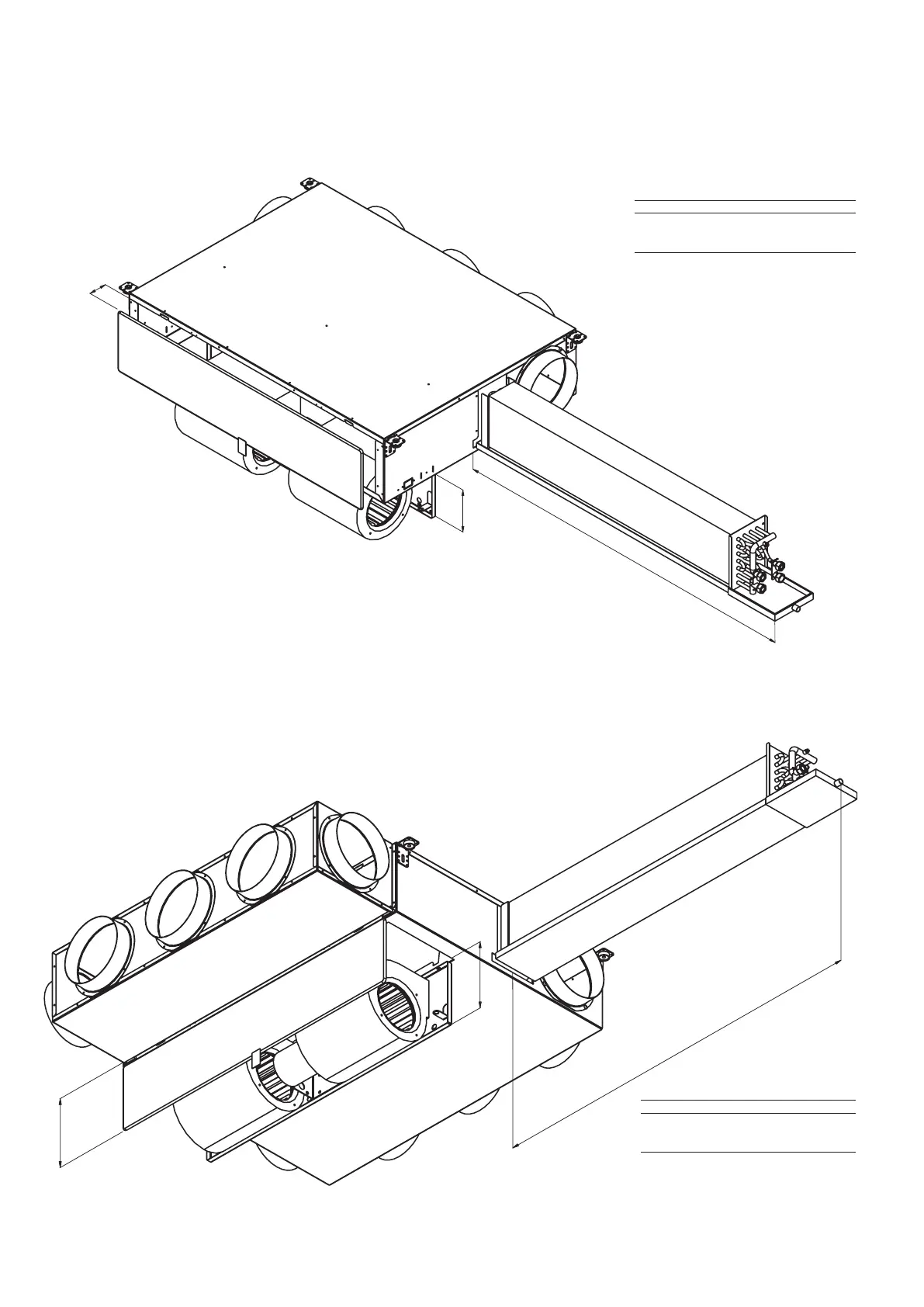

2.5 - Dimensional drawings
2.5.1 - Maintenance access space required, mm
Sizes 1, 2 and 3
- Non-ducted return air
Sizes 1, 2 and 3
- Ducted return air
B
C
A
A
C
B
ABC
42EM Size 1 220 850 250
42EM Size 2 220 1250 250
42EM Size 3 220 1250 250
ABC
42EM Size 1 50 850 250
42EM Size 2 50 1250 250
42EM Size 3 50 1250 250
