IDENTIFICATION OF PARTS
Dryer mode(optional)
The unit can make the MAX dehumidication
function when it is under the Dryer mode. The fan
speed is xed at high fan speed. The humidity
level is automatically controlled according to
the actual room humidity. The unit will quit dryer
mode after a maximum 10 hours’ operation.
NOTE:
● The Dryer mode must be operated in a close
room, do not open the door and window.
● To make the best effective dehumidication,
please rst dehydrate the wet clothes.
● Make sure to direct airow at the wet clothes
(See Fig.A).
● For thick and heavy wet clothes may not get
the best effective dehumidication.
CAUTION
● Do not cover the air outlet of the unit with
clothes. It may cause excessive heat, re or
failure of unit.
● Do not place the wet clothes on the top of the
unit and do not make the water drop into the unit. It may cause electric shock, creepage or
failure of unit.

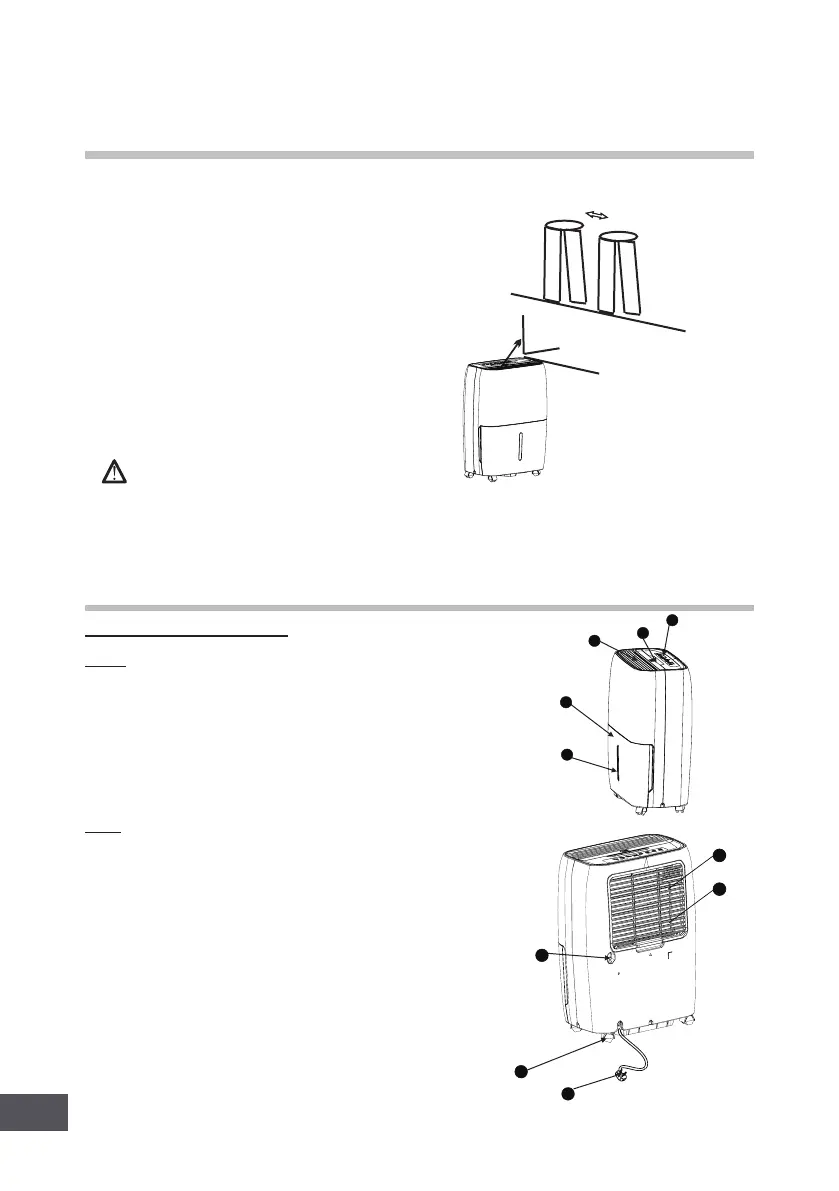

Identication of parts
Front
Ê Control panel
Ë Handle
Ì Air outlet grille
Í Water bucket
Î Water level window
Rear
Ê Drain hose outlet
Ë Caster
Ì Power Cord and plug
Í Air intake grille
Î Air lter (behind the grill)
NOTE: All the pictures in the manual are for explanation
purposes only. The actual shape of the unit you purchased
may be slightly different, but the operations and functions
are the same.
Wet clothes
30~50cm
Airow
30~50cm
Allow 30~50cm of distance
on the top and right side of
the unit to the wet clothes.
Fig.A
5
1
2
3
4
1
2
3
4
5
Fig.2
Fig.3
