DIMENSIONS
Table 2 — Dimensions

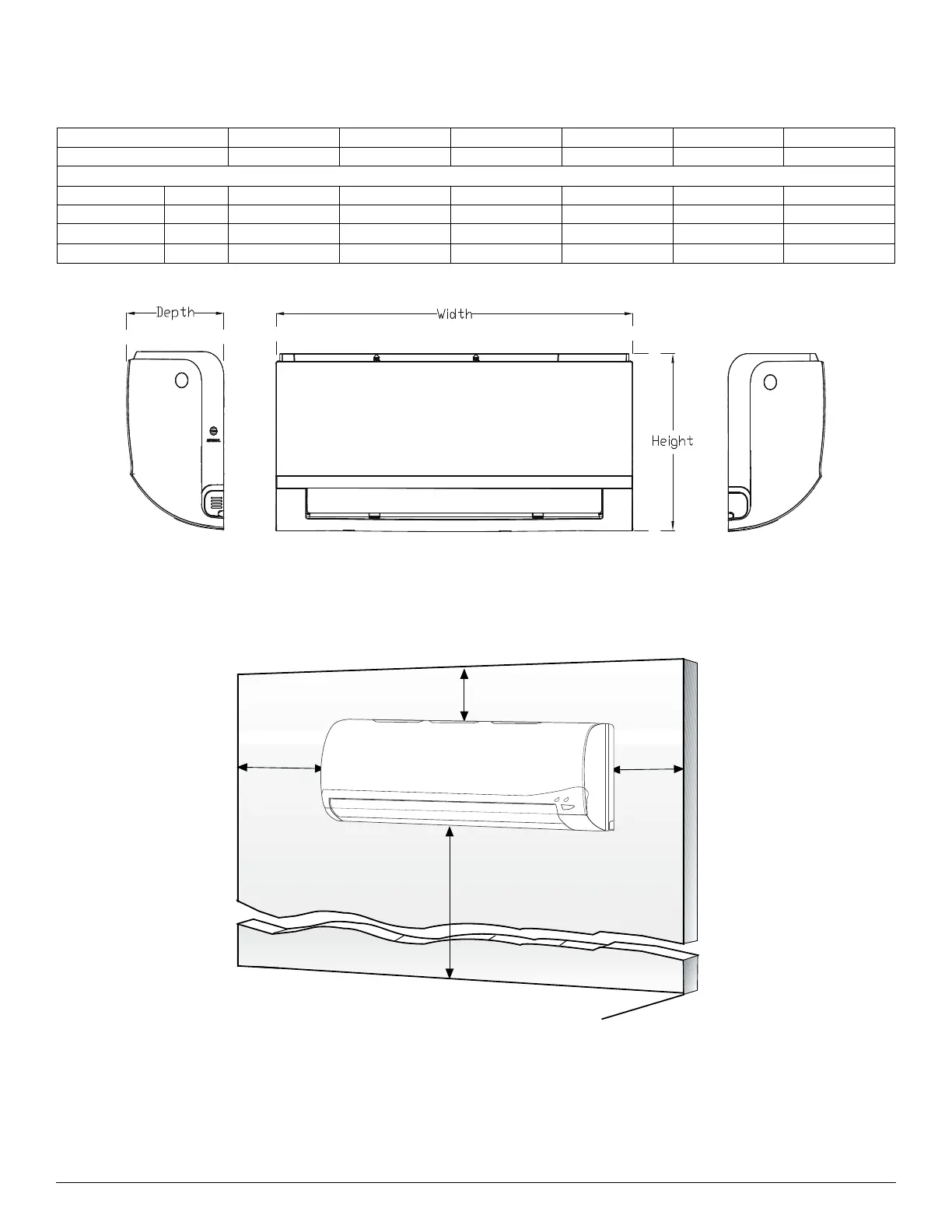

Fig. 1 — Indoor Unit
CLEARANCES
Fig. 2 — Clearances
NOTE: The top clearance recommended for proper return airflow is 5.9in (15cm). Reduction of this clearance may decrease unit
performance. This may be reduced to 3.2in (80mm) as long as the right and left clearances are achieved.
HIGH WALL UNIT SIZE 9K 12K 9K 12K 18K 24K
(VOLTAGE) (115V) (115V) (208/230V) (208/230V) (208/230V) (208/230V)
Dimensions
Height (H)
In/ (mm) 11.22(285) 11.22(285) 11.22(285) 11.22(285) 11.89(302) 12.80(325)
Width (W)
In/ (mm) 28.15(715) 31.69(805) 31.69(805) 31.69(805) 37.68(957) 40.87(1,038)
Depth (D)
In/ (mm) 7.68(195) 7.68(195) 7.68(195) 7.68(195) 8.39(213) 8.66(220)
Weights - Net lbs. (kg)
15.9(7.2) 17.2(7.8) 17.2(7.8) 17.2(7.8) 22.9(10.4) 28.9(13.1)
6
"
(0.15m
)
min.
5
"
(0.13m)
min.
6'
5
"
(0.13m)
min.
(1.8m)
CEILING
FLOOR
