Carrier N80ESL Series - Page 18

Specifications are subject to change without notice.
18
441 01 3400 02
A02163

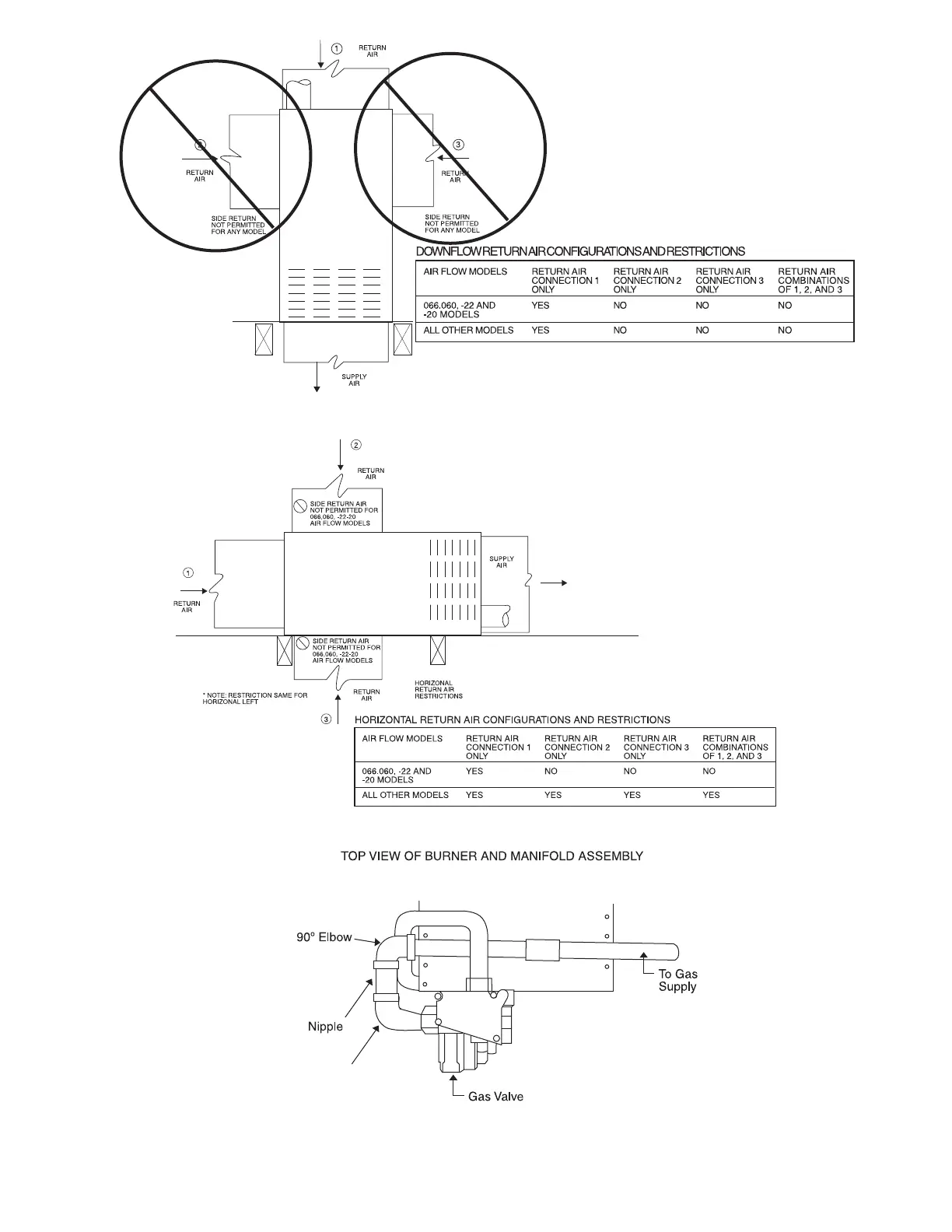

Fig. 20 -- Downflow Return Air Configurations and Restrictions
A02162
Fig. 21 -- Horizontal Return Air Configurations and Restrictions
2” (51mm)
Street Elbow
A08551
Fig. 22 -- Burner and Manifold
