GAS SECTION
(48FK,FM,JK)
HORIZONTAL SUPPLY SECTION (50FS,FY,JY)
AND EXTENDED
PLENUM SECTION (50FKX,FKY,FMX,FMY,JKX,JKY)

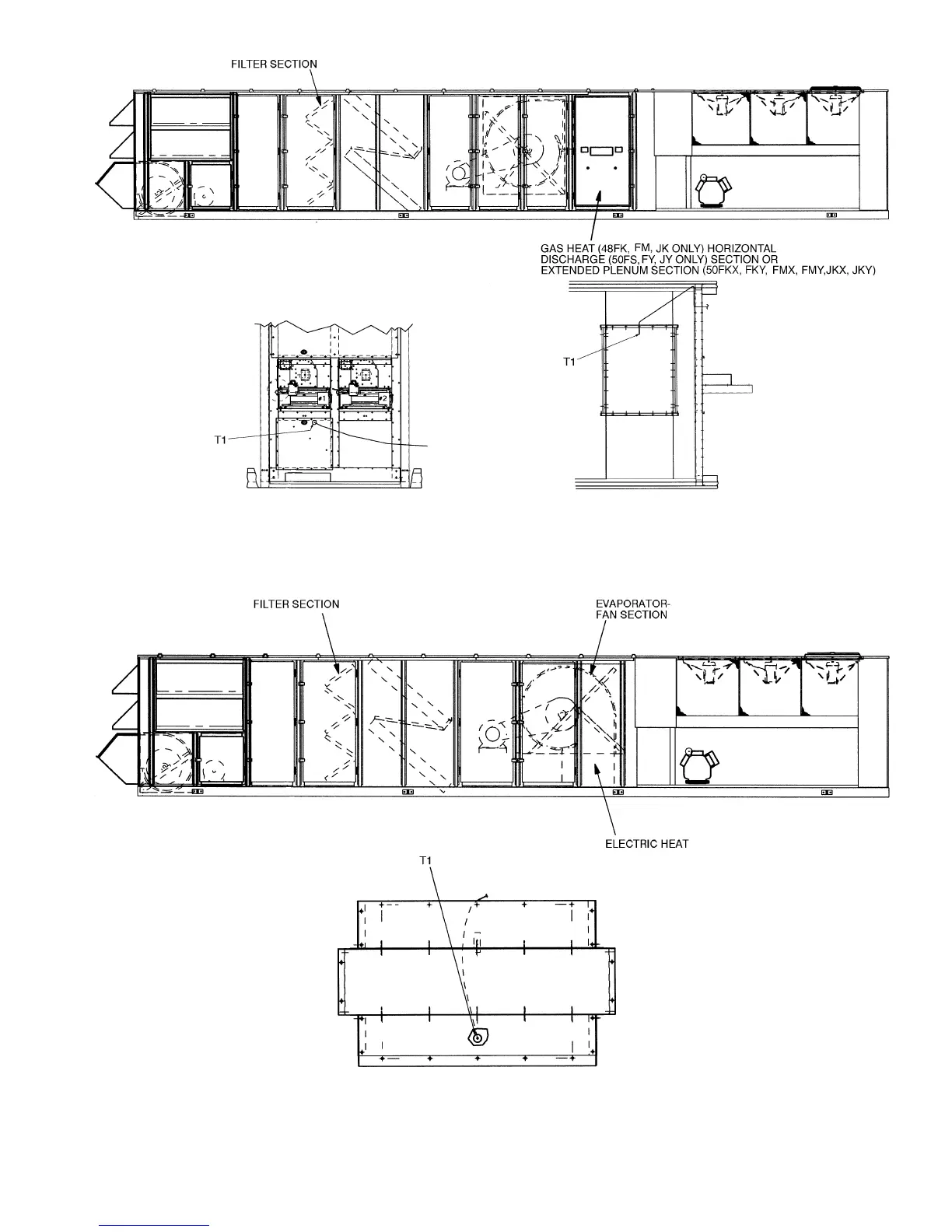

Fig. 9 — Thermistor T1 Location, 48FK,FM,JK, 50JY and
50JKX,JKY 054-074 Units and 50FKX,FKY,FMX,FMY and 50FS,FY054-104 Units
FAN DISCHARGE/ELECTRIC HEAT SECTION
Fig. 10 — Thermistor T1 Location, 50FK,JK054-074 Units
To Next Page
