Carrier PG80VTLB - Page 23

PG80VTLB: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
23
A03208

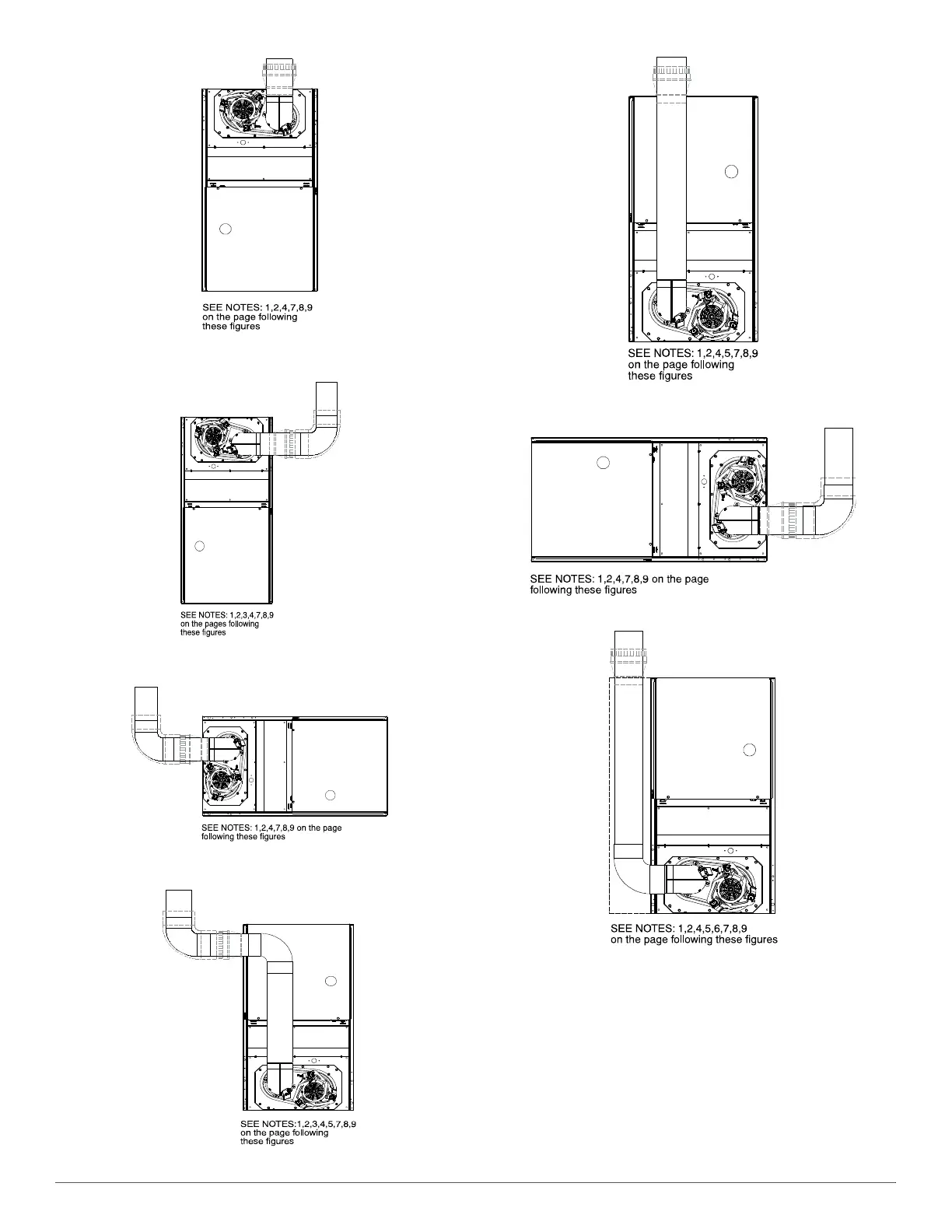

Fig. 32 – Upflow Application - Vent Elbow Up
A03209
Fig. 33 – Upflow Application - Vent Elbow Right
A03213
Fig. 34 – Horizontal Left Application - Vent Elbow Left
A03210
Fig. 35 – Downflow Application - Vent Elbow Up then Left
A03211
Fig. 36 – Downflow Application - Vent Elbow Up
A03218
Fig. 37 – Horizontal Right Application - Vent Elbow Right
A03207
Fig. 38 – Downflow Application - Vent Elbow Left then Up
