Carrier Sanyo 16TJ - Description of Keys and Their Functions

13
STOP RUN
CHILLER
REF PUMP
PURGE PUMP
ABS PUMP
STAND BY
DILUTION
SAFETY CIRCUIT
CHILLER ALARM
POWER
STOP RUN
OPERATION
BUZZER STOP LOCAL
REMOTE
SET BACK
1
2
4
6
7
8
9
10
12
5
11
3

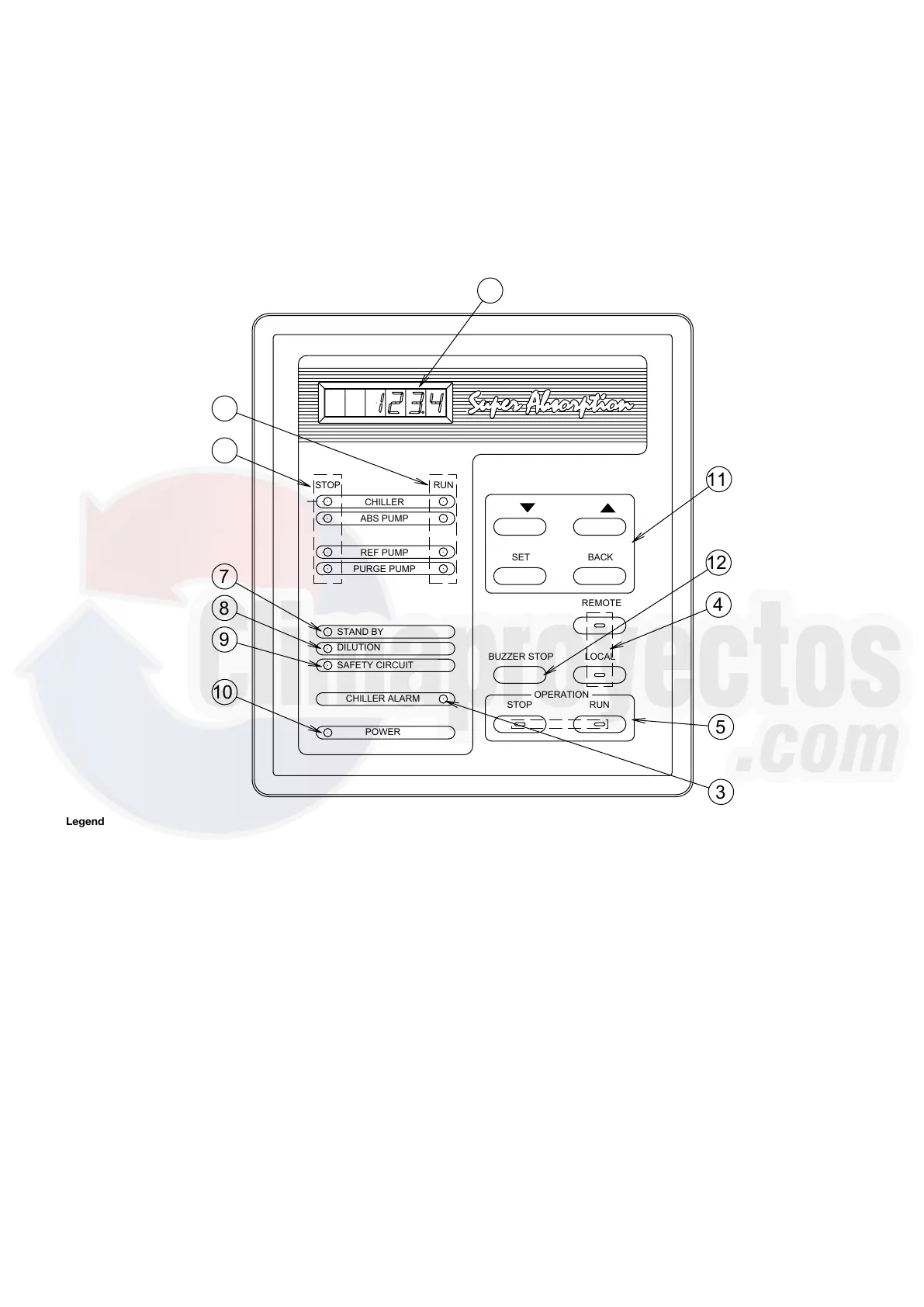

Fig. 9 - Typical control board
Legend
1 Operation indication light: The operation indication light is on when the chiller is running.
2 Stop indication light: The stop indication light is on when the chiller is shut down.
3 Alarm indication light: The alarm indication light is on when an alarm occurs.
4 Remote/local select key with LED: To select remote operation or local operation.
5 Operation select key with LED: Key used to run/stop the chiller.
The stop key is also used for alarm rset.
6 Data display (7-segment LED): Shows the temperature, setpoint, etc.
7 Standby indication light: On when the chiller is waiting for the interlock signals form the chilled water and the cooling water pump.
8 Dilution indication light: On during the dilution cycle.
9 Safety circuit indication light: On when power is supplied to the control circuit.
10 Power indication light: On when power is supplied to the control circuit.
11 Data select key: To change the menu and set a new value.
12 Alarm buzzer stop key: To stop the alarm buzzer.
3.2 - Description of keys and their functions
