Carrier TSTATCCREC01 - Page 7

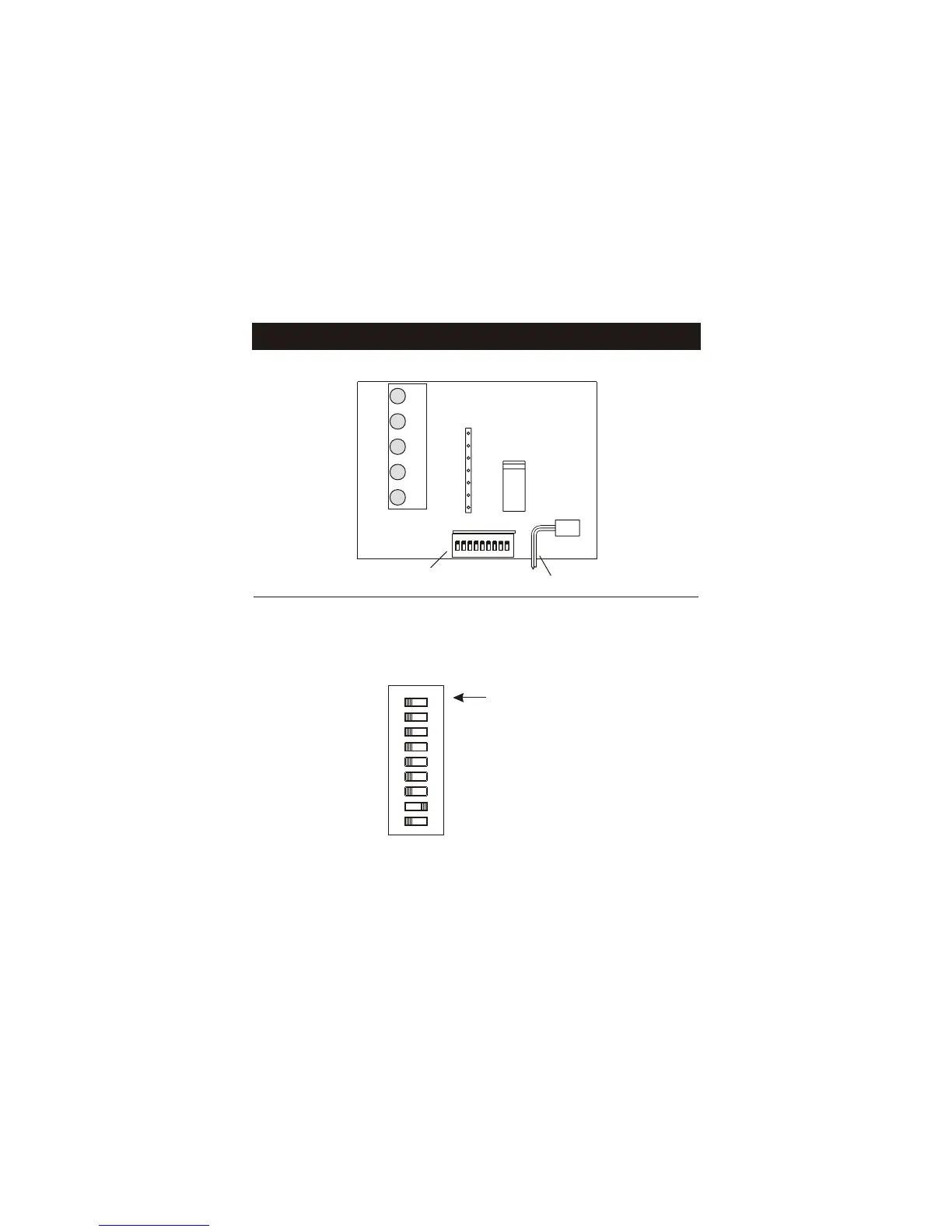

Connections & Switches - Heat Pump
Page 6
11 22 44 88
1616 3232 EHEH HPHP
ONON
OFFOFF
Antenna
Dip
Switches
Circuit Board
Heat Pump
11
22
44
88
1616
3232
EHEH
HPHP
O / BO / B
ON
OFF
To configure the receiver
for heat pump operation
Slide HP switch to the
ON position as shown.
Reversing Valve polarity
(O or B) can also be set.
OFF = O, ON = B
ON Indicator
