PRESET button
Press this button to change the operation mode to
the preferred operation mode memorized
previously. To memorize the operation mode,
press this button for at least 3 seconds during the
preferred operation mode. is displayed and the
operation mode is memorized.
14
SLEEP button
Press this button to start the OFF timer operation
that automatically adjusts the room temperature
and the fan speed.
You can select the OFF timer time from four
durations (1, 3, 5 or 9 hours).
Names and functions of
indications on wireless
remote controller
Display
All indications, except for clock time indication, are
indicated by pressing the START/STOP button.
• In the illustration, all indications are indicated for
explanation.
During operation, only the relevant indications will be
indicated on the remote controller.
1 Transmission mark
This transmission mark ( ) indicates when the
remote controller transmits signals to the indoor
unit.
2 Mode display
Indicates the current operation mode.
(A: Auto changeover control, : Cool, : Dry,
: Fan only)
3 Temperature display
Indicates the temperature setting (17 °C to 30 °C).
When you set the operating mode to : Fan only,
no temperature setting is indicated.
4 FAN speed display
Indicates the selected fan speed. AUTO or one of
five fan speed levels (LOW , LOW
+
,
MED , MED
+
, HIGH )
can be indicated.
Indicates when the operating mode is :
Dry.
5 TIMER and clock time display
The time set for timer operation or clock time is
indicated.
The present time is always indicated except for
TIMER operation.
6 Hi POWER display
Indicates when the high power operation starts.
Press the Hi-POWER button to start and press it
again to stop the operation.
7 (PRESET) display
Indicated when memorizing the preferred
operation mode or when it has been memorized.
Also, this icon is indicated when the memorized
preferred operati
on is displayed.
8 Swing display
Indicated during the swinging operation where the
horizontal louver automatically moves up and
down.
8
7
5
4
6
12
3
3

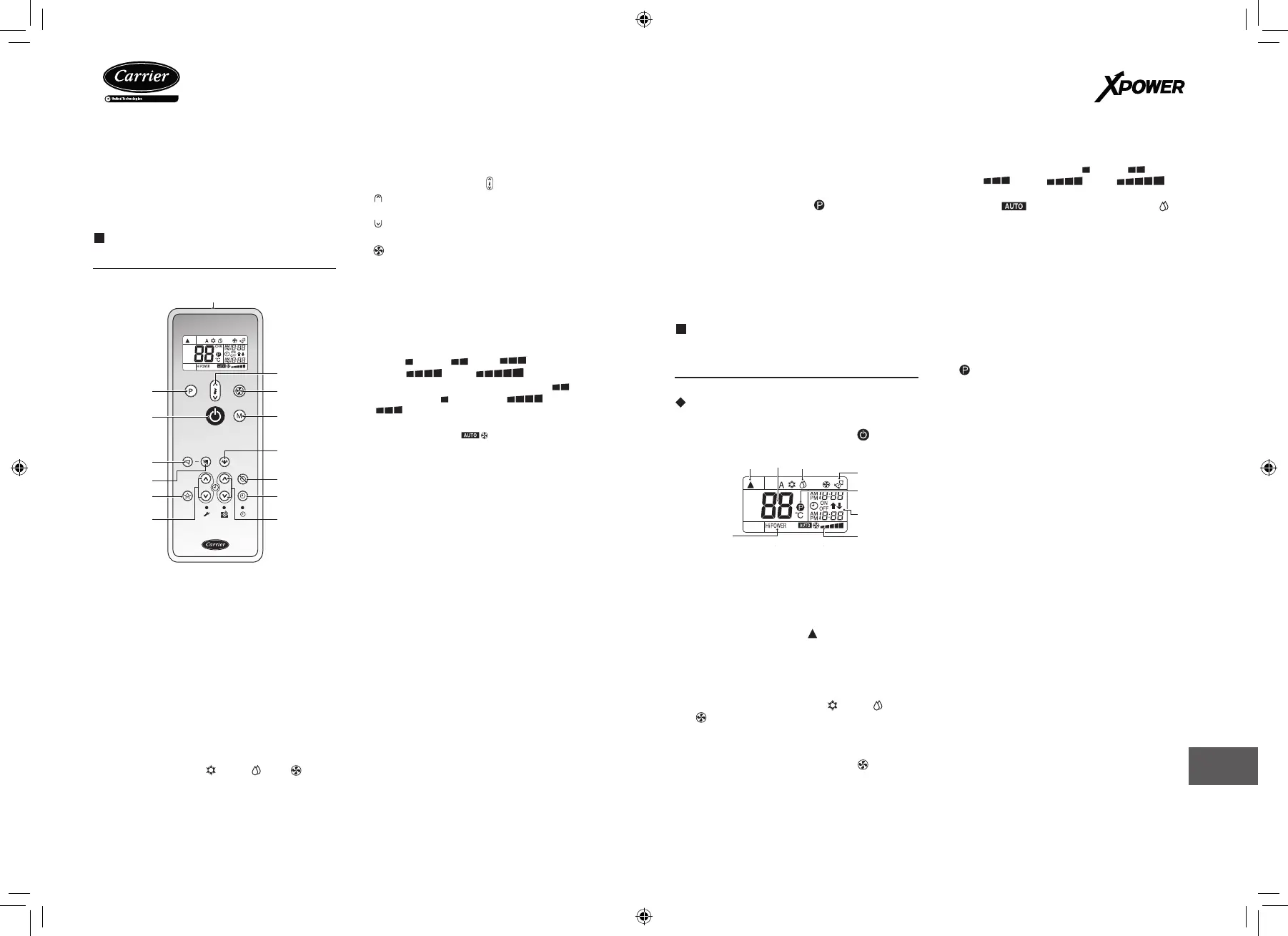

Wireless remote controller
3-1. Parts name of remote
controller
Wireless remote controller
and its functions
1
Infrared signal emitter
Transmits a signal to the indoor unit.
2
START/STOP button
Press the button to start operation.
(A receiving beep is heard.)
Press the button again to stop operation.
(A receiving beep is heard.)
If no receiving sound is heard from the indoor unit,
press the button twice.
3 Mode select button (MODE)
Press this button to select a mode.
Each time you press the button, a mode is
selected in a sequence that goes from A: Auto
changeover control, : Cool, : Dry, : Fan
only, and back to A. (A receiving beep is heard.)
4
Temperature button ( )
5
Fan speed button (FAN)
Press this button to select fan speed. When you
select AUTO, the fan speed is automatically
adjusted according to the room temperature.
You can also manually select the desired fan
speed from among five settings.
(LOW , LOW
+
, MED ,
MED
+
, HIGH )
Five patterns are displayed, but LOW+ is
equal to LOW , and MED+ to MED
.
When you select Dry, fan speed is automatically
changed to AUTO and it is not manually
adjustable.
(A receiving beep is heard.)
6 Auto louver button (SWING)
Press this button to swing the louver.
(A receiving beep is heard.)
Press the SWING button to stop the louver
swinging.
(A receiving beep is heard.)
7 Set louver button (FIX)
Press this button to adjust the airflow direction.
(A receiving beep is heard.)
It cannot be operated by holding down the button.
Push the button with some interval.
8
Off timer button (OFF)
Press this button to set the OFF timer.
9 On timer button (ON)
Press this button to set the ON timer.
10
Reserve button (SET)
Press this button to reserve time settings.
(A receiving beep is heard.)
11
Cancel button (CLR)
Press this button to cancel ON timer and OFF
timer. (A receiving beep is heard.)
12
High power button (Hi-POWER)
Press this button to start the high power operation.
Only available during Auto changeover control or
Cool operation.
This function is not operated group control.
...... The set temperature is increased up to
30 °C.
...... The set temperature is dropped down to
17 °C. (A receiving beep is heard.)
...... The temperature is not displayed during
Fan only operation.
ON OFF
13
14
9
6
2
7
5
4
3
12
11
8
10
1
PRESET
MODE
FAN
SWING
CHK
FILTER CLOCK
FIX HI-POWER
CLR
SLEEP
SET
