GB // 16

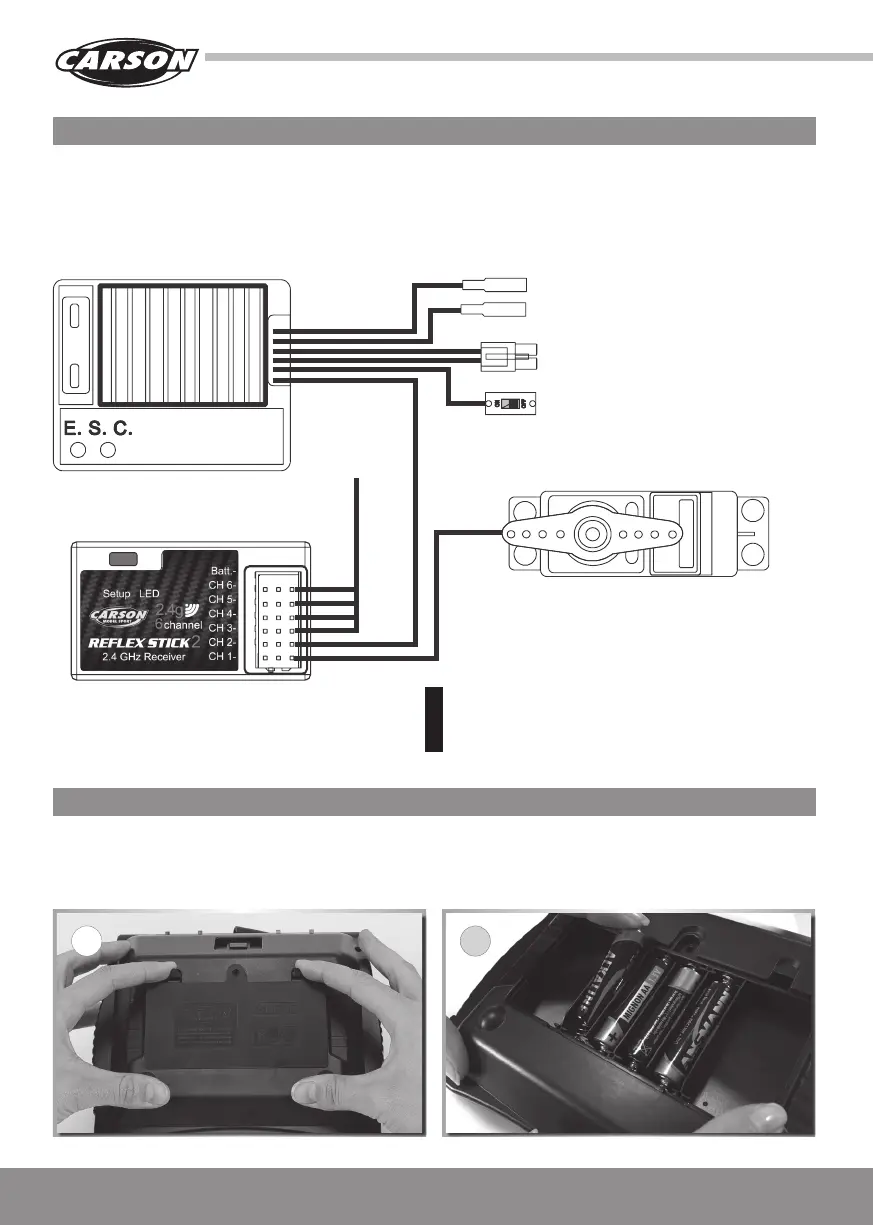

BEC-System/Connections to Receiver
Install the Transmitter Batteries
BEC-receiver:
Battery eliminator is installed in the receiver circuitry. The receiver
gets supplied with current through the drive battery that runs the
engine. NiMH battery from 6 V to 8.4 V can be used for the receiver.
Batteries of higher voltage may damage the receiver and servos.
Use only a speed controller which has the exclusive connector for
the BEC system.
1. Open the battery compartment lid on the reverse of the
transmitter.
2. Insert 4 fully charged rechargeable batteries or new AA
batteries observing the correct polarity.
3. Close the cover on the battery compartment again. Ensure
that the cover clicks properly into place. Check that it is in its
correct position.
Connector motor
Connector battery
Power switch On-/Off
Additional
channels
Electronic speed controller
(not included)
Receiver
Do not connect a separate power supply
to the receiver!
Steering servo
Channel 1
(not included)
ATTENTION
Make sure that male and female
connectors have the correct polarity!
1 2
