BEC-receiver:
Battery eliminator is installed in the receiver circuitry. The receiver
gets supplied with current through the drive battery that runs the
engine. NiMH battery from 6 V to 8.4 V can be used for the receiver.
Batteries of higher voltage may damage the receiver and servos.
Use only a speed controller which has the exclusive connector for
the BEC system.

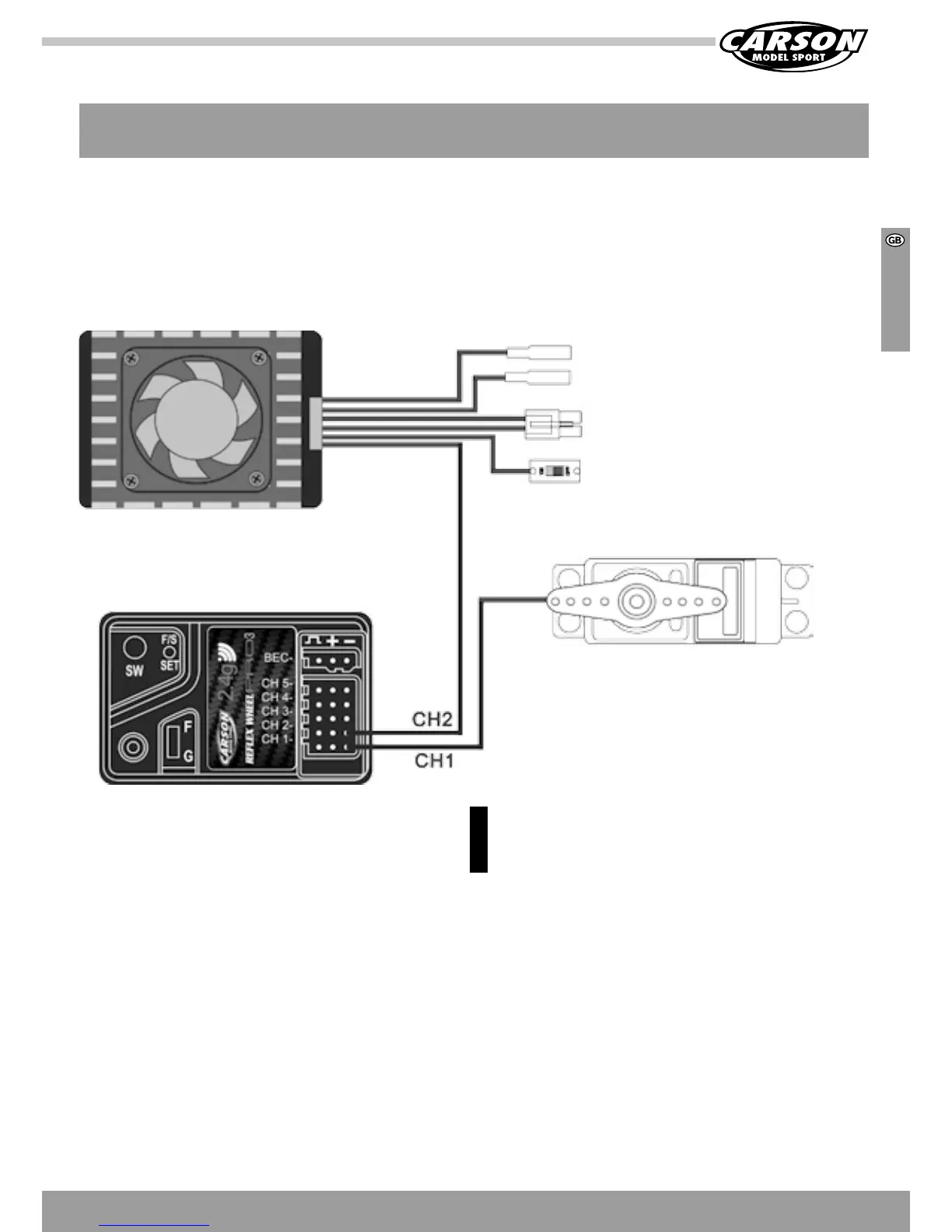

BEC-System/Connections to Receiver for Reflex Wheel
PRO3 BEC + Reflex Wheel PRO3 LCD BEC Version
Connector motor
Connector battery
Power switch On-/Off
Electronic speed controller
(not included)
Receiver
Do not connect a separate power supply
to the receiver!
ATTENTION
Make sure that male and female
connectors have the correct polarity!
Steering servo
Channel 1
(not included)
