Carson SA-441-10F User Manual

SA-441-10 Installation and Operating Instructions Page 9 of 16
CP5203A 11/1/19

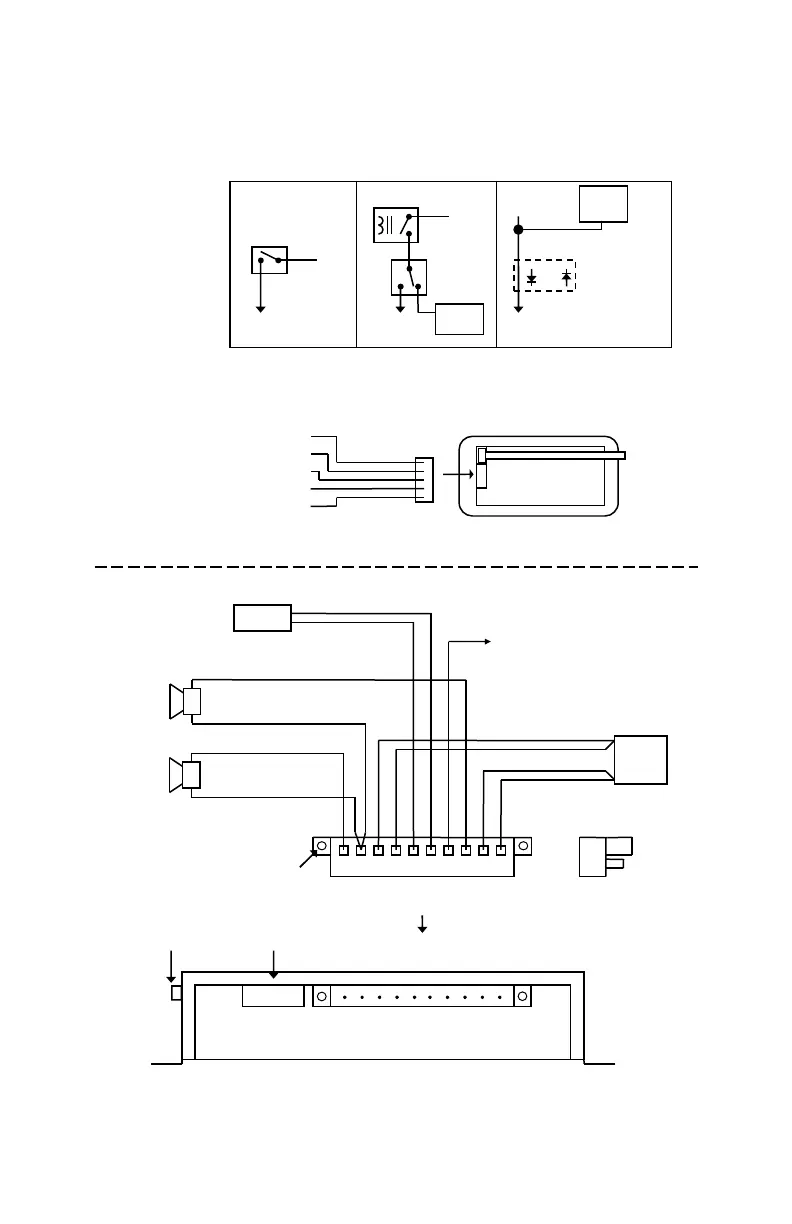

ELECTRICAL CONNECTIONS CONTINUED
Auxiliary Input
Connection
Examples
Aux input is
activated with
+VDC AND -VDC
HORN RLY
+VDC
or
-VDC
Added
SPDT
Switch
To
AUX
Vehicle
Horn
Horn
Circuit
Note:
Vehicle horn will
also sound with
siren
May need to
add diode
(10mA current)
To
AUX
Vehicle
Horn
Splice
or
+VDC
or
-VDC
Momentary
SPST
Switch
To
AUX
Plug into unit first for
terminal identification
Plug secured with mounting screws
10-P Terminal Block Plug
(CP4833-10)
Plug installed
this orientation
+
-
BAT
#14 AWG BLK
(2 LEADS)
#14 AWG RED
(2 LEADS)
#18 AWG ORG/BLK
RADIO
#22 AWG BLU (2 LEADS)
SPKR A
SPK COM
POS POS
RAD RAD
CTRL
SPKR B
NEG NEG
Remote
Amplifier
Connect to
output jack, terminals
or speaker of radio
#22 AWG WHT
To Control Head White Wire
15A Automotive Type Fuses
100W
11 ohm
Speaker
+
-
#18 AWG ORG
Control Head
Rear View
Optional
Microphone
Extension
Customer Fused +VDC - Red Wire
-VDC - Black Wire
Control Line to Amp - White Wire
Backlighting - Yellow Wire
Control Head
Cable (CP3040)
(AUX) Auxiliary Input - Green Wire
Control Head Cable may be extended with #22AWG Wire
SPKR B AMP
SPKR A AMP
100W
11 ohm
Speaker
+
-
#18 AWG ORG/BLK
#18 AWG ORG
