Fig. 4-2
ADJUSTMENTS

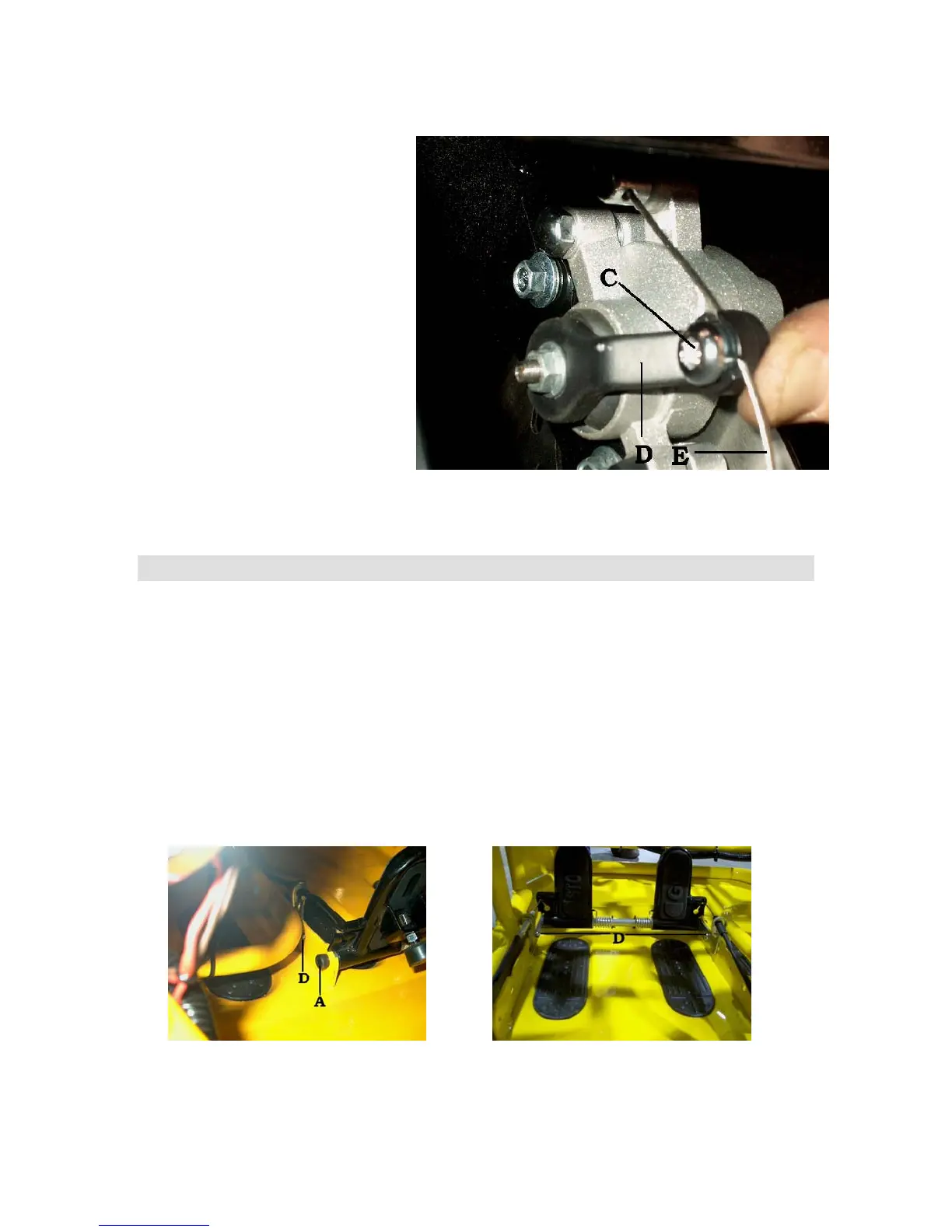

Adjusting the Foot Pedals
This MINI-Talon has been made with foot pedals that can be moved depending
on the size of your child. First remove the bolts (A) and (D) (Figure 5-1 and 5-2). Once
you have done this, you are able to move the cable holder and the pedal rod with the
pedals together. There is only one bolt that holds the pedal rod in place. On the brake
pedal side there is a slot for the pedal rod to fit into, once you have picked out the holes
for the new setting, just slide the pedal rod and cable holder together and fasten all bolts
and nuts. Remember not to take pedals off the rod. By doing so the spring may come
loose. Make sure after you have done the adjustments, the pedals are working and will
return to their original position.
