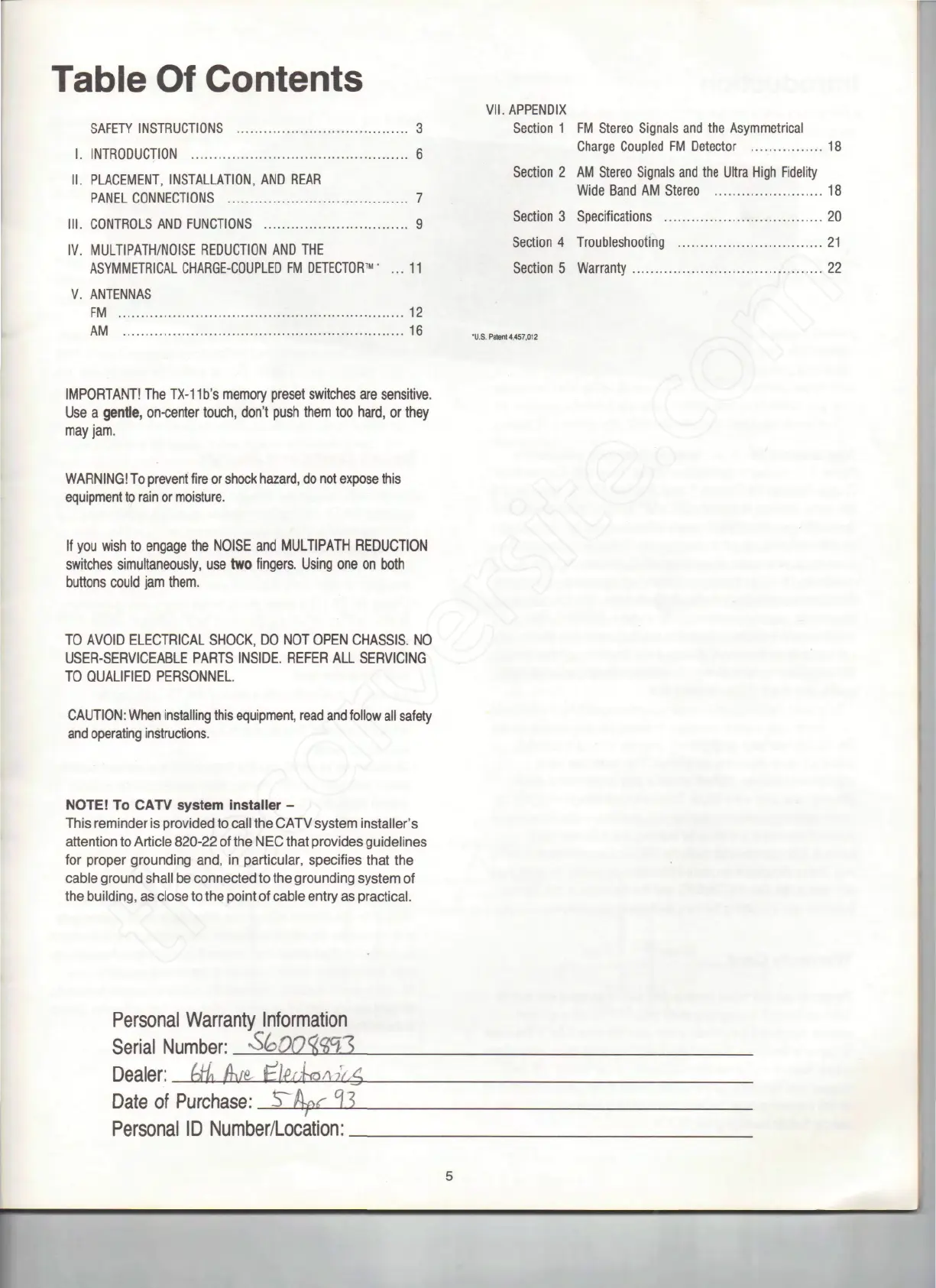

Carver TX-11b - Table of Contents

Table Of Contents
SAFETY INSTRUCTIONS 3
I. INTRODUCTION 6
II. PLACEMENT, INSTALLATION, AND REAR
PANEL CONNECTIONS .7
III. CONTROLS AND FUNCTIONS 9
IV. MULTIPATH/NOISE REDUCTION AND THE
ASYMMETRICAL CHARGE-COUPLED FM DETECTOR™' ... 11
V. ANTENNAS
FM
AM
12
16
VII. APPENDIX
Section 1 FM Stereo Signals and the Asymmetrical
Charge Coupled FM Detector 18
Section 2 AM Stereo Signals and the Ultra High Fidelity
Wide Band AM Stereo 18
Section 3 Specifications 20
Section 4 Troubleshooting 21
Section 5 Warranty 22
•U.S. Patent4.467,012
IMPORTANT! The TX-11 b's memory preset switches are sensitive.
Use a gentle, on-center touch, don't push them too hard, or they
may jam.
WARNING! To prevent fire or shock hazard, do not expose this
equipment to rain or moisture.
If you wish to engage the NOISE and MULTIPATH REDUCTION
switches simultaneously, use two fingers. Using one on both
buttons could jam them.
TO AVOID ELECTRICAL SHOCK, DO NOT OPEN CHASSIS. NO
USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING
TO QUALIFIED PERSONNEL
CAUTION: When installing this equipment, read and follow all safety
and operating instructions.
NOTE! To CATV system installer -
This reminder is provided to call the CATV system installer's
attention to Article 820-22 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
Personal Warranty Information
Serial Number:
Dealer:
Date of Purchase: S^
r
Personal ID Number/Location:
