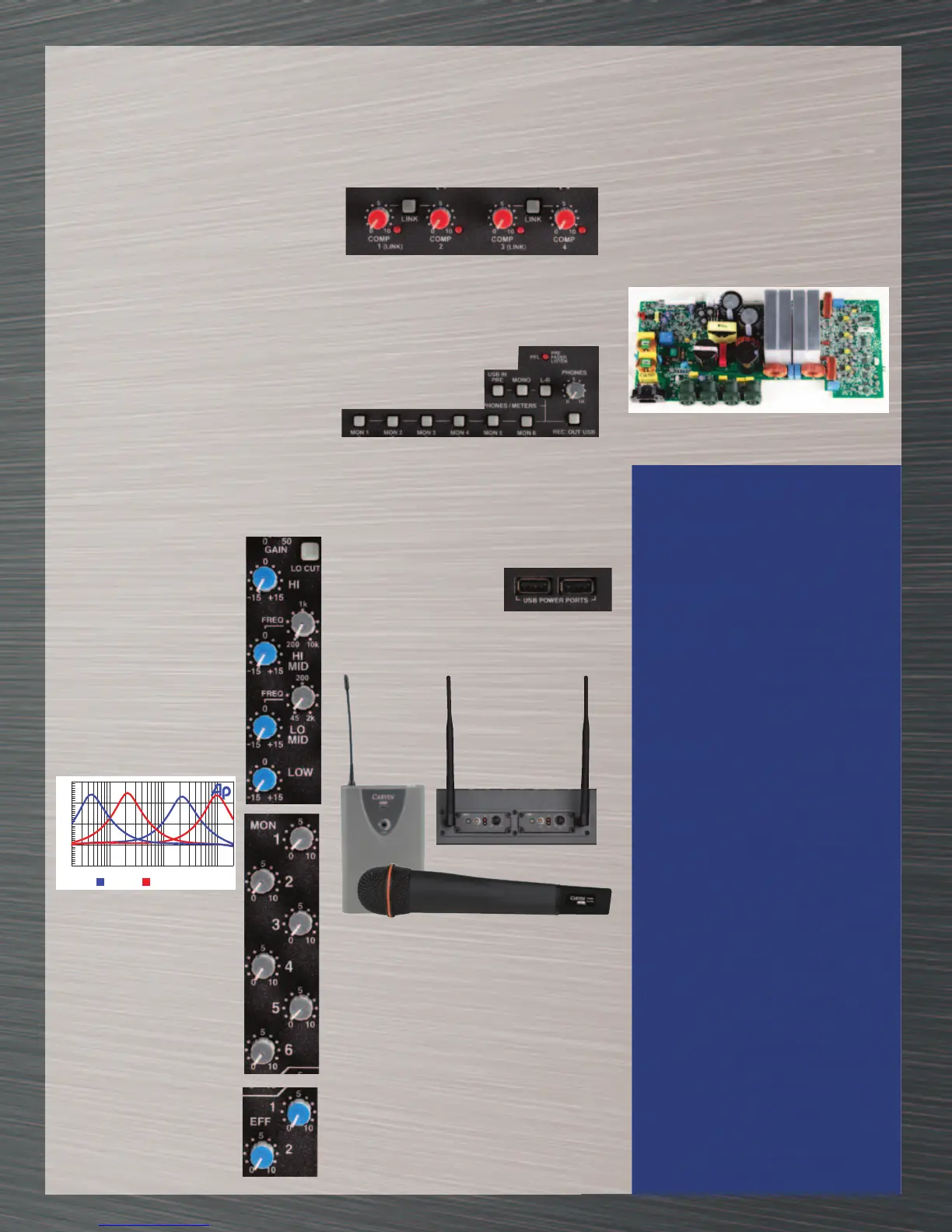

CARVIN C3248 - Key Features

CHANNEL
• 16, 24 and 32 ch models
• 4 Buses + L/R
• 4 Band EQ w dual Mid sweeps
• High pass fi lter
• 6 Ch Monitor Sends
• 2 Ch Effects Sends
• Ch mute/Peak indicator
• Adjustable Gain attenuator
MASTER
• 4 Sub Groups + L/R
• Center/Sub output
• 4 Buses Compressors
• “Link” switches for compressors
• 2 processors – 256 effects each
• Effects to monitors
• 2 9 band L/R-Moinitor EQ’s
• 2 USB power ports
• USB L/R recording output
• USB L/R PC input
• Rear slots for wireless options
(up to 4 mics or beltpacks)
• SwitchMode™ 90-260 VAC input
4 BAND CH EQ
The 4-band Ch equalizer offers both
HF and LF shelving EQ plus two
mid sweeps one for the LO MID
from 80 to 2k Hz and the other for
the HI MID sweep 500 Hz to 10k
Hz. The below chart displays the
mid sweep ranges. You can now dial
in the entire audio spectrum from 6
knobs eliminating undershooting or
overshooting frequencies.
6 CH MONITOR SENDS
6 monitors per channel
allows greater monitoring
capabilities.
2 CH EFFECT SENDS
2 effects sends permit two simu-
lations effects for each channel
utilizing the two on board effects
processor or external processors.
BUSS COMPRESSORS
Each of the 4 Buss (sub-outs) have their own
compressor, which is a great addition to control
peaks such as drums. These professional 1 knob
compressors are designed to hold the level you want.
LINK COMPRESSORS
You may link the compressors together for the
convenience of controlling them in stereo pairs.
STUDIO/HEADPHONE MONITORING
You have your choice of headphone or studio
loudspeaker monitoring of any combination of
the 6 ch monitors, MONO/Center channel, L/R
outputs and USB IN/OUT.
USB POWER PORTS
Convenient USB power
ports allow the recharging
of your iPod™ or the use of our LED desk lights
(sold seperately).
WIRELESS OPTIONS
The exclusive True Diversity USM16 built-in
wireless systems allows up to 4 wireless sys-
tems whether it be mics or belt-pack systems.
This eliminates cable clutter. Each system is
connected with a simple plug-in connector. For
more information, read about the UX16 wireless
products, which is the outboard version of the
USM16. See Carvin.com/USM.
Concert Series Specs
Freq. response: 20-20k Hz ±1 dB
THD distortion: .01% 20-20k Hz
E I N: -117 dBm
S/N Ratio 90 dB
Dynamic Range: 104 dB
Mic Gain: 52 dB
Line Gain: 30 dB
Total Gain: 72 dB (balanced)
Max Output: +28 dBm
Power Req. 90 to 250VAC 50-60Hz
C1648P Power Amp Specs
4 ohms: 500w x 4 (2000w)
8 ohms: 300w x 4 (1200w)
Freq. Resp.: ±0.5dB, 20Hz-20kHz
±1.5dB, 10Hz-25kHz
THD: (50% output) 0.09%
Output Mode: 95% Efficeint Class D
Protection Circuits: Soft Start, Short Circuit,
No Load, SpeakerGuard,
Thermal Shut-Off, Protect
and Clip Indicators,
Amp Peak Limiters
Power Req: 90 to 250VAC 50-60Hz, 1000VA
C1648:
56.3cm W x 41.5cm D x 9.5cm H wt: 8.2kg
22.2”W x 16.3”D x 3.75”H wt: 18.1 lbs
C1648P:
56.3cm W x 41.5cm D x 14.6cm H wt: 11.4kg
22.2”W x 16.3”D x 5.75”H wt: 25.1 lbs
C2448:
76.3cm W x 41.5cm D x 9.5cm H wt: 11.1kg
30.1”W x 16.3”D x 3.75”H wt: 24.5 lbs
C3248:
96.7cm W x 41.5cm D x 9.5cm H wt: 13.4 kg
38.1”W x 16.3”D x 3.75”H wt: 29.5 lbs
POWERED OPTION FOR C1648P
Carvin’s 4 channel DCM2004L amplifier is built-
in to the C1648P to deliver 500w RMS per channel
for a total of 2000w. These very efficient, cool running
Class D amps power the Main L/R speakers and
2 monitor mixes. Or, you can switch to have these
amps power 4 monitor mixes using external
power amps for the main L/R speakers. All amps
feature premium Speakon™/1/4” combo speaker
output connectors. Insert jacks are featured for
additional flexibility.
Built-in 2000w DCM2004L 4 Channel Amp
which only adds 8Lbs.
Mixer Rear Receivers
3
Key Features
-6
+18
-0
+6
+12
d
B
u
20
20k
50
100
200 500 1k 2k
5k
LO Mid
0.001
0.1
0.002
0.005
0.01
0.02
0.05
%
20 20k50 100 200 500 1k 2k 5k
0dBu Mic input to Right out @ 0dBu
HI Mid
