XP2
TWO ENGINE DSP EFFECTS PROCESSOR

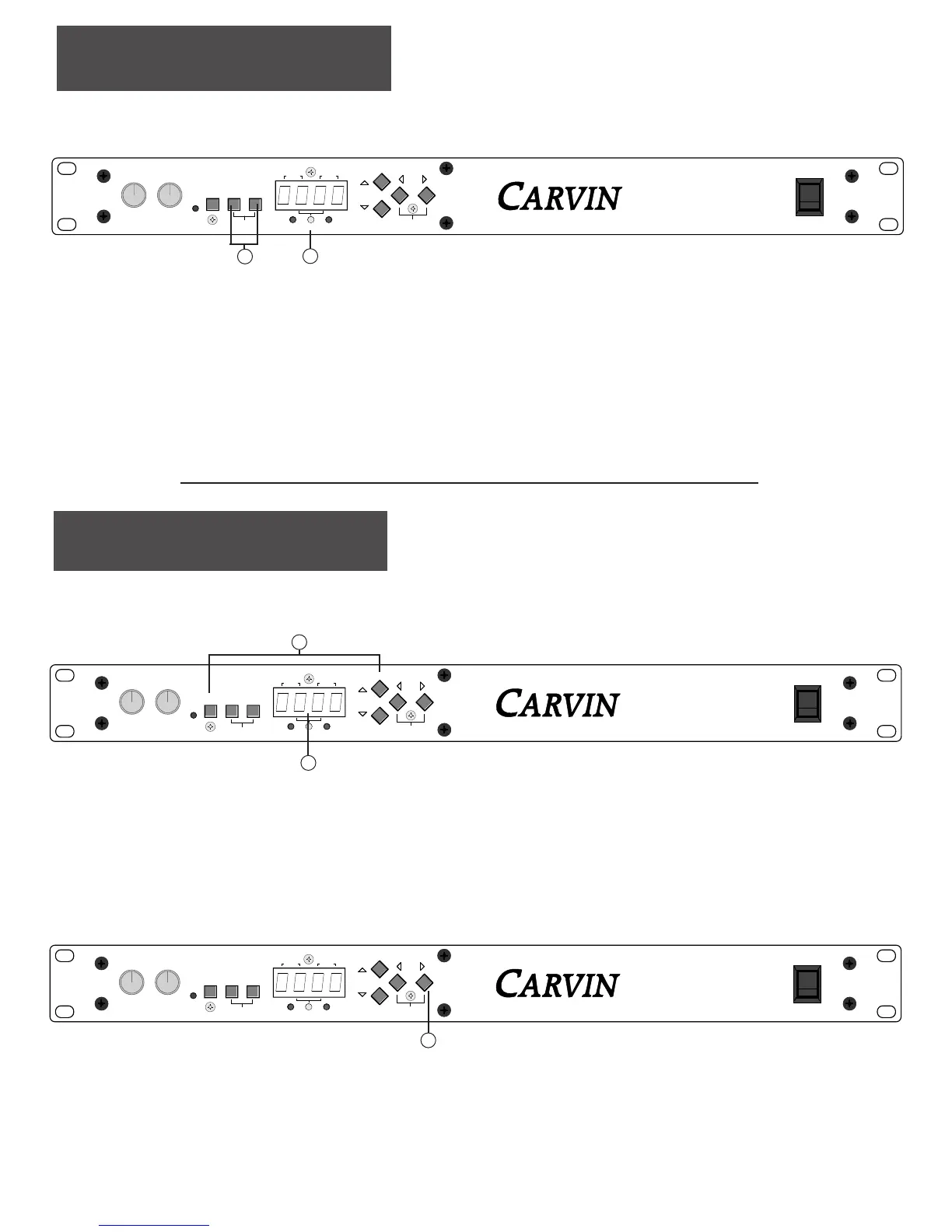

When in the STEREO mode, you have the ability to have 2 independent inputs (L & R Inputs) processed by using
a single parameter control.
1. To engage this mode press EFF1 and EFF2 at the same time.
2. The parameter screen will change to a double-digit with the yellow Stereo LED on to indicate Stereo Mode. All
parameter changes will affect inputs and outputs 1 and 2. Using this function with the XP, gives you the option
of having a dual stereo setup by applying these instructions to EFF3 and EFF4.
STEREO MODE
STEREO MODE
GLOBAL PARAMETERS
GLOBAL PARAMETERS
1
press both simultaneously
2
ON
INPUT
CLIP
OUTPUT
EFF 1 EFF 2
EFF1 EFF2
BYPASS EFF2EFF1
STEREO
EDIT
VALUE
STEREO
5
4
3
2
1
010
9
8
7
6
5
4
3
2
1
010
9
8
7
6
SAVE
(SHIFT)
(COMPARE)
(GLOBAL)
XP2
TWO ENGINE DSP EFFECTS PROCESSOR
1
press both simultaneously
2
1. Press BYPASS/SHIFT button and GLOBAL button to enter Global Parameters.
2. If done correctly "ParA" should appear (abbreviation for "parameters").
3. Scrolling to the right with the right EDIT button will display all the Global Parameters explained below.
To exit this operation simply press either of the EFF buttons.
ENTERING GLOBAL PARAMETERS
ON
INPUT
CLIP
OUTPUT
EFF 1 EFF 2
EFF1 EFF2
BYPASS EFF2EFF1
STEREO
EDIT
VALUE
STEREO
5
4
3
2
1
010
9
8
7
6
5
4
3
2
1
010
9
8
7
6
SAVE
(SHIFT)
(COMPARE)
(GLOBAL)
XP2
TWO ENGINE DSP EFFECTS PROCESSOR
1
bO - BYPASS OPERATION (0 OR 1)
After entering the GLOBAL PARAMETERS function, scroll right with the EDIT buttons. The first parameter you
encounter will be the "bO" operation.
DESCRIPTIONS OF GLOBAL PARAMETERS
8
