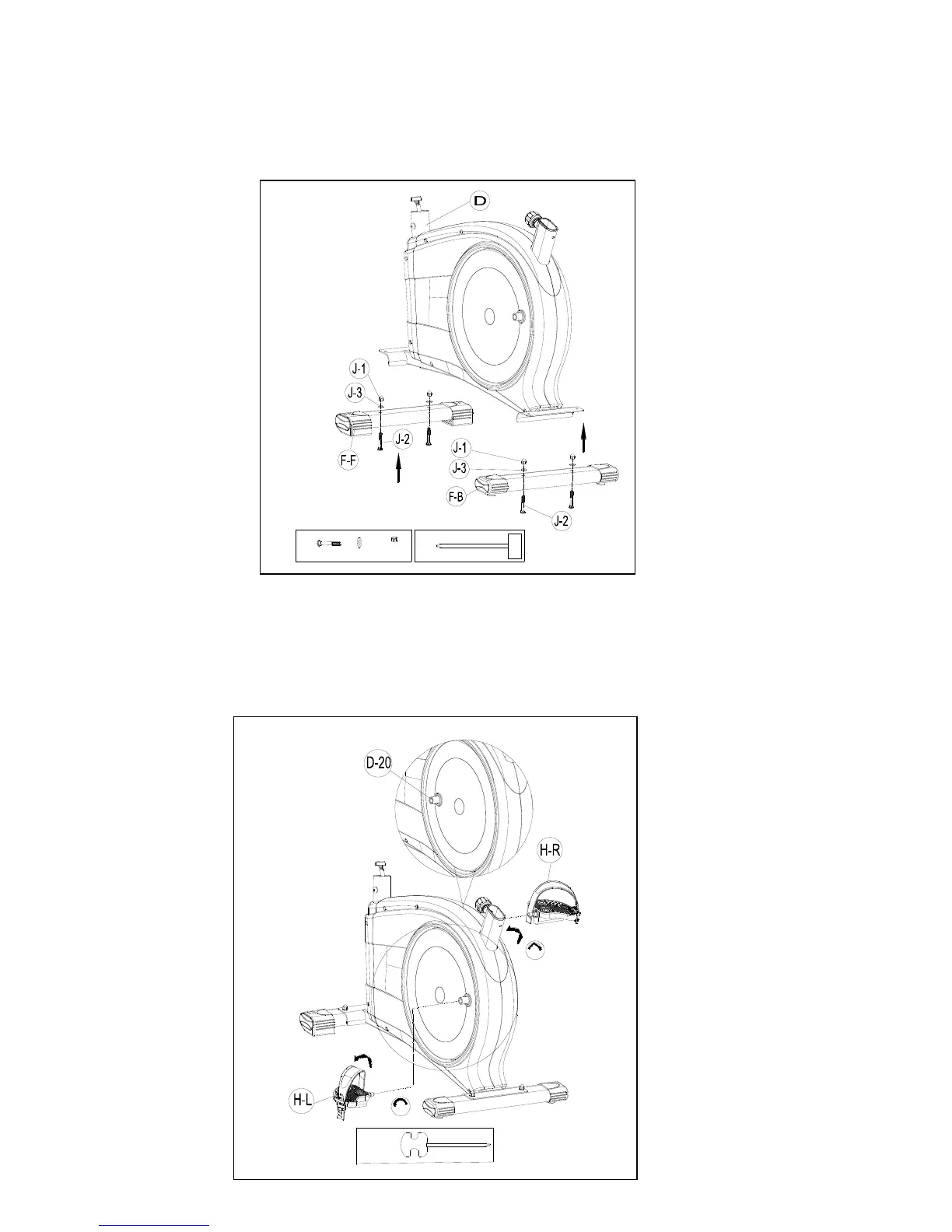

Step 1 Foot Tube Assembly
1. Attach the Front Stabilizer (pt.F-F) to the Main Frame (pt.D) using M8xP1.25x55L Carriage
bolts (pt.J-2), Flat Washers (pt.J-3) and nuts (pt.J-1)
2. Attach the Rear Stabilizer (pt.F-B) to the Main Frame (pt.D) using two M8xP1.25x55L
Carriage bolt (pt.J-2), two Flat Washers (pt.J-3) And two nuts (pt.J-1).
Step 1 Pedal Assembly
1. Assemble the two Pedals (pt.H-R+L) onto the Cross disc (pt.D-20 + D-26) with a screw
driver.
Remarks: Screw the left pedal’s spindle anti-clockwise and the right pedal’s spindle clockwise.
Use a wrench (or screwdriver) to screw the two spindles completely.
4*
M8*55L
Ø8*Ø19*2T
M8
1*
R
L
1*
