Casall EB300 - Bike Assembly Guide; Foot Tube Assembly Steps; Pedal Installation

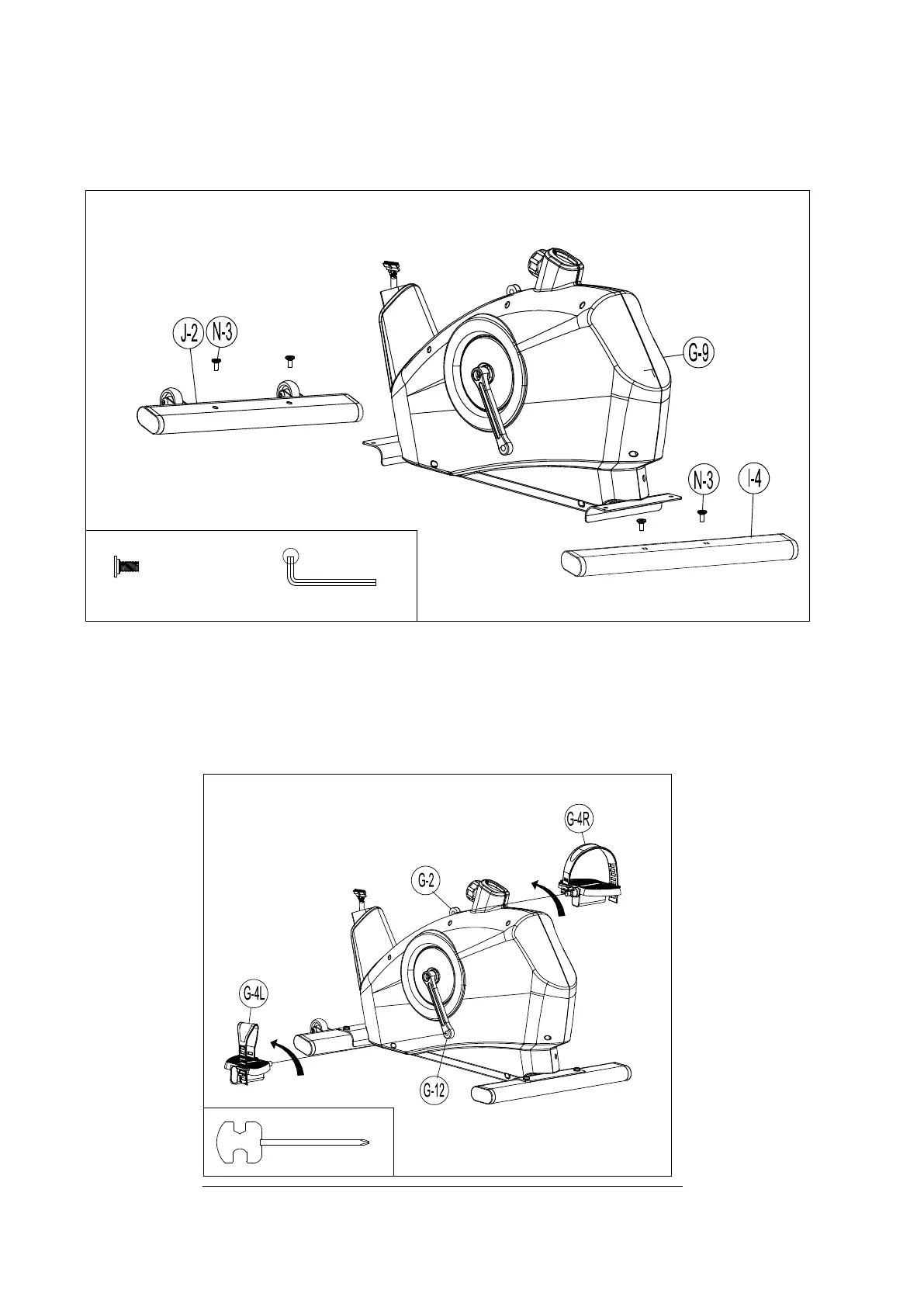

Step 1 Foot Tube Assembly
1. Attach the front stabilizer (J-2) to the main frame (G-9) using two M8x16 Allen bolts (N-3).
2. Attach the rear stabilizer (I-4) to the main frame (G-9) using two M8x16 Allen bolts (N-3).
Step 2 Pedal Assembly
1. Assemble the pedals (G-4 R+L) onto the crank (G-2, G-12) with a screw driver.
Remarks: Screw the left pedal’s spindle counter-clockwise and the right pedal’s spindle clockwise.
Use a wrench (or screwdriver) to screw the two spindles completely.
