Cascade 70D - 5.8 Solenoid Valve

669224-R5
PECIFICATIONS
S
40
GA0403.eps
6.1 Specifications
6.1-1 Hydraulics

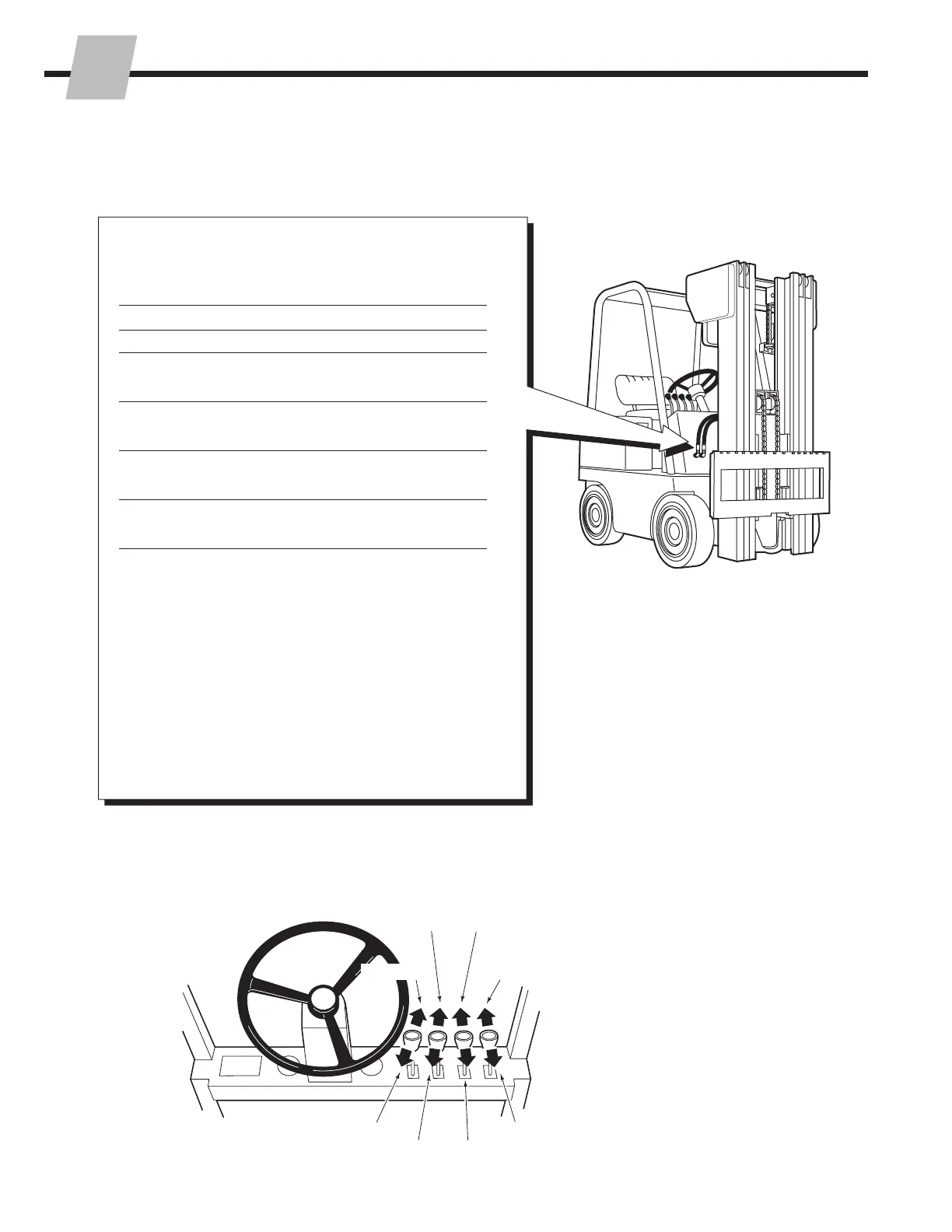

6.1-2 Auxiliary Valve Functions
Check for compliance with ITA (ISO) standards:
Truck Relief Setting
2000 psi (140 bar) Recommended
2300 psi (160 bar) Maximum
Truck Flow Volume
➀
Min.
➁
Recommended Max.
➂
25D
4 GPM
(15 L/min.)
5.5 GPM
(21 L/min.)
5.5 GPM
(21 L/min.)
35D
4 GPM
(15 L/min.)
7 GPM
(26 L/min.)
7 GPM
(26 L/min.)
40D, 50D
4 GPM
(15 L/min.)
10 GPM
(38 L/min.)
10 GPM
(38 L/min.)
70D, 80D, 100D
7 GPM
(26 L/min.)
12 GPM
(45 L/min.)
15 GPM
(57 L/min.)
➀ Cascade D-Series Clamps are compatible with SAE 10W petroleum
base hydraulic fluid meeting Mil. Spec. MIL-0-5606 or MIL-0-
2104B. Use of synthetic or aqueous base hydraulic fluid is not
recommended. If fire resistant hydraulic fluid is required, special
seals must be used. Contact Cascade.
➁ Flow less than recommended will result in unequal arm movement.
➂ Flow greater than maximum can result in excessive heating,
reduced system performance and short hydraulic system life.
Hoses and Fittings
Clamp Function – All hoses and fittings should be at least
No. 8, minimum internal diameter of 13/32 in. (10 mm).
Sideshift Function – All hoses and fittings should be at
least No. 6, minimum internal diameter of 9/32 in. (7 mm).
GA0082.eps
Hoist Down
Hoist Up
Tilt Forward
Tilt Backward
Sideshift Left
Sideshift Right
Open
Clamp
