Cascade F Series Installation Instruction

This Manual provides instructions for installing the Cascade
90FX-Series Paper Roll Clamp on lift trucks.
Follow the suggested installation procedures for best
results. If you have any questions or need more information,
contact your nearest Cascade Service Department
(see back cover).
Read the WARNING Statements placed throughout this
Manual to emphasize safety during installation.
IMPORTANT: Field alterations may impair performance or
capability and could result in loss of warranty. Consult
Cascade for any required modifications.
ONTENTS
C
The FX-Series Swing Frame Paper Roll Clamp requires two
(2) hydraulic circuits over the mast to provide three (3)
functions CLAMP, ROTATE and SWING on the Attachment.
No solenoid adaption is required. Recommended hydraulic
supply arrangement is A and B, or C. Refer to Cascade
Hose and Cable Reel Selection Guide , Part No. 212199, to
select the correct hose reel for the mast and truck. Hose
and fitting requirements are:
• No. 8 with .400 in. (10 mm) minimum I.D. for both CLAMP
and ROTATE/SWING functions.
A and B
RH and LH THINLINE
™
2-Port Hose Reel Groups.
OR
C
Mast Double Internal Hose Reeving Group.
OR (optional)
A or B and C
LH or RH THINLINE™ 2-Port Hose Reel Group and
Mast Single Internal Hose Reeving Group.
B
A

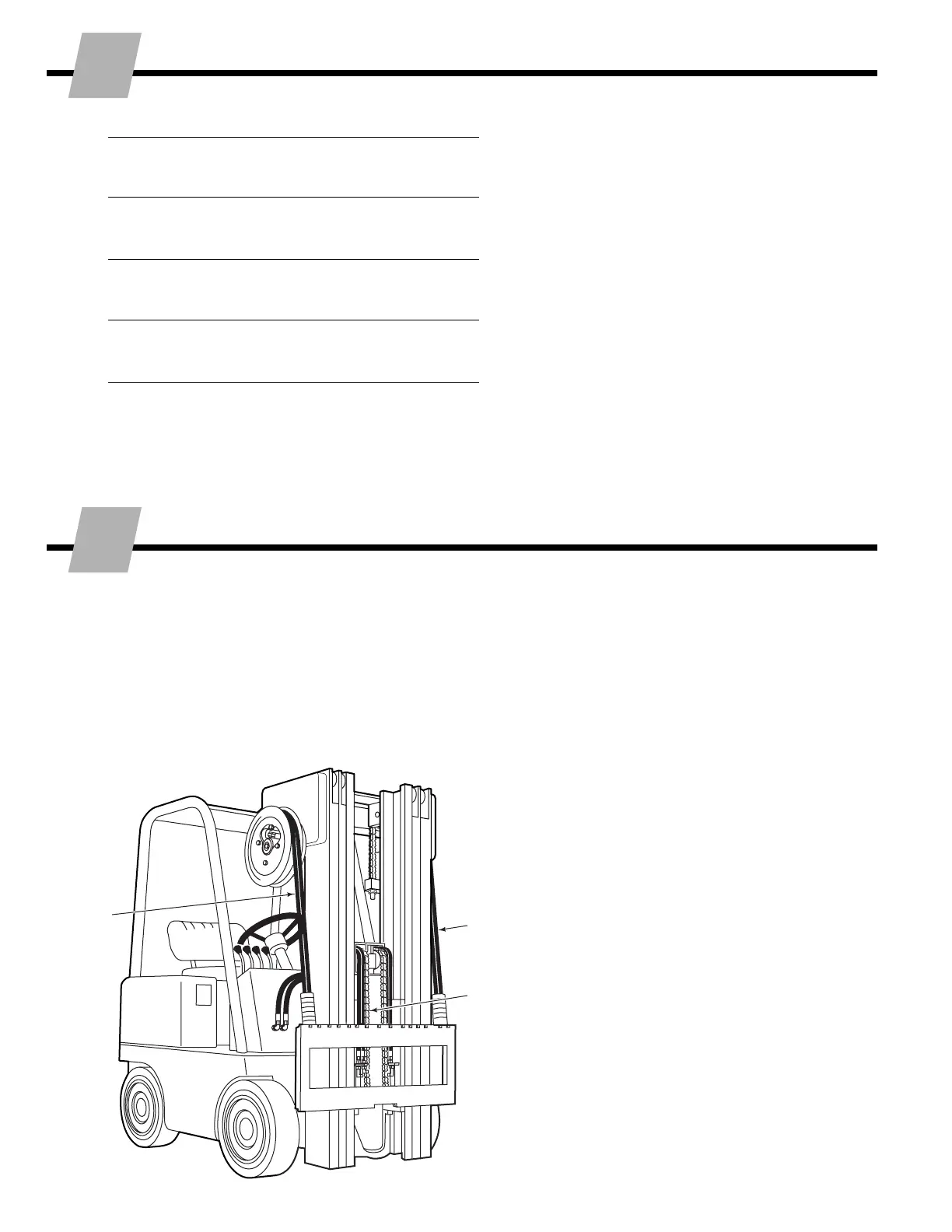

GA0033.ill
C
ECOMMENDED HYDRAULIC SUPPLY
R
i 6028021 Rev. 1
Recommended Hydraulic Supply i
Truck Requirements 1
Installation 2
Periodic Maintenance 11
