Cascade H Series User Manual

1
6095756-R2 EN
SPECIAL DEFINITIONS
RECOMMENDED HYDRAULIC SUPPLY
The statements shown appear throughout this manual
where special emphasis is required. Read all WARNINGS
and CAUTIONS before proceedings with any work.
Statements labeled IMPORTANT and NOTE are special
information that is useful when servicing the attachment.
WARNING – A statement preceded by a
WARNING is information that should be
acted upon to prevent bodily injury. A
WARNING is always inside a ruled box.
CAUTION – A statement preceded by CAUTION is
information that should be acted upon to prevent machine
damaged.
IMPORTANT – A statement preceded by IMPORTANT is
information that possesses special significance.
NOTE – A statement preceded by NOTE is information that
is handy to know and may make the job easier.

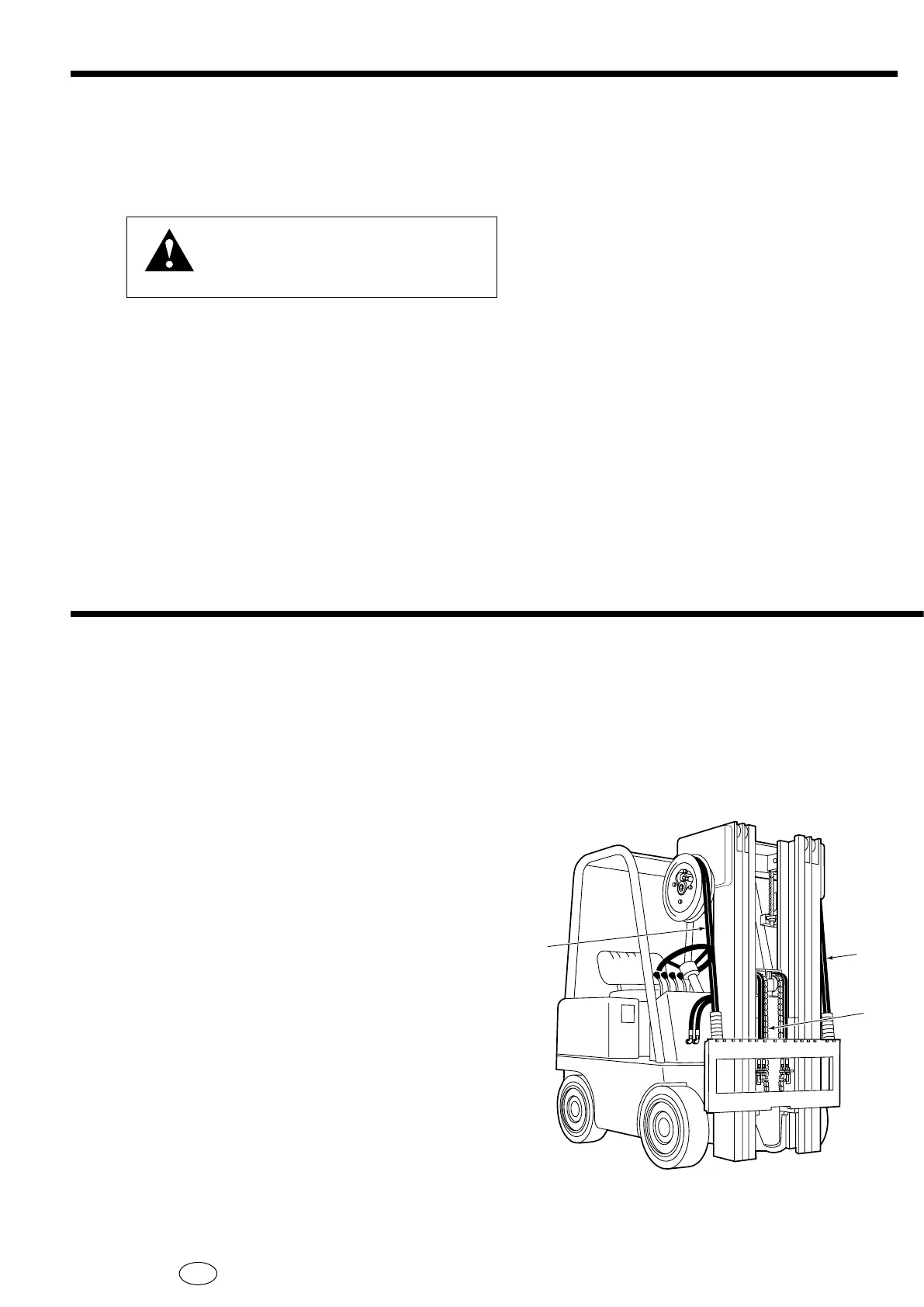

H-Series Swing Frame Paper Roll Clamps will require one
of the hydraulic arrangements shown. Refer to Cascade
Hose and Cable Reel Selection Guide, Part No. 212199,
to select the correct hose reel for the mast and truck. The
hose and fitting requirements are:
• Rotate Function – Hoses and fittings should be No. 8
with 10 mm minimum ID.
• Clamp & Swing Functions – Hoses and fittings should
be No. 8 with 10 mm minimum ID, except for internal
reeving arrangements where hoses and fittings may be
No. 6 minimum with 7 mm minimum ID.
A and B
RH THINLINE
TM
2-Port Hose Reel Group and
LH THINLINE
TM
4-port Hose Reel Group
OR
A,B and C
RH and LH THINLINE
TM
2-port Hose Reel Groups and
Mast Single Internal Hose Reeving Group
OR
A and C
RH THINLINE
TM
2-Port Hose Reel Group and
Mast Double Internal Hose Reeving Group
GA0033.eps
A
B
C
CAUTION: Rotate function supply circuit back pressure
exceeding 35 bar and a maximum flow rate of 54 L/min.
can result in excessive oil heating, reduced attachment
performance and shortened hydraulic system life.
Check for restrictions such as numerous fittings and
fitting/hose sizes less than No. 8.
Weighted Emission Sound Pressure Level - Weighted
emission sound pressure level (LA) does not exceed 70
dB(A).
Measured Value of Whole Body Vibration - Measured
value of whole body vibration (m/s
2
) does not exceed 0,5
m/s
2
.
Measured Value of Hand-Arm Vibration - Measured value
of hand-arm vibration (m/s
2
) does not exceed 2,5 m/s
2
.
