INSTALLATION
5
6095756-R2 EN
6

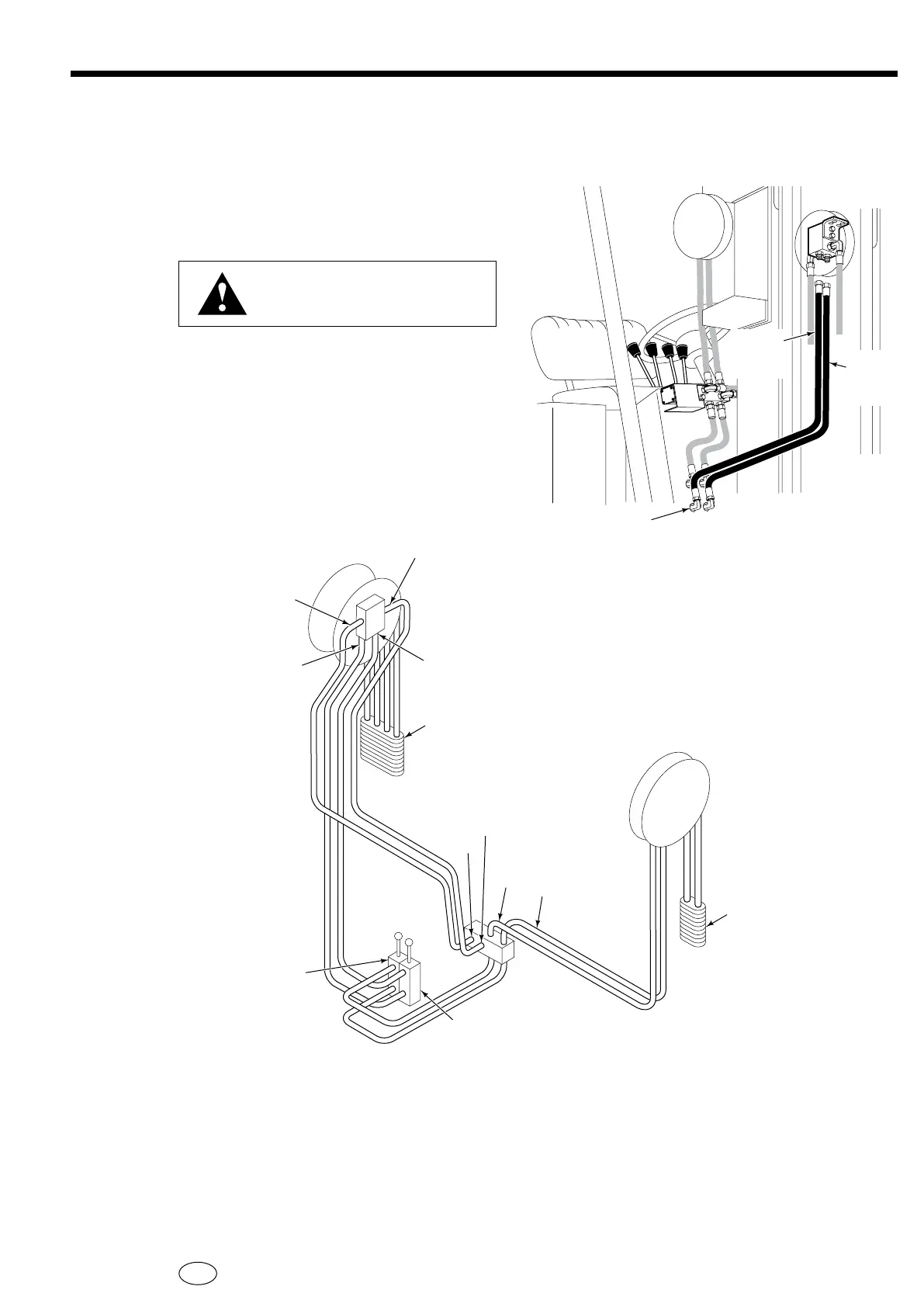

Clamp Function – Measure and assemble two
hoses (user-supplied) to run from the truck valve
ports to the LH 4-port hose reel 1 and 2 ports.
Install hoses.
WARNING: The hose operating
the OPEN function must connect to
Port 1 on the 4-port hose reel.
RC0730.eps
LH 4-Port
Hose Reel
OPEN
function
(Port 1)
CLAMP
function
(Port 2)
Truck Auxiliary
Valve Ports
RC0731.eps
1
3
2
4
C2
C1
C4
C3
T
P
Truck Auxiliary
Valve with
pushbutton
(ROTATE and
SWING
Truck Auxiliary
Valve (CLAMP)
ROTATE
Function
Carriage
Hose
Terminal
RH 2-Port
Hose Reel
Solenoid-operated
Control Valve
SWING
Function
LH 4-Port
Hose Reel
CLAMP/OPEN
Function
Installation with RH 2-Port and LH 4-Port
Hose Reels (Continued)
