7929 SW Burns W
ay
Phone: 503 344
-
5085
Suite F
Wilsonville, OR
sales@cascadiamotion.co
m
1/14/2021
RMS PM Hardware
User Manual
41
of
54
3.
7
.4

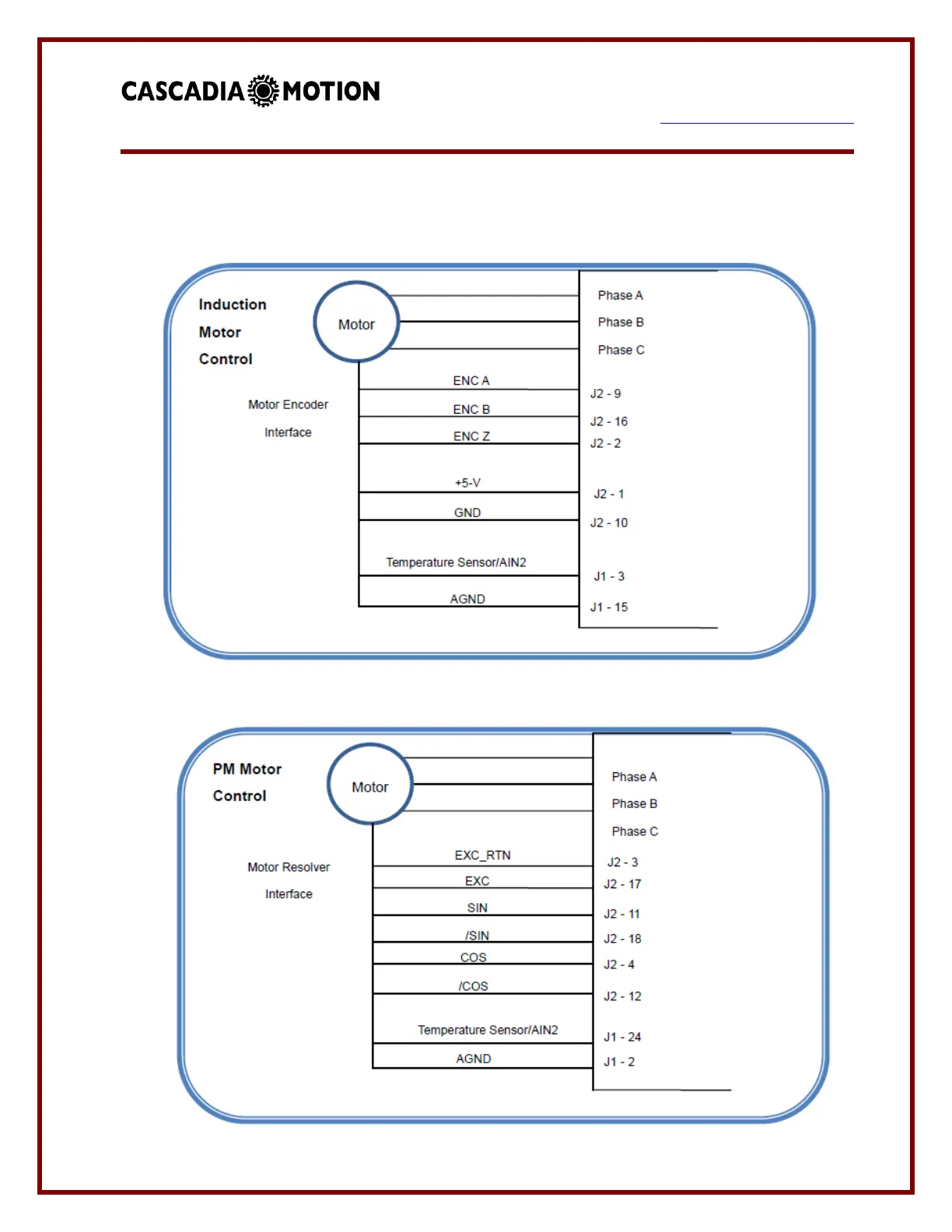

Motor Control (T
ypical
Wiring)
Only PM100/PM150 Pins are shown.
Refer to motor specific manuals for details.
40
42
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety First
3
2 Functional Overview
4
3 Installing the Pm Drive
5
Liquid Cooling Connections
7
PM100/PM150 External Signal Connectors
10
J1 - 35P AMPSEAL Plug 776164-1 with Crimp Contact 770854-1
10
J2 - 23P AMPSEAL Plug 770680-1 with Crimp Contact 770854-1
12
PM250 External Connections
13
RM100 Signal Connections
16
RM300 Signal Connections
18
PM500 Signal Connections
21
CM200 Signal Connector
24
External Power Connections
28
DC+ / DC
28
Phase a / Phase B / Phase C
30
Pre-Charge Circuit
30
Main Contactor
32
Main Fuse
32
Passive Discharge of the High Voltage DC Bus
32
Power
33
Grounding
35
Typical Application Wiring Diagram
36
Controller 12V Power Wiring
37
Pre-Charge Circuit
39
Analog/Digital Vehicle Control
40
Motor Control (Typical Wiring)
41
CAN Interface
42
RS-232 Interface
42
Encoder Interface (Not Included on RM100/RM300)
43
Resolver Interface
44
4 Vehicle Interface Setup
45
Analog Inputs
45
