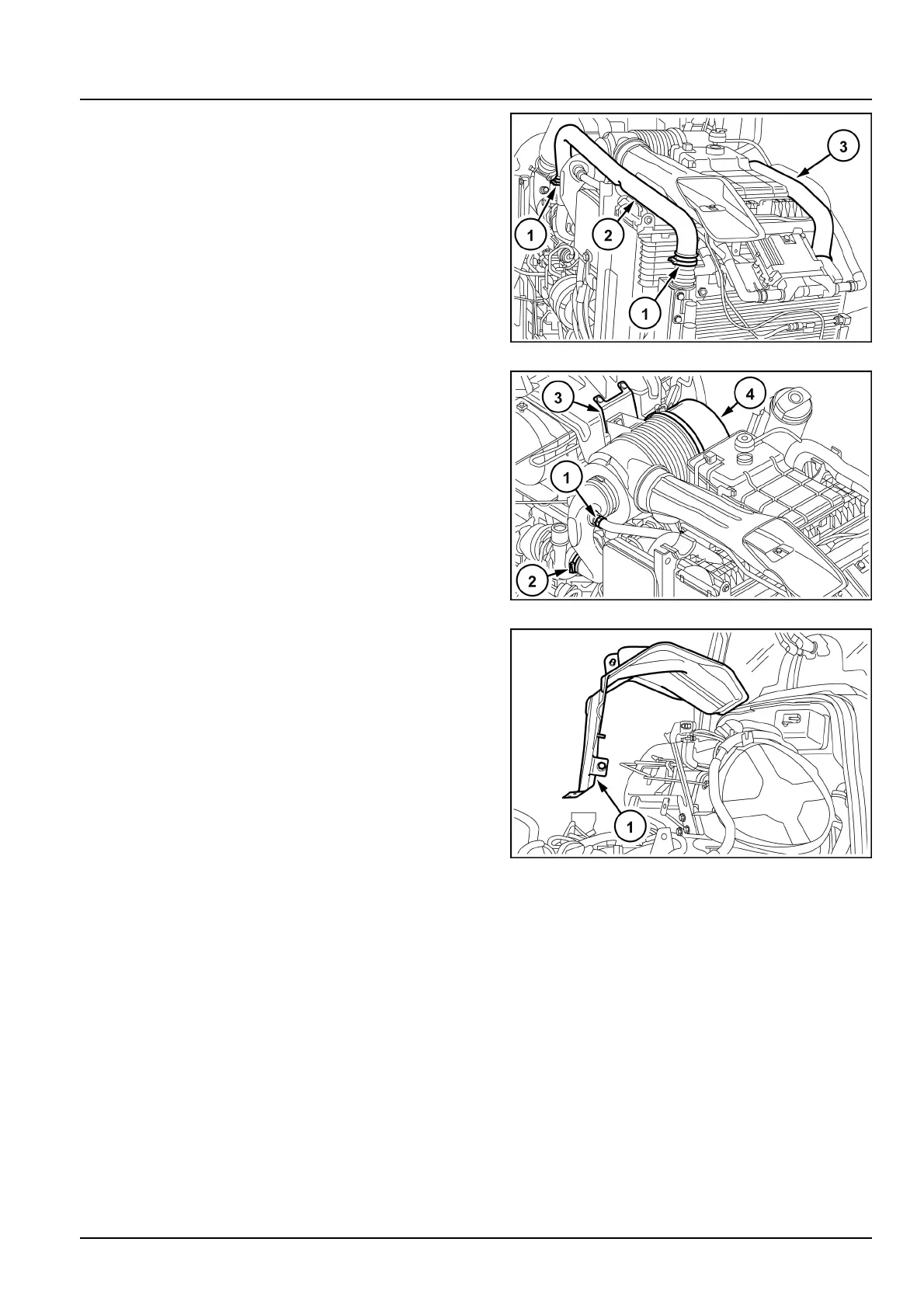

Engine-Engineandcrankcase
18.Loosenthexingclamps(1)andextractthepipe
fromtheturbinetotheradiatorintercooler(2).
Carryoutthesameoperationforthepipefromthe
radiatorintercoolertotheengine(3).
WLAPL4S10C119A17
19.Loosentheclamp(2)fasteningtheairintakepipe
totheturbine,thenfreetheaircleaner(4)together
withthesupportbracket(3)fromthescrewsxingit.
Disconnecttheoilvaporpipe(1)ontheleft-handside
oftheengineatthelevelofthefuelpump;removeit
all.
WLAPL4S10C120A18
20.Freetheaircleanerbracket-casingsupport(1)from
thexingscrewsandremoveit.
WLAPL4S10C121A19
ATTENTION:ThelteroutletunionDPF(1)(2)atitsterminalhasadecoupler,thatrespondstotemperaturevariations
bychanginglength.
Asmallmisalignmentoftheaxisofthedecouplerwithrespecttotheaxisoftheturbineoutlet(3)wouldproduce
anadjustmentthatwouldnolongerbelengthwise,inlinewiththedirectionofthetractor,butabnormaltransversal
adjustmentthatwouldimpairitsdurability.
