Engine-Engineandcrankcase

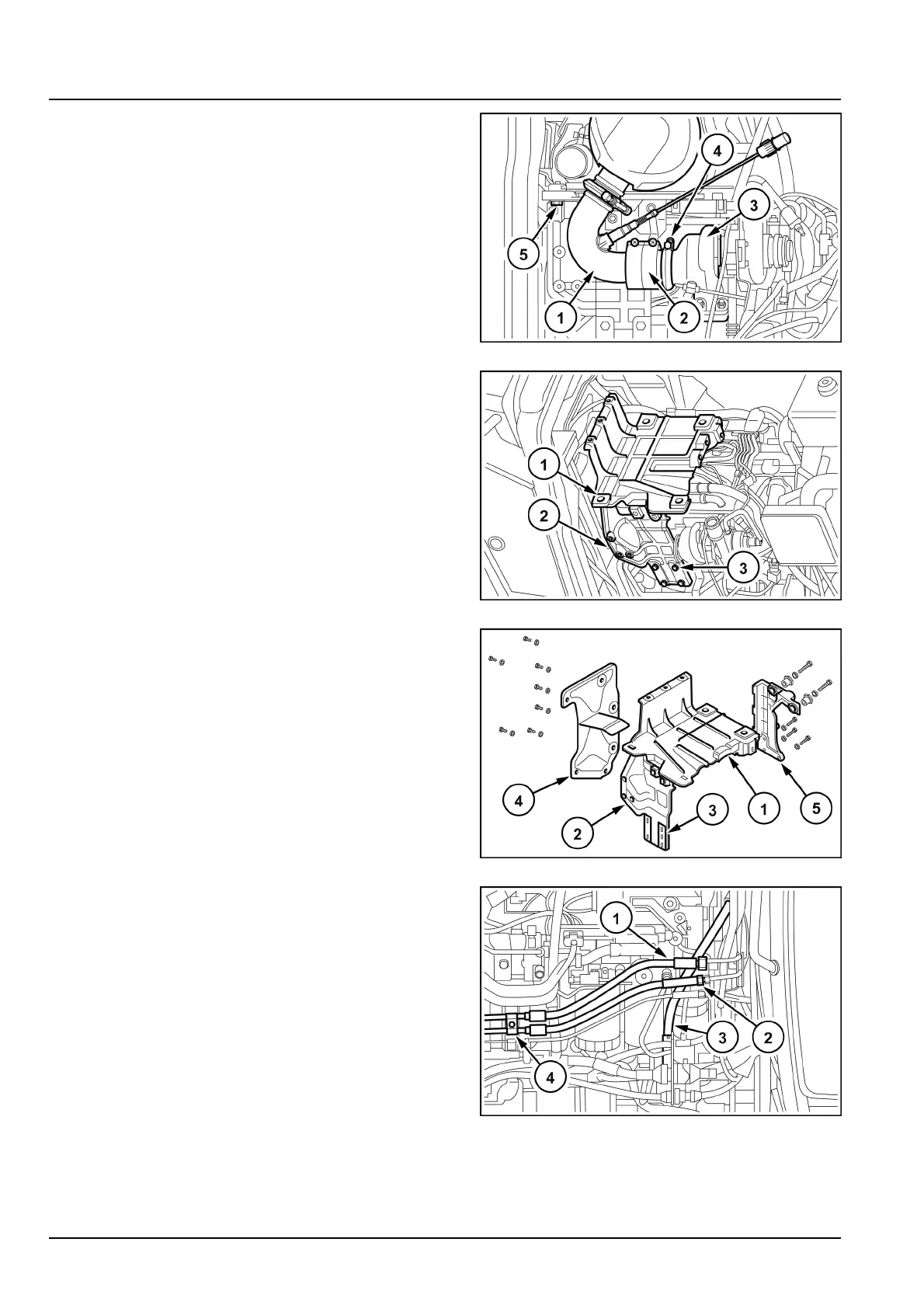

21.Disconnectalltheltersensors,loosentheclamp
(4),removetheentireltertogetherwiththesen-
sors,pressuresensingtubes,lambdaprobeand
heatguardsbyundoingthefourscrews(5)xingit
onthebottomcradle.
WLAPL4S10C122A20
ATTENTION:Onlyifyouhavetoworkonthepartsunder-
neaththeDPFsupport,itisadvisabletoremovethesup-
port.
Thetoppart(1)andtheright-handpart(2)shouldbere-
movedasablock,whenpossible,byremovingthexing
screws(3)totherightoftheengine(thesescrewsworkon
averticalslotthatallowsthesupport(2)totakeonvarious
positionsinheight).Beforedisassembly,takesomeref-
erencesonthepositionoftheunitontheengine,sothat
duringreassemblyitispossibletorestoreittotheexact
positioninwhichitwasrstfound.
WLAPL4S10C123A21
22.Toremovetherearguard,unscrewthetwoupper
screwsfasteningthesupport(4)support(1),tore-
movetheleftsupport,(5)unscrewthetwoupper
screwsforthecenteringbushingsandthatsecure
theleftbrackettothesupport(1).
Asregardsremovingthesupport(1)and(2)there
arenospecialinstructionstofollow.
WLAPL4S10C124A22
23.Detachthesteeringsystempipes(1)and(2)thepipe
deliveringoiltothespoolvalve(3).
Removethexingsofthebracket(4)fromtheengine
WLAPL4S10C125A23
4753161807/05/2013
10.1[10.001]/10
