Engine-Engineandcrankcase

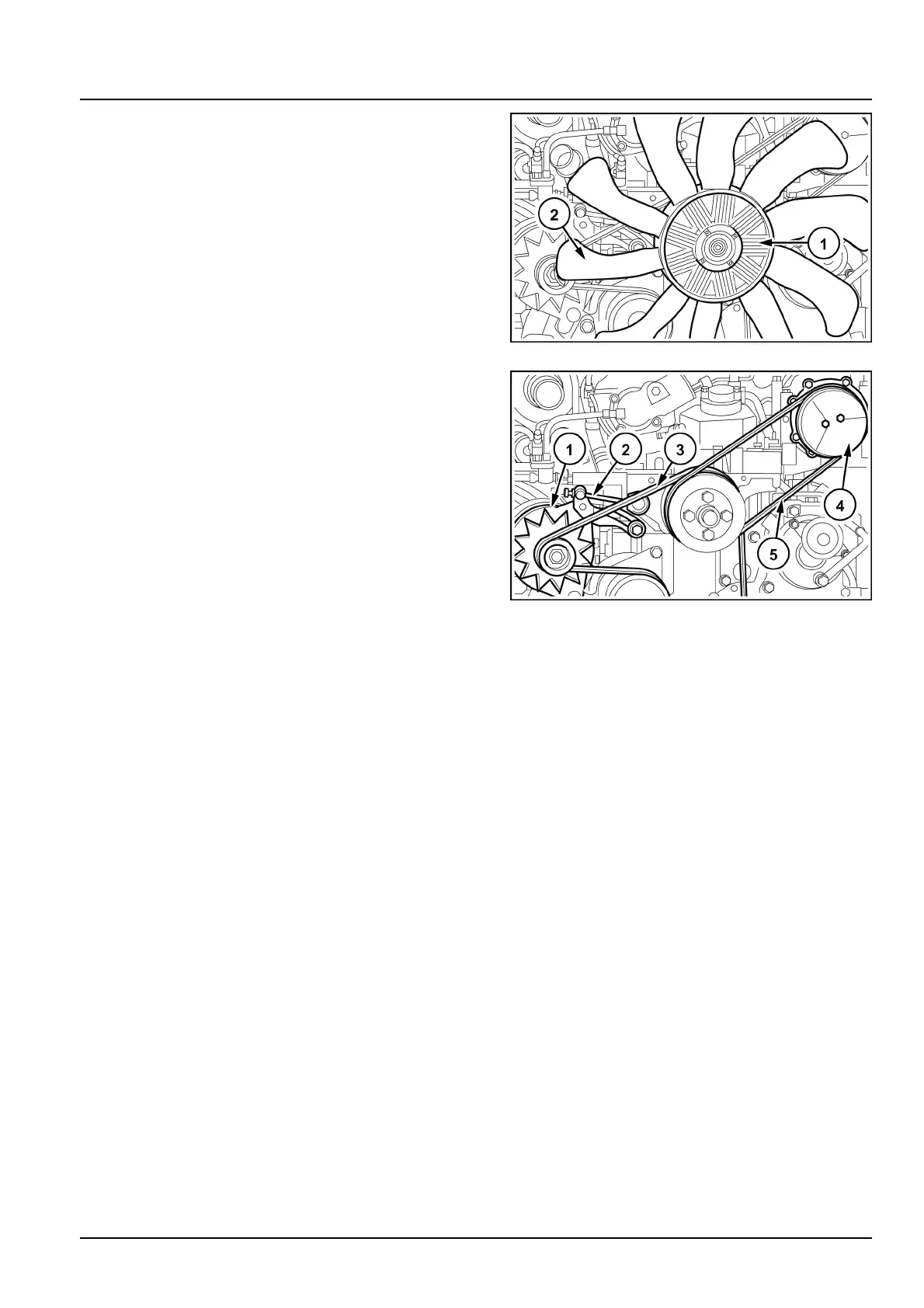

46.Removetheviscouscoupling(1),whereapplicable,
togetherwiththefan(2).
WLAPL4S10C144A40
47.Loosenthecompressorxingscrews(4),removethe
belt(5),thenremovethecompressor.
48.Completelyunscrewthebelttensioner(2),remove
theexiblebelt(3),thenremovethealternator(1).
WLAPL4S10C145A41
4753161807/05/2013
10.1[10.001]/15
