Case IH 3340 - Connect Harness to Power;CAN Controls

P/N 016-0230-129 Rev. A 35
WIRING INSTALLATION
CONNECT THE HARNESS TO THE POWER/CAN CONTROLS
90’-100’ BOOMS

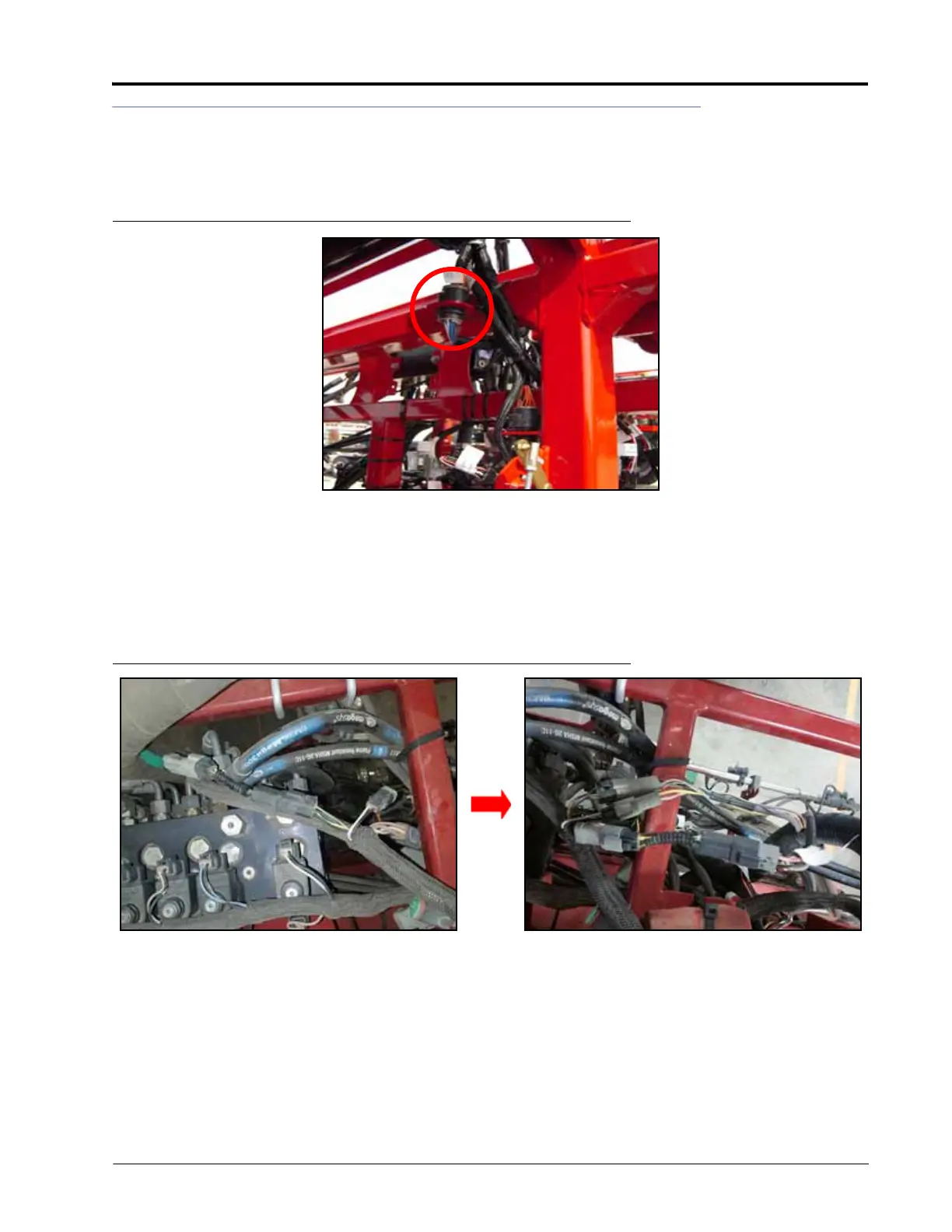

FIGURE 3. AutoBoom Harness Cable Installed
1. Locate the machine’s harness cable bulkhead on the center boom section, near the pressure transducers on the
sprayline.
2. Disconnect the machine’s cable from the bulkhead connector.
3. Attach the appropriate ends of the AutoBoom harness cable (P/N 115-0230-073) to the machine’s cable and
the bulkhead connector
FIGURE 4. CAN and Logic Power Connections
1. Locate the machine’s CAN and auxiliary power connectors on the top of the center rack, near the machine’s
hydraulic valve.
2. Connect the machine’s CAN connector to the CAN tee on the AutoBoom harness cable (P/N 115-0230-073).
3. Reconnect the machine’s harness or the CAN terminator on the other end of the CAN tee.
