Case IH 3340 - Hydraulic Installation Kit

2
P/N 016-0230-129 Rev. A 11
INTRODUCTION
HYDRAULIC INSTALLATION KIT
Bolt - 3/8”-16 UNC x 1-1/4” Hex 311-0054-081 15
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 31
Washer - 5/816” Zinc Lock 313-1000-019 4

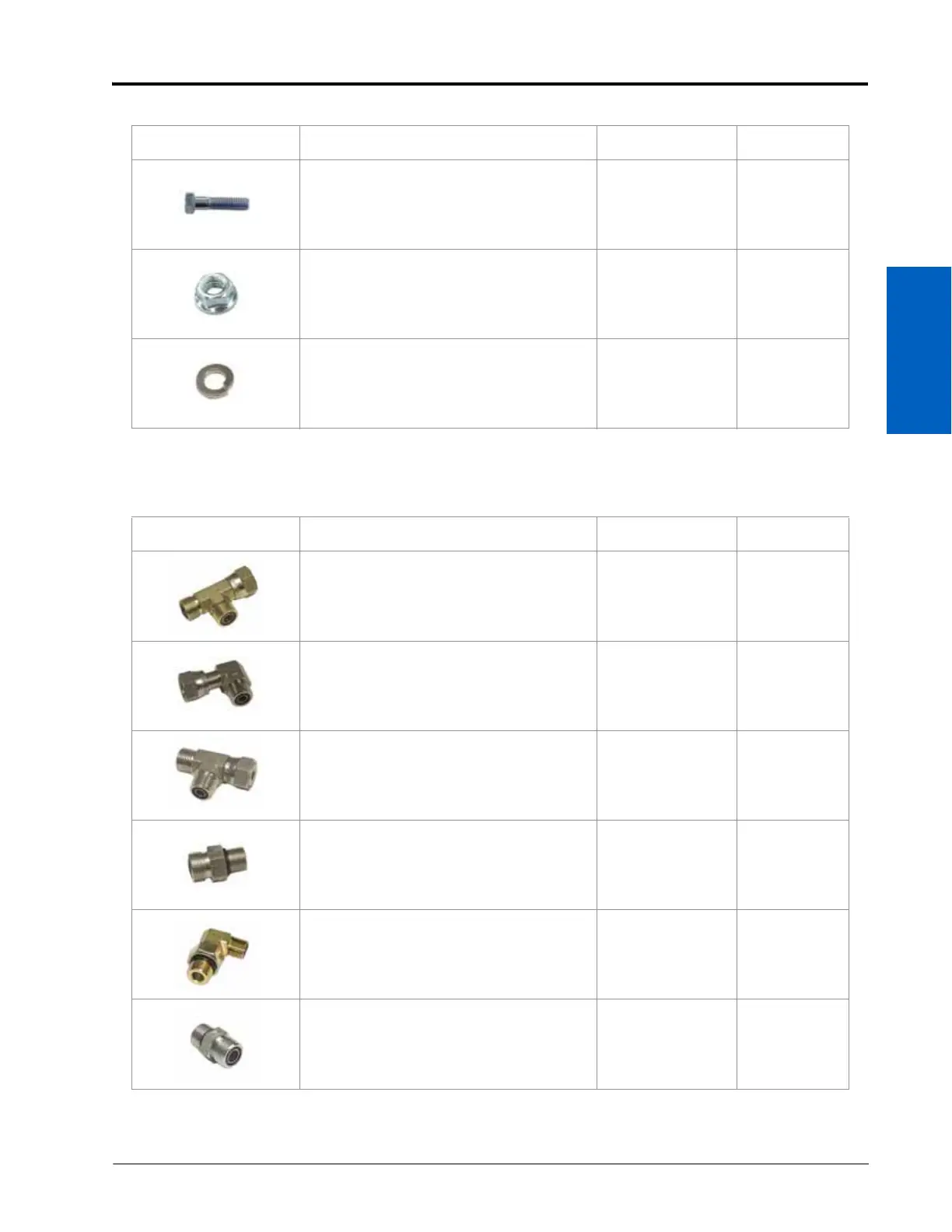

TABLE 3. Hydraulic Kit (P/N 117-0134-075)
Picture Item Description Part Number Qty.
Fitting - -8 ORFS M/M/F Swivel Run Tee 333-0012-028 2
Fitting - -6 ORFS M/F 90° Swivel Elbow 333-0012-065 2
Fitting - -6 ORFS M/M/F Swivel Run Tee 333-0012-069 4
Fitting - -6 ORFS (M) to -6 SAE O-Ring
(M) Straight Adapter
333-0012-084 2
Fitting - -6 ORFS (M) to -8 SAE O-Ring
(M) 90° Elbow
333-0012-165 2
Fitting - -8 ORFS (M) to -8 SAE O-Ring
(M) Straight Adapter
333-0012-168 2
TABLE 2. UltraGlide Installation Kit (P/N 117-0232-129)
Picture Item Description Part Number Qty.
