Engine-Engineandcrankcase

VisualexternaldifferencesforMagnum™tractorengines

ThereareafewthingsthatmaketheFPTCursor®9engineusedintheMagnum™tractorsvisuallyandmechanically

differentfromotherCursor®9applications.

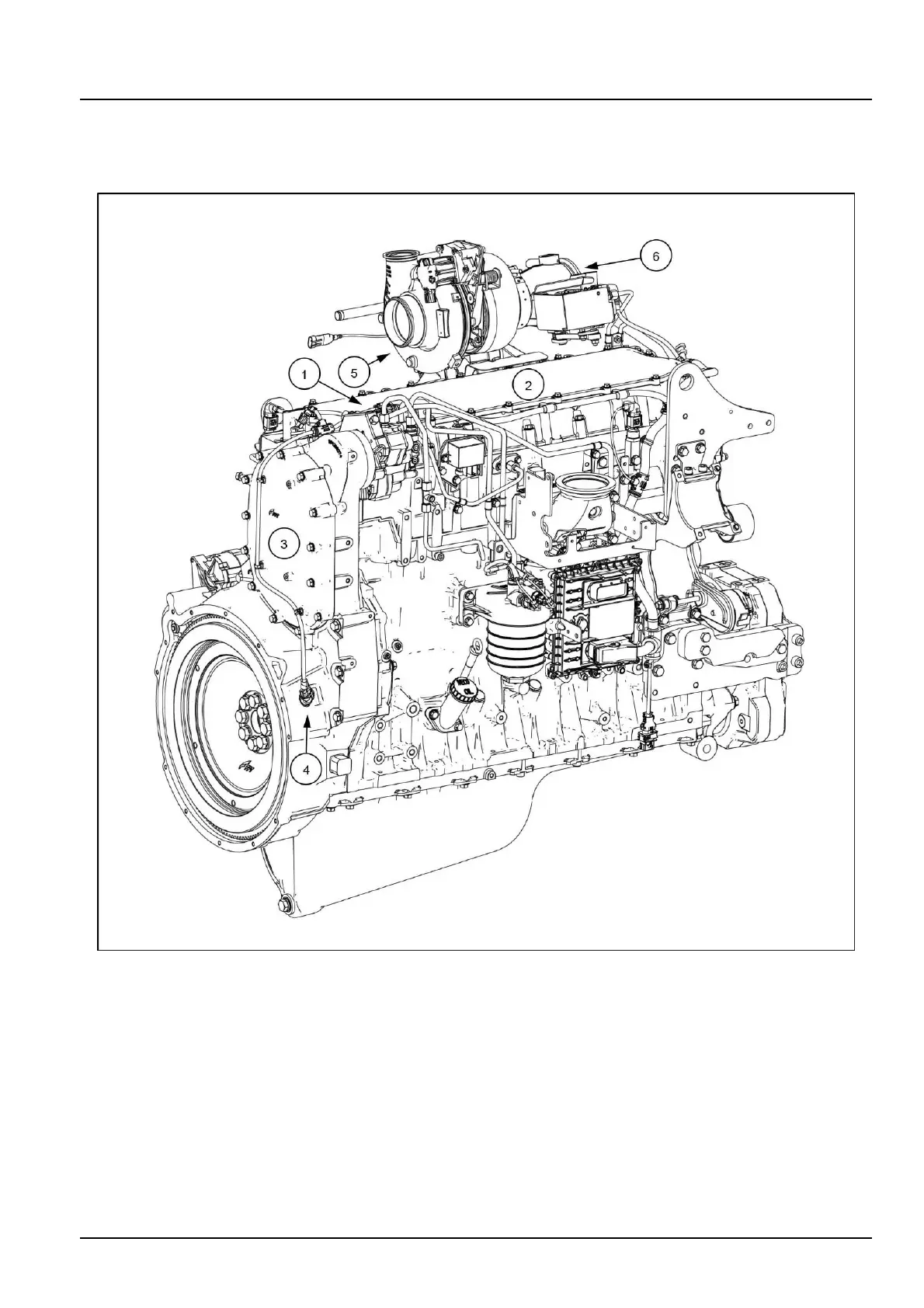

RAIL15TR00608GA3

1.Thefuelpumpsitshigherandclosettothecenterlineoftheengine.

2.Atwopiecevalvecoverassemblythatallowsforvalveadjustmentwithoutremovingtheentirecover.

3.TherearcoverisanovalshapewhereonotherCursor®9enginesit’sround.

4.Theywheelspeedsensorislocatedontherightsideoftheengine,othershaveontheleftsideoftheengine.

5.Theturbochargerismovedhigherandtowardthecenterlineoftheengine.

6.ExhaustapforTIER4B.
