Engine-Engineandcrankcase

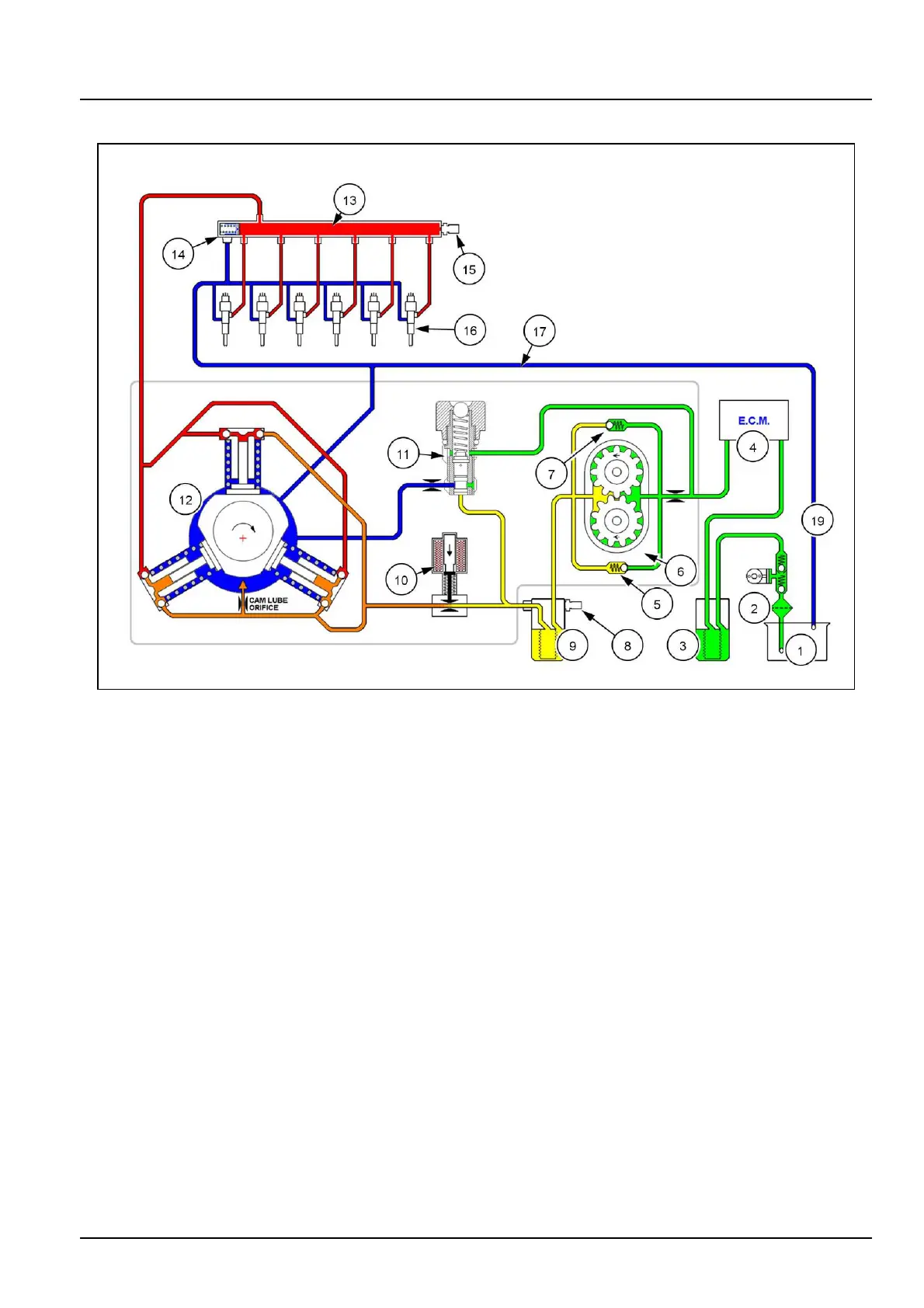

Fuelsystem
RAIL15TR00414GA28
1)Inletfromtank10)Regulator(Mprop)valve
2)Liftpump11)5.0bar(72.5psi)reliefvalve
3)Primaryfuellter12)Highpressurepump
4)Enginecontrolmodule13)Commonrail
5)13.8–34.5kPa(2.0–5.0psi)2-5psicheckvalve14)Highpressurerelief
6)Gearpump15)Railpressuresensor
7)5.0bar(72.5psi)reliefvalve16)Injector
8)Fueltempsender17)Returnline
9)Secondaryfuellter18)Cooler
19)Filter/separator(option)
5143149922/02/2018
10.1[10.001]/21
