Engine-Engineandcrankcase

CommonRail

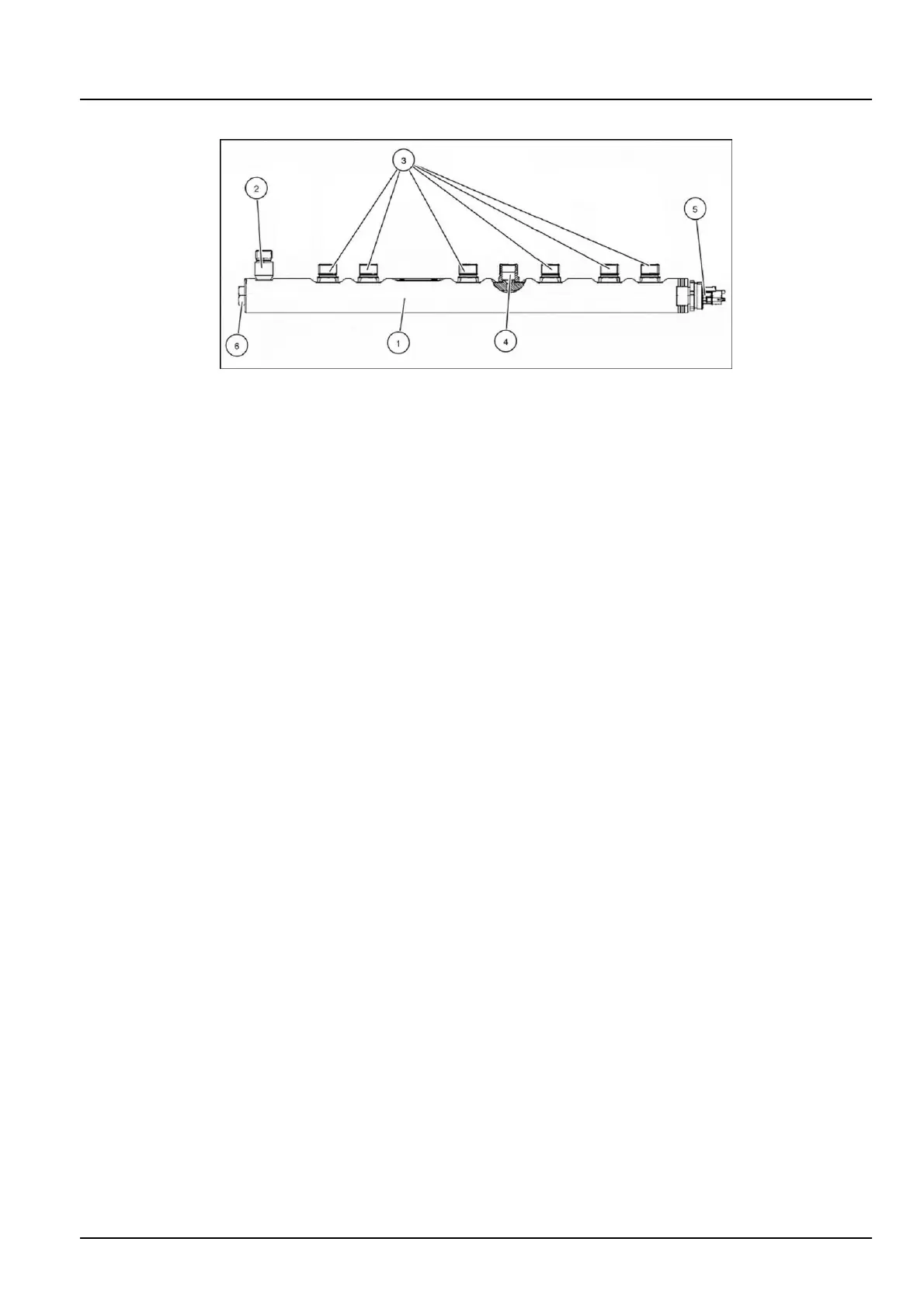

RAIL15TR00399EA41

1)Commonrail3)Connectortoinjectors5)Fuelpressuresensor

2)Fuelreturn4)Fuelsupply6)Reliefvalve

Thevolumeofthecommonrailisrelativesmalltoallowquickpressurebuildupatcrankingandstartup,atidle,and

incaseofhighowrates.

Therailhasenoughvolumetominimizepressurespikescausedbytheopeningandclosingoftheinjectorsandthe

operationofthehighpressurepump.

Thefuelpressuresensor(5)sendsasignaltotheECU;thisisfeedbackinformationinthecalculationofthePWM

signalsenttotheregulatorvalve.

Thereliefvalve(6)openat1850-1950bar(29825-28275psi)

5143149922/02/2018

10.1[10.001]/31
