Engine-Engineandcrankcase
Fuelsystemtesting

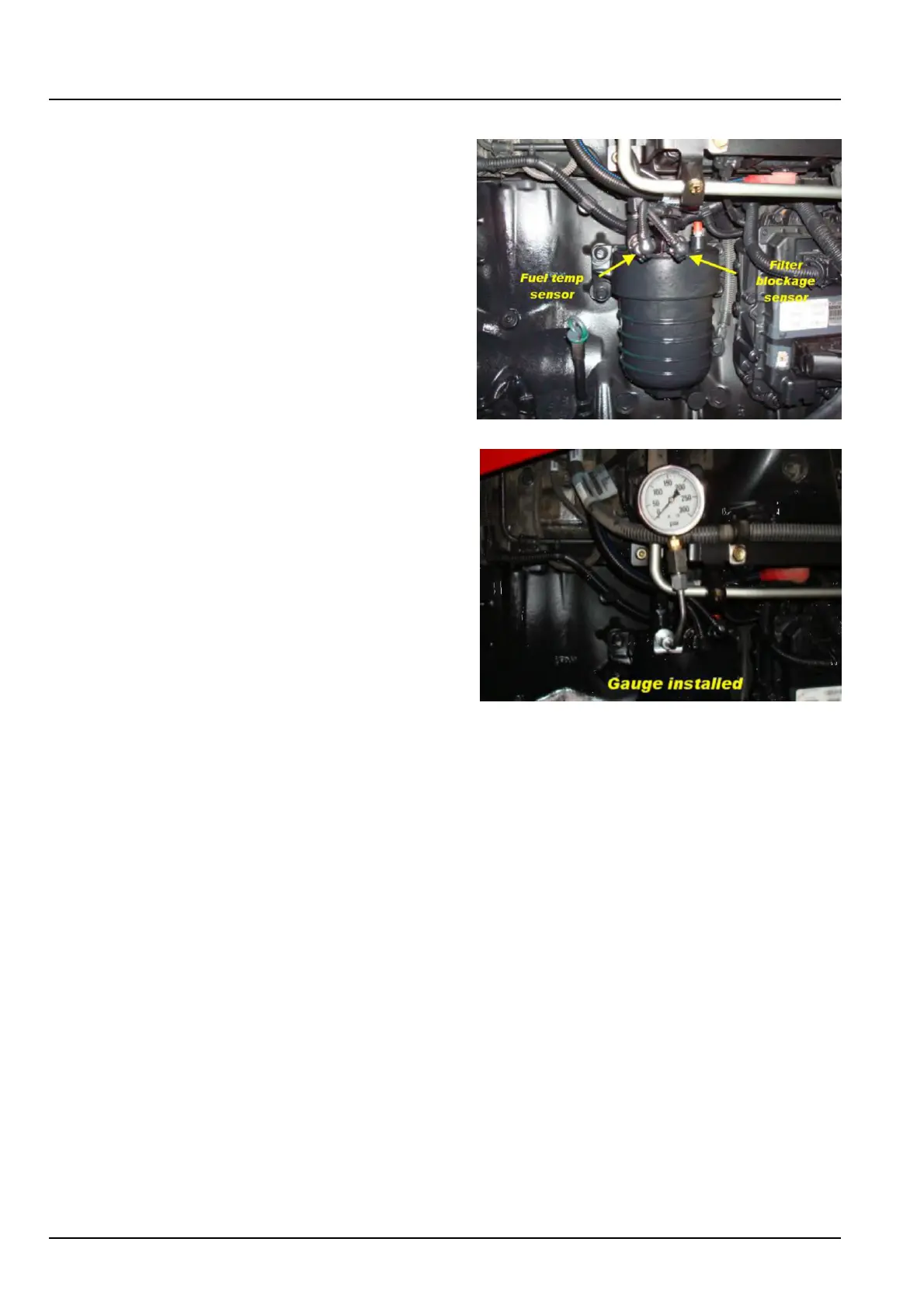

Alwaysusethefueltemperaturesensorportwhencheck-
ingfuelpressure.
Usingthefuelblockagesensorwillopenthedirtysideof
theltertothecleanandcontaminatethefuelsystem.
RAIL15TR01377PA42
Totestthefuelsupplypressureyouwilltoprocurea
MC5315x4x12ttinglocally.
Pressureatlterwithliftpumprunning.0.34bar
(5.00psi)
Pressurewhilecranking1.0bar(14.5psi)
Enginerunning5.0bar(72.5psi)
RAIL15TR01378PA43
5143149922/02/2018
10.1[10.001]/32
