SECTION 58 - DRIVELINES - CHAPTER 3
58-25

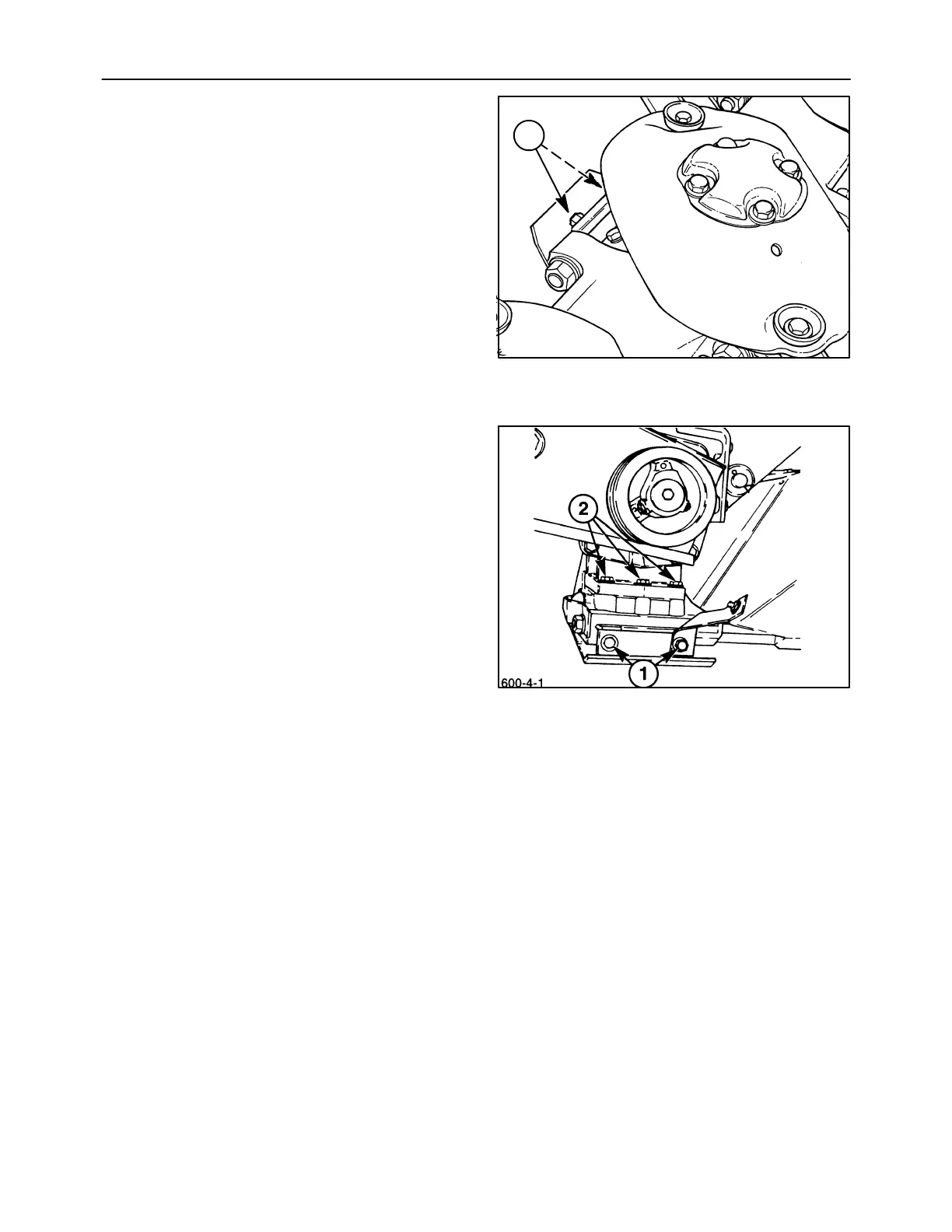

4. Remove the inner skid shoe and shield by
removing the two rear cap screws, 1, Figure 54,
retaining the inner skid shoe to the drive module;
note that the right rear cap screw also retains the
mounting bracket for the rear of the inner shield.
Remove the front carriage bolt, 2, between the
inner skid shoe and the inner shield, and the three
cap screws, 1, holding the skid shoe to the front of
the module. Remove the inner skid shoe, 3, and
inner shield, 4, from unit.
NOTICE: The three bolts holding the front of the skid
shoe to the bevel gearbox also hold the bevel
gearbox to the drive module.
5. Remove the three cap screws, 2, holding the rear
of the bevel gearbox to the cutterbar drive
module.
A3680-30
1
54
55
