SECTION 88 -- OPTIONAL EQUIPMENT -- CHAPTER 1
88-2
Optional parts can be ordered through your New
Holland dealer.

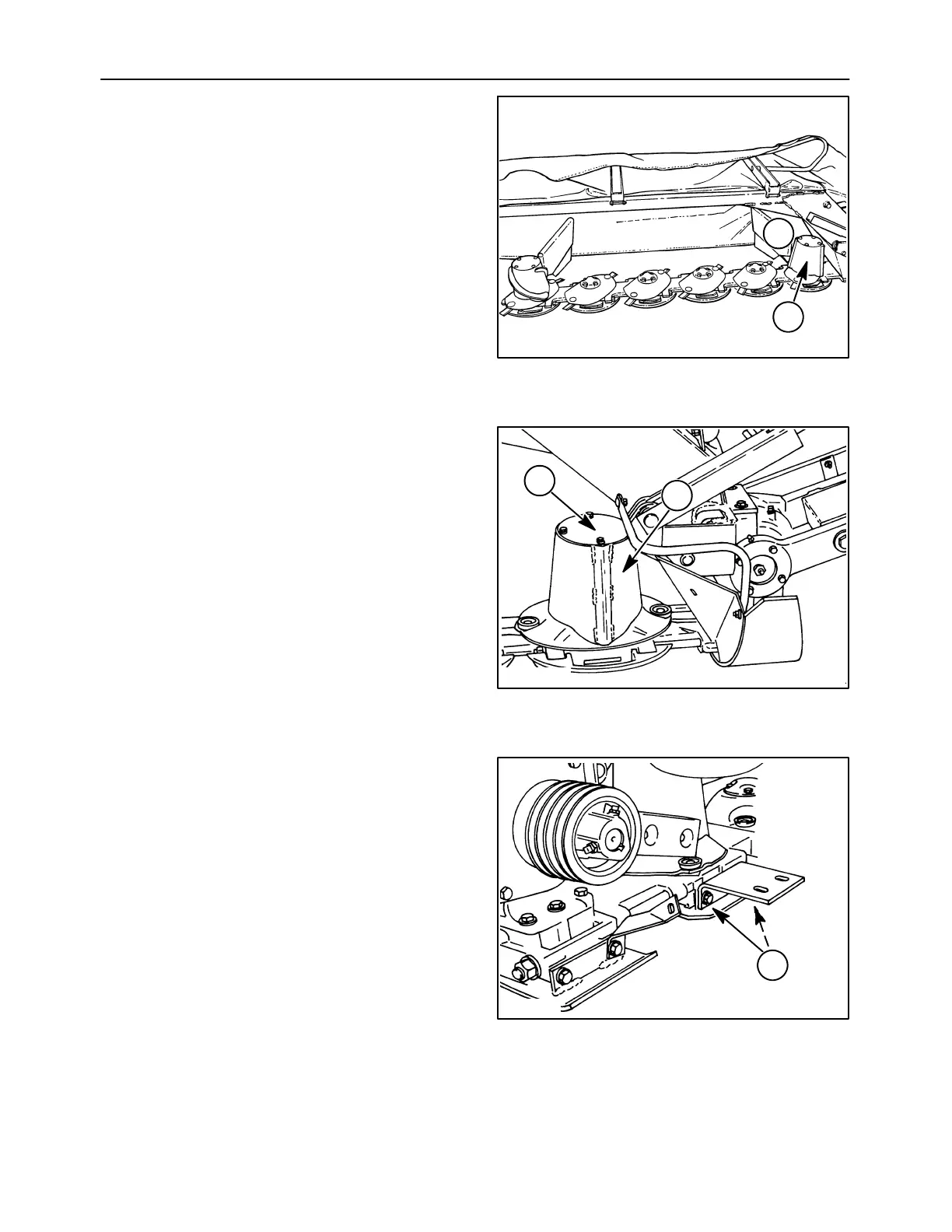

LEFT SWATHBOARD KIT
The left swathboard kit consists of a drum, 1, to install
on the #1 disc, and a swathboard, 2, which mounts
behind the #1 disc and drum. This moves the crop
inward on the left side, providing a certain
“windrowing” effect, and may make it possible for the
tractor to straddle the cut crop. The windrow size is
not adjustable.
To install the left swathboard kit, remove the cap from
the top of the #1 disc by removing the four 1/2 inch x 1
inch cap screws and cupped lock washers. Install
drum, 1, using four 1/2 inch x 1-1/4 inch cap screws
and hardened washers through the drum, disc and
hub. Torque the retaining bolts to 113 N·m (83 lb ft).
Mount top cover, 2, on top of the drum using four 3/8
inch x 3/4 inch cap screws and lock washers.
NOTICE: Use of incorrect disc retaining hardware
may cause cutter bar lockup and potential damage,
or may prevent proper retention of discs.
The swathboard mount plate is shipped with the
mower, and is not included in the left swathboard kit.
If not on the mower, it will need to be purchased
separately and installed.
Remove the two 1/2 inch x 1-1/4 inch cap screws and
cupped lock washers, 1, that attach the skid shoe to
the module. Install the mount plate as shown, and
secure the mount plate and skid shoe to the module
using two 1/2 inch x 1-1/2 inch cap screws and
cupped lock washers at 1.
NOTICE: Use of incorrect length cap screws may
cause disc module damage, or may prevent proper
retention of skid shoe and mount.
A3680-27r
2
1
1
A4121-15
1
2
2
A3971-5
1
3
