SECTION 88 -- OPTIONAL EQUIPMENT -- CHAPTER 1
88-4

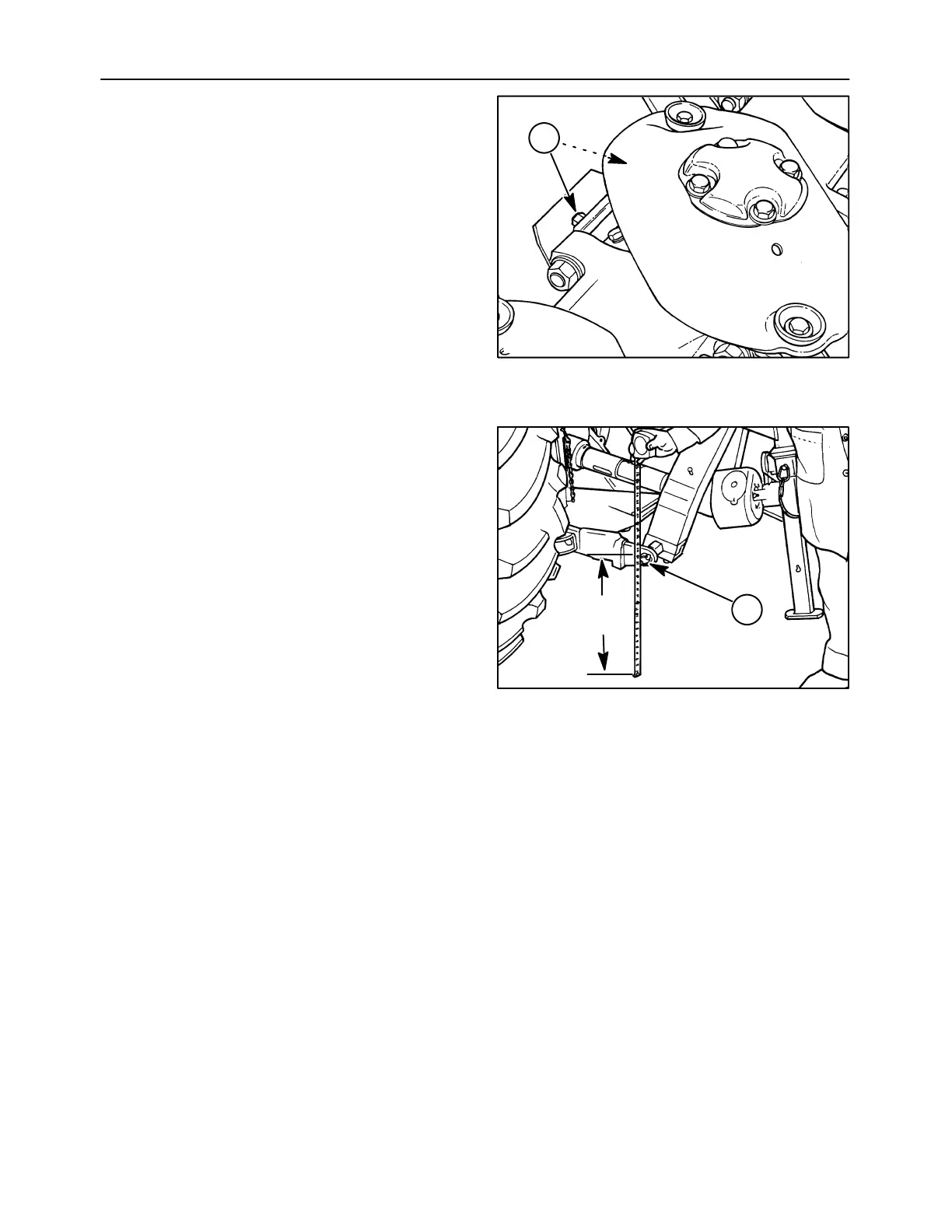

To install the skid shoes, remove the standard skid
shoes by removing the two 1/2 inch x 1-1/4 inch cap
screws, 1, and cupped lock washers at the back of
each disc module. Install the high skid shoe by
inserting the front edge into the gap in the rock guard,
and lift the skid shoe up to align the bolt
holes. Reinstall the cap screws and torque to 113
N·m (83 lb ft).
NOTICE: Longer 1/2 inch x 1-1/2 inch cap screws are
used to retain the swathboard mounts and skid
shoes to the inner and outer disc modules. Do not mix
up the cap screws, as use of these longer cap screws
at another disc module may cause module damage.
After installing the high stubble kit, readjust the cutter
bar flotation to compensate for the increased cutter
bar height. Readjust the check chains so that the
hitch pins, 1, are as close to (but not less than) 508
mm (20 in) from the ground on Model MD82 and
MD92.
On Model MD72, readjust the check chains so that
the hitch pins, 1, are as close to (but not less than)
660 mm (26 in).
Adjust the flotation spring length to the correct length
as described in “Cutter Bar Flotation” in the
Operation section of this manual.
