SECTION 00 -- GENERAL INFORMATION -- CHAPTER 4
00-6
MD72
BREAKAWAY LINK
Disassembly

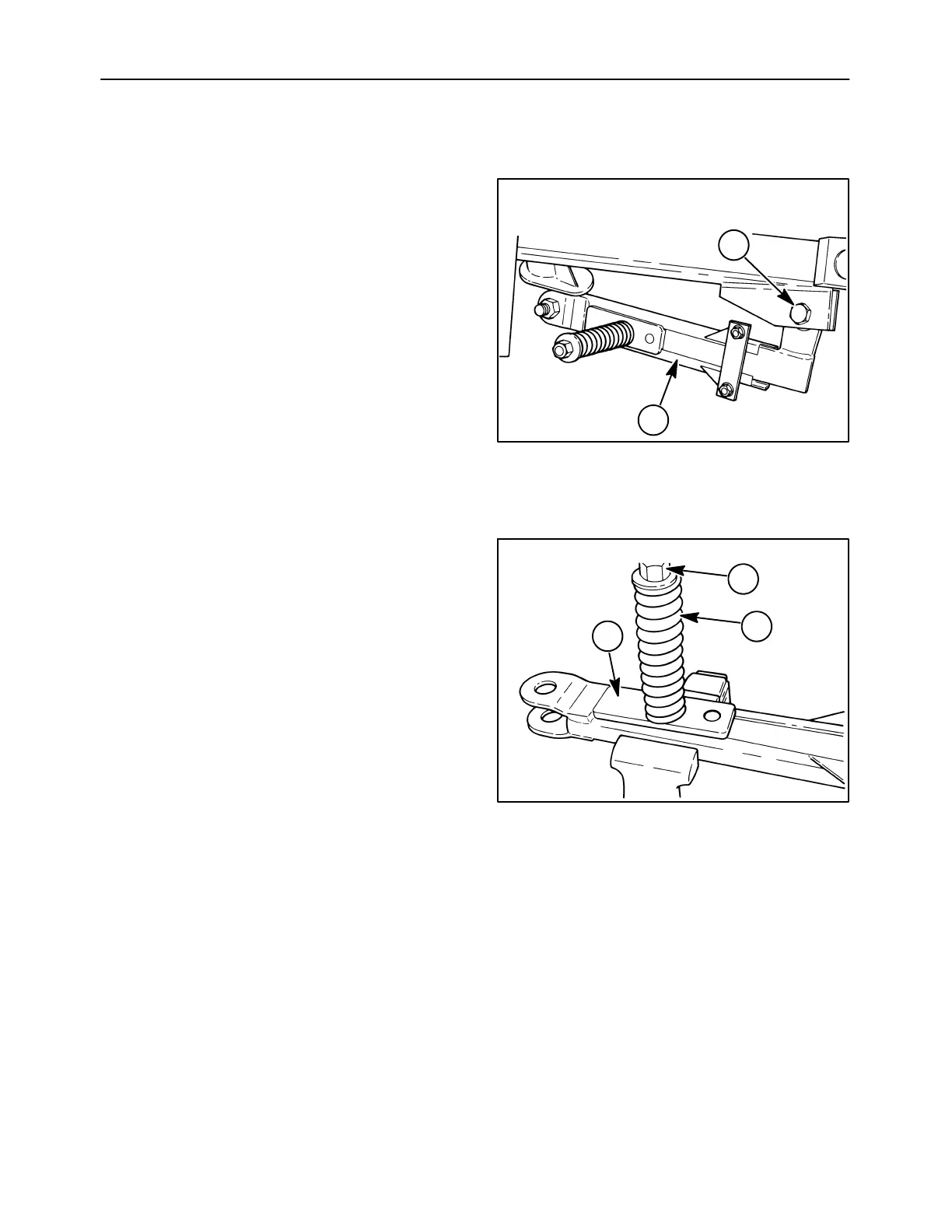

1. Lower the mower onto a flat level surface.
Remove the cap screw and nut, 1, out to remove
the breakaway link assembly, 2, from the mower.
2. Clamp the assembly in a vise with the spring
facing up. Remove the nut, 1, washer and spring,
2; the pawl, 3, may now be lifted off the slide
assembly.
19991324
1
2
10
19991326
1
2
3
11
