SECTION 00 -- GENERAL INFORMATION -- CHAPTER 4
00-9

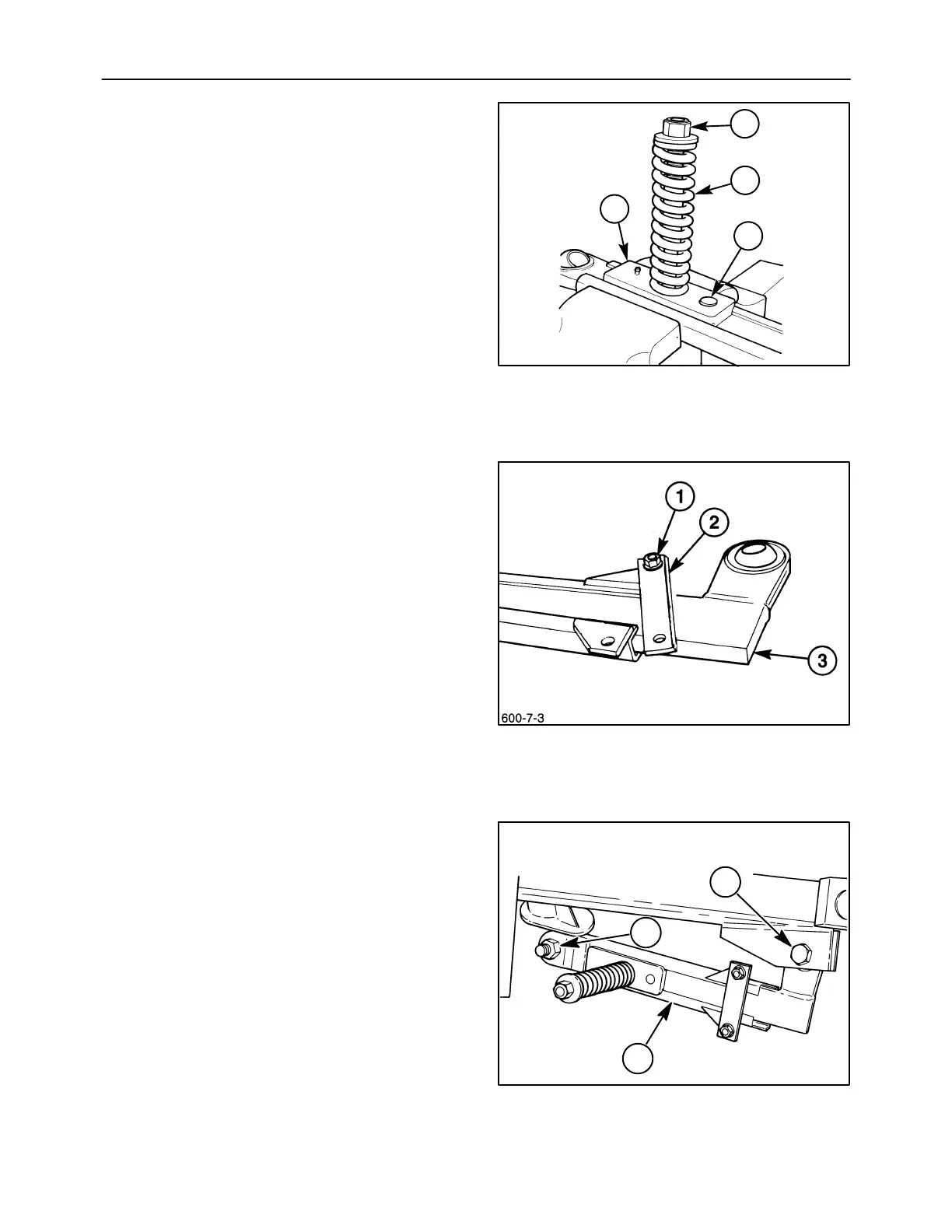

2. Flip the channel over in the vise, and push the
slide assembly into the channel. Lower the pawl,
3, over the spring rod, and seat it over the dog and
the mounting stud, 4. Install the spring, 2, washer
and nylon locknut, 1. Tighten the nut to obtain an
initial spring length of 6-3/4 inch for Model MD72
disc mowers.
3. Install the slide stop, 2, using two bolts and flange
nuts at 1.
4. Install the breakaway link, 2, back on the mower,
with the dogleg end attached to the lift arm, and
the straight end attached to the main frame.
Secure the breakaway link using the bolts, 2 and
3, and locknuts as shown.
600-7-2
1
2
4
3
16
17
19991324
3
2
1
18
