HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
BAIL06CCM088ASA22

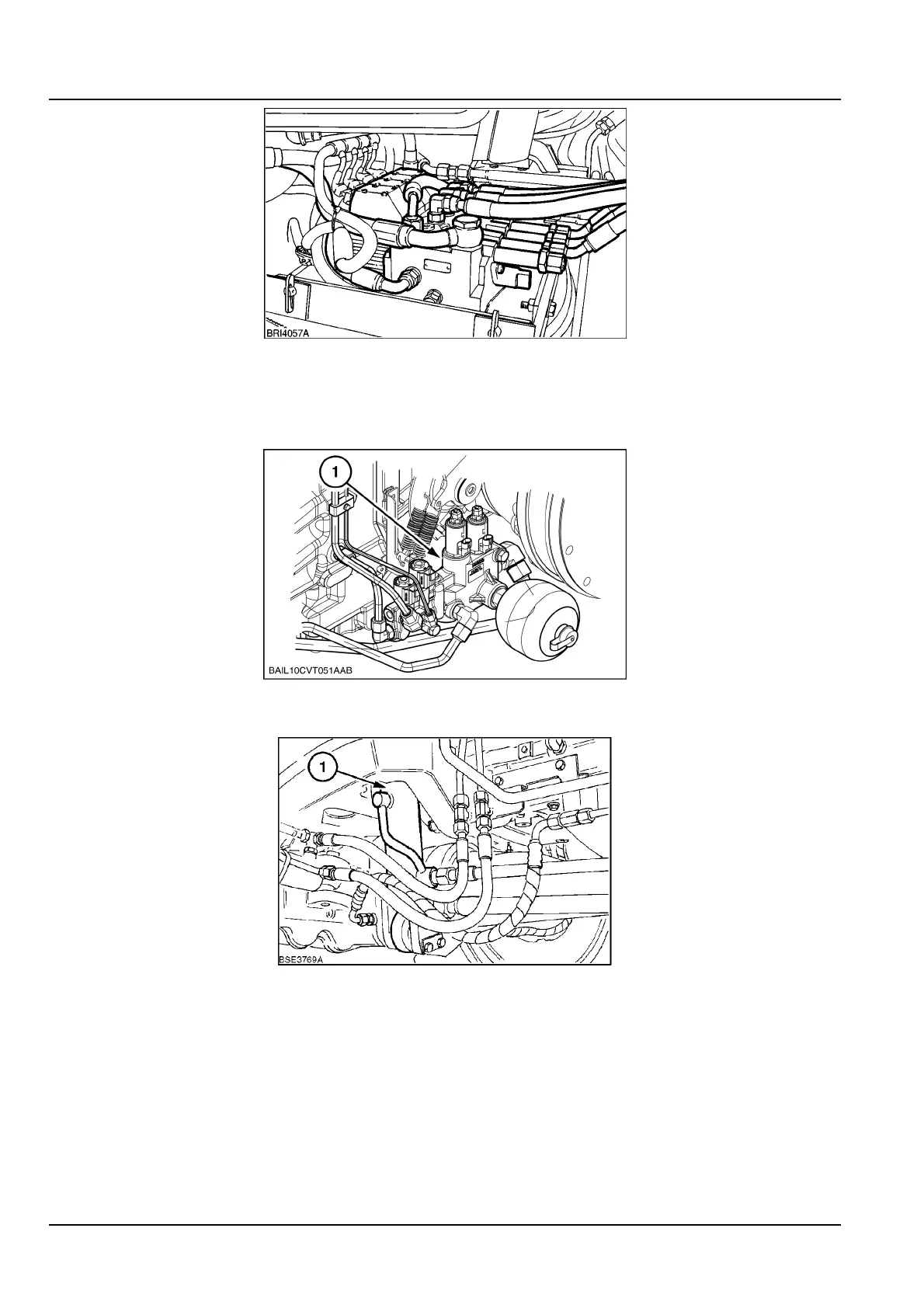

Suspendedfrontaxlecontrolvalve(wheretted)
Thesuspensioncontrolvalveislocatedontherighthandsideofthetractor.Highpressureoilisfedfromthepower
beyondportonthesubplateoftheremotevalvestackandwiththeuseofprocessorcontrolledPWMvalvescontrols
theowofoiltothesuspensioncylinder(RefertoSUSPENSIONHydraulic-Staticdescription(D.40.C))
BAIL10CVT051AAB23
FrontAxleSuspensionCylinder
BSE3769A24
SteeringMotor
Allmodelsuseaxeddisplacementmotor.AlsottedasanoptiononsomemodelsisaTurnAssistvalve(1)which
iscoupledtothesteeringmotor(2).
84479138A06/06/2011
A.10.A/26
