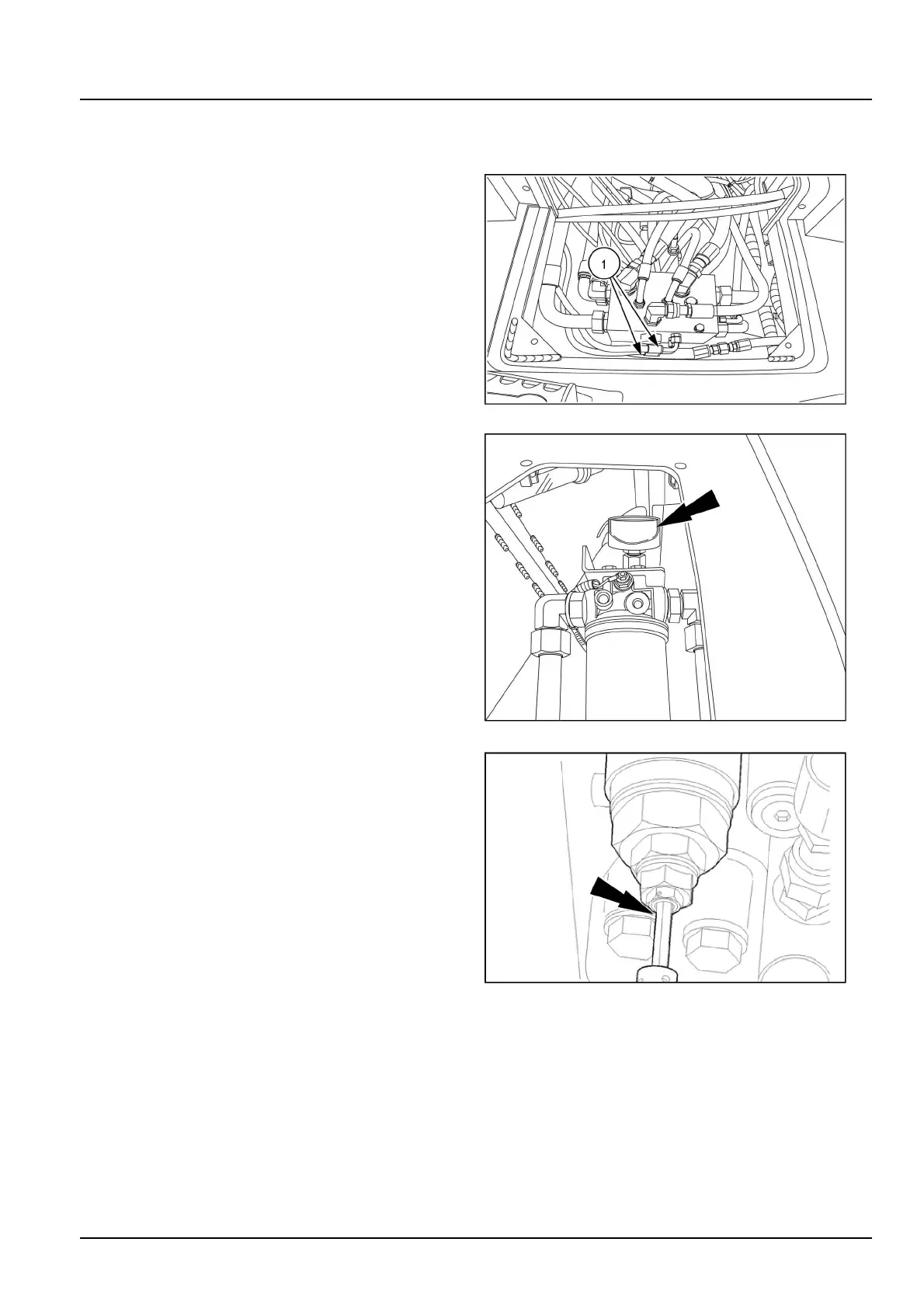

INTRODUCTION
Returningtheunittoservice
1.Disconnectthehandpumpfromthebrakelines.
2.Removetheplugs,andreconnectthelines(1)tothe
brakesolenoid.
RAPH12DOZ0094AA16
3.Removethevacuumpumpandinstallthehydraulic
reservoirbreather.
RAIL12DOZ0372AA17
4.Turntheengagementscrewsclockwisetwoturnson
eachreliefvalve.
RCIL10CWL116AAL18
4790786706/10/2015
