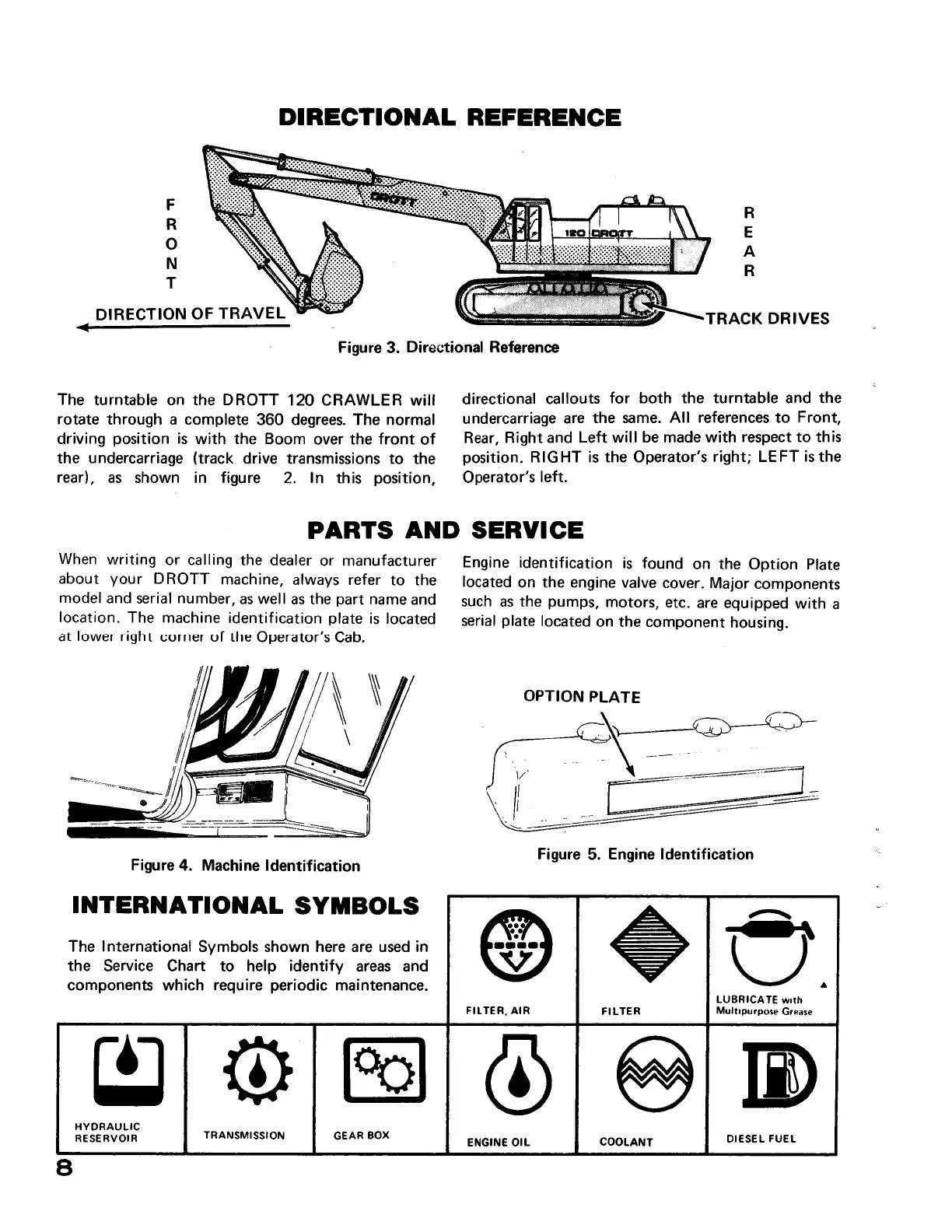

Case 120 - FUEL SPECIFICATIONS; Gasoline Requirements

DIRECTIONAL
REFERENCE
F
R
0
N
T
DIRECTION
OF
TRAVEL
R
E
A
R
TRACK
DRIVES
Figure 3.
Direc.-tional
Reference
The turntable on the
DROTT
120
CRAWLER
will
rotate through a complete 360
degrees.
The normal
driving position
is
with
the Boom over the
front
of
the undercarriage (track drive transmissions
to
the
rear),
as
shown in figure
2.
In
th
is
position,
directional callouts
for
both
the turntable and the
undercarriage
are
the
same.
All
references
to
Front,
Rear, Right and
Left
will
be
made
with
respect
to
this
position.
RIGHT
is
the Operator's right;
LEFT
is
the
Operator's left.
PARTS
AND
SERVICE
When
writing
or calling the dealer or manufacturer
about
your
DROTT
machine, always refer
to
the
model and serial number,
as
well
as
the part name and
location. The machine identification plate
is
located
at lower right corner
of
the Operator's
Cab.
Figure 4. Machine Identification
INTERNATIONAL
SYMBOLS
The International Symbols shown here are
used
in
the
Service Chart
to
help
identify
areas
and
components which require periodic maintenance.
C!J
©
~
HYDRAULIC
RESERVOIR
TRANSMISSION
GEAR BOX
8
Engine identification
is
found on the
Option
Plate
located on the engine valve cover. Major components
such
as
the pumps, motors, etc.
are
equipped
with
a
serial plate located on the component housing.
OPTION PLATE
Figure
5.
Engine
Identification
~
♦
_.......__.
cJ
•
...
LUBRICATE with
FILTER, AIR
FILTER
Multipurpose Grease
©
s
Ii)
ENGINE OIL
COOLANT
DIESEL FUEL
